GB
General notice (liability): the details of this technical documents serve for description. Consents regarding the availability of certain features or
regarding a certain purpose always require a special written agreement.
Page No. 14-GB 5.3 - 5.4 We reserve the right to make technical changes!

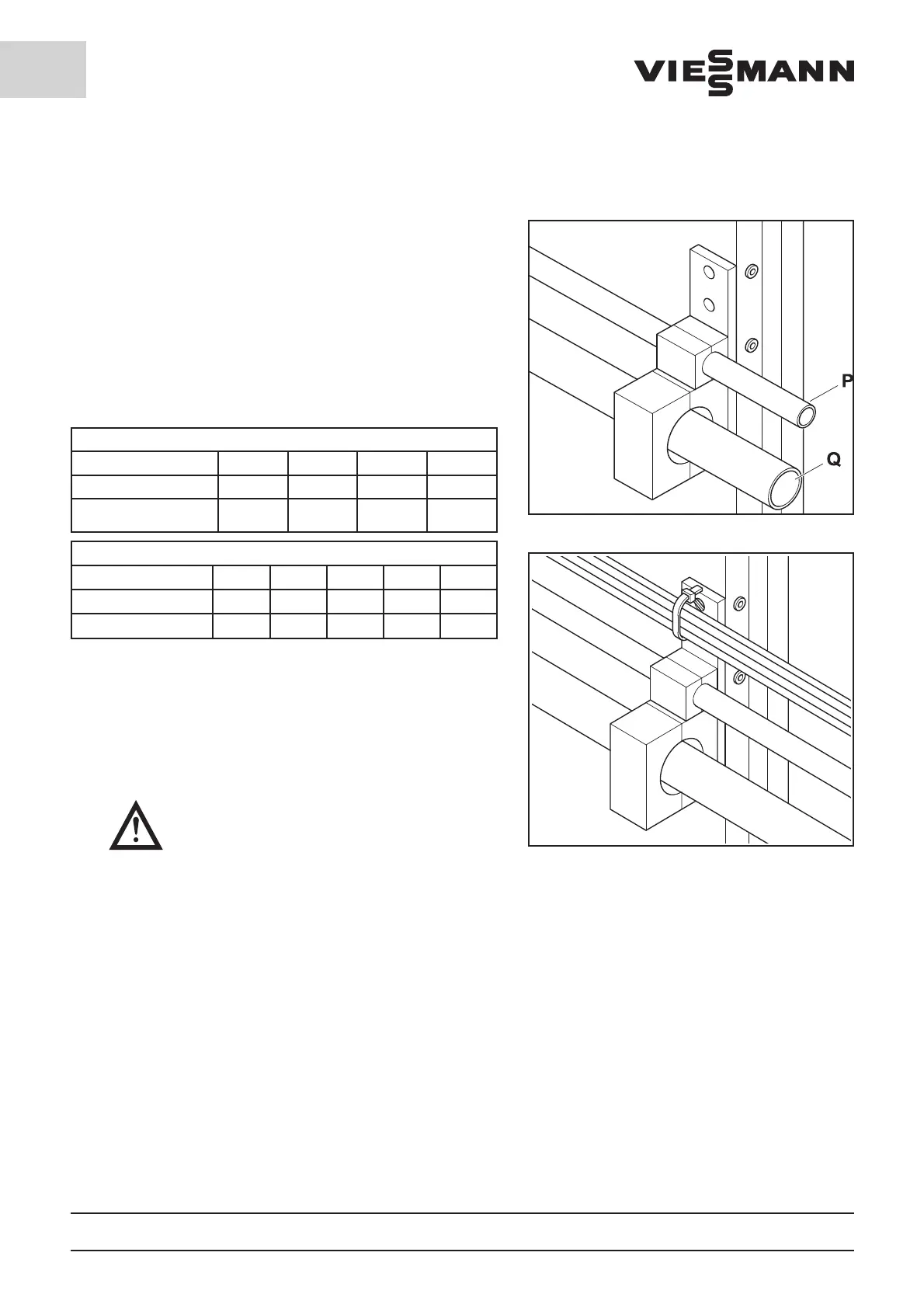

5.3 Layout and installation of the pipelines
Solder the solder connections (P and Q) on the Refrigeration
unit to the solder connections on the evaporator unit by
means of a suitable copper pipeline.
Check all solder points for leak-tightness!
The length of the pipeline must not exceed15 m!
Pipe diameter in mm
Unit CS 900 CS 1300 CS 2000 CS 2800
Fluid line (P) 6 6 6 10
Suction line (Q) 10 12 12 16
5.4 Layout and installation of the electrical lines
For practical purposes, the Layout and installation of the
electrical lines takes place along the pipeline.
Insert the electrical connector plug into the appropriate
plug adapter on the Refrigeration unit circuit board.
Attention!
The electrical power supply should first be connected
at commissioning - Risk of life!
Pipe diameter in mm
Unit FS 900 FS 1200 FS 1400 FS 1800 FS 2400
Fluid line (P) 6 6 10 10 10
Suction line (Q) 12 12 16 16 16
