Page 8 GB 4 - 4.1 Right reserved to make technical changes!

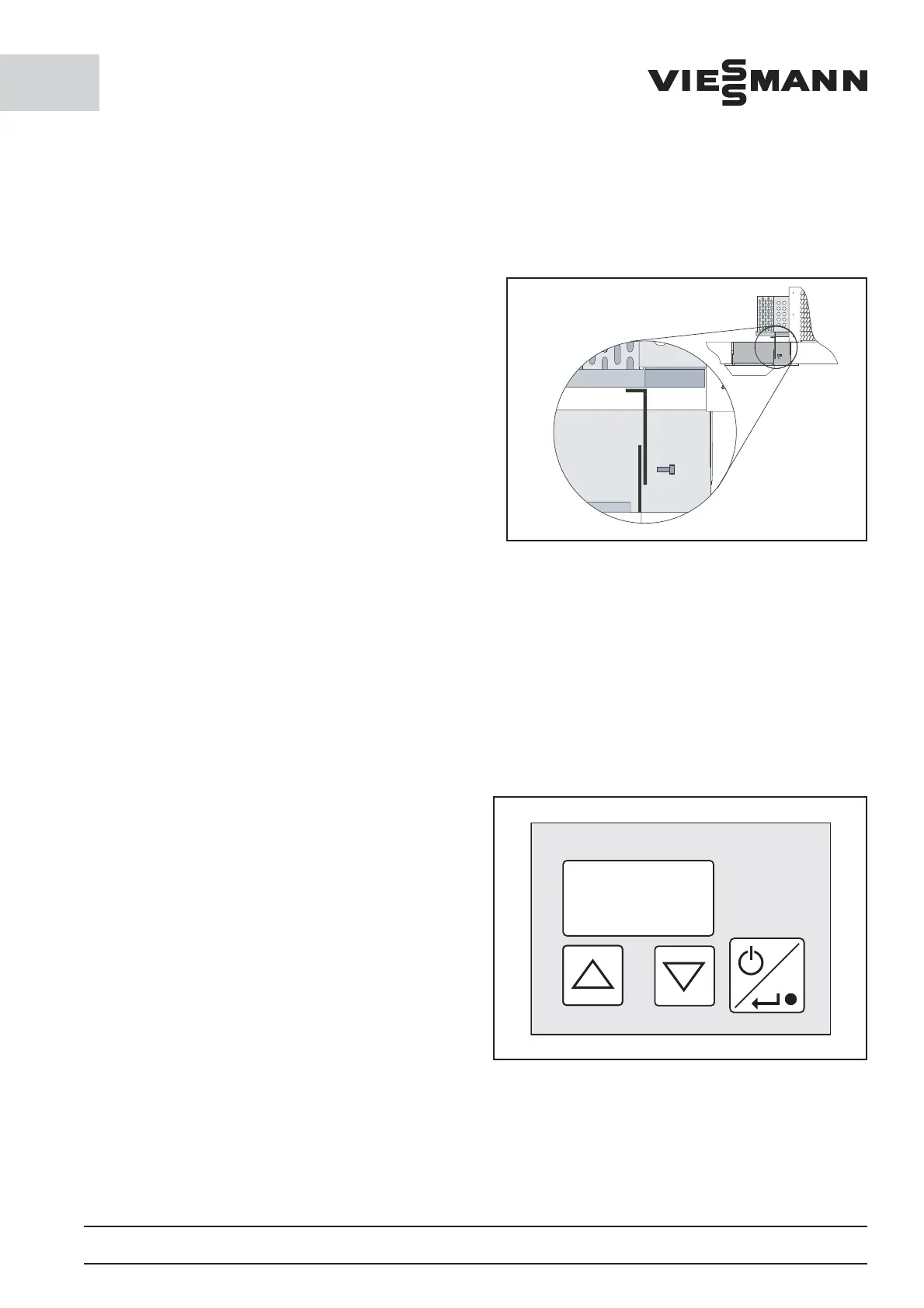

Screw the air guide onto the ventilation box with three M6
screws such that the angled plate is pointing in the
direction of the fan and is lying on the defrost water pan.
Plug in the 4-pole plug of the electrical connection
(located between evaporator and separating wall) in the
socket in the evaporator ventilation unit, and lock in.
4.1 Connections for remote control
If the unit has been ordered with a remote control, mount
this on the proper location and connect to the 9-pin plug
on the front of the unit. Plug in the connector on the front
of the unit. Secure the plug connection with two screws.
3x
