120

Troubleshooting

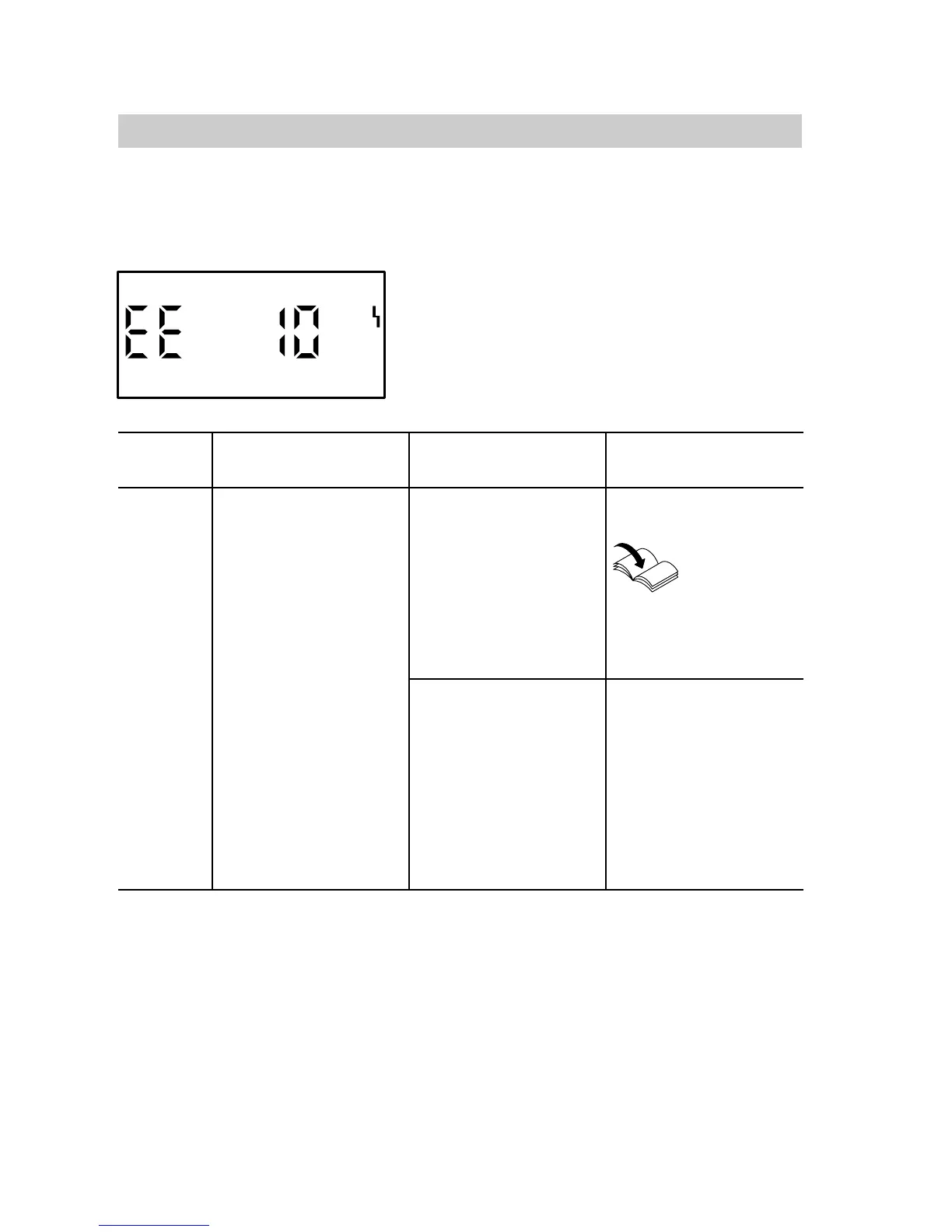

Faults which are displayed at the programming unit (cont.)

LON users fault messages

Only if the control unit is the fault manager (code "79:1").

Fault

code

System

characteristics

Cause Remedy

Control mode A user fault has

occurred, e.g. 12

(Vitotronic050)

Download fault code

to user

Installation

and service

instructions

of the

relevant

control unit

No connection to

the user

 Check coding

(see page99)

 Check connecting

LON cable

 Update user list

(see page99)

 Carrying out a

user check

(see page100)

5862730GB
