130
Components
Components from the parts list (cont.)
Boiler water temperature sensor and cylinder temperature sensor
Connection
See page 66.
Checking sensor
1. Pull plug § or %.
2. Check the sensor resistance at
terminals "1" and "2" or "2" and
"3" (if a second cylinder
temperature sensor has been
connected) of the plug.
3. Compare the test result with the
actual temperature (for scanning,
see page107).
Check the installation and replace
sensor, if necessary, in case of
severe deviation.
Specification
Protection: IP 32
Permiss. ambient
temperature
H during operation
boiler water
temperature sensor: 0 to +130 ºC
cylinder
temperature sensor: 0 to + 190 ºC
H during storage
and transport: 20 to + 170 ºC
5862730GB

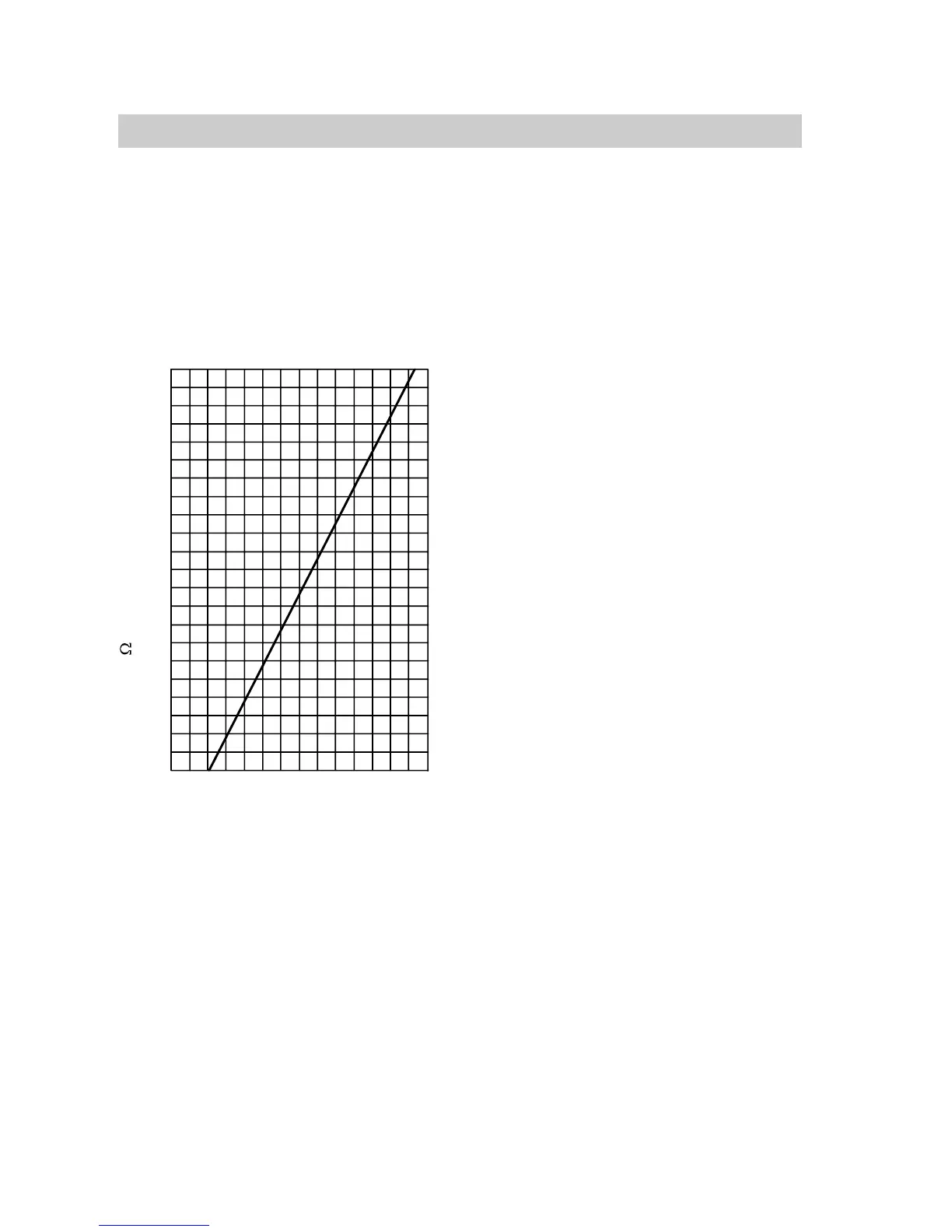

Resistance in
0 20 040 60 80 100 120 140
540
560
580
600
620
640
660
680
700
720
740
760
Boiler water or
cylinder temperature in ºC
