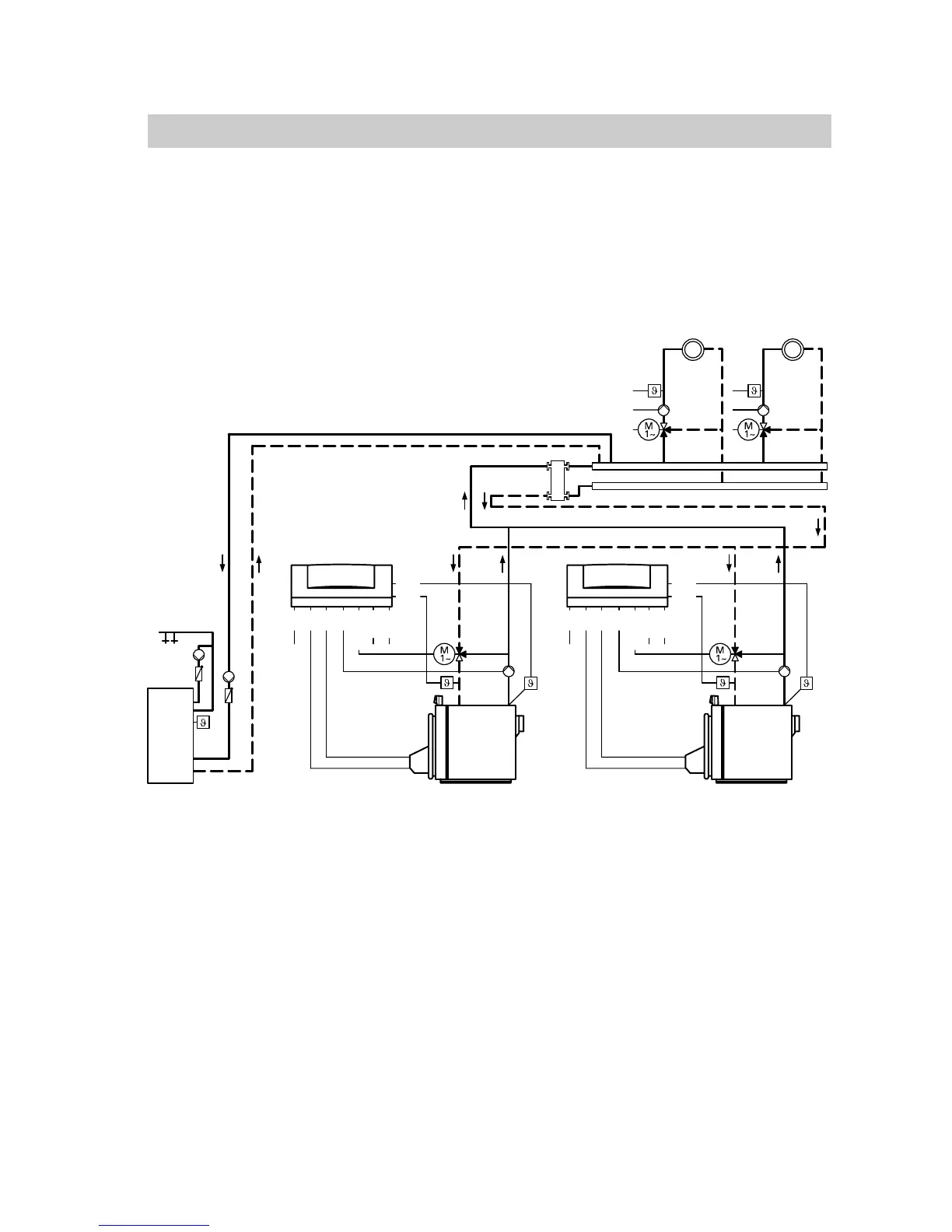

Heating system designs
System version 10
Raising the return temperature with a low loss header and a three−way
mixing valve
Vitogas 100
Vitomax 100, Vitomax 200 and Vitomax 300
Vitoplex 100, type SX1, Vitoplex 200, type SX2, and Vitoplex 300, typeTX3
Vitorond 200
A Boiler with Vitotronic 100
B DHW cylinder
C Heating circuit with mixer
D Low loss header
Plug
§ Boiler water temperature
sensor
aJA Temperature sensor T1
sL Boiler circuit pump
fÖ Mains electrical connection,
230V~/50Hz
fA Burner stage 1
gSA1 Three−way mixing valve
lÖ Burner stage 2/mod.
aVD/aVH External hook−up
(see page 69)
