13
Note
When you call up the "Energy cockpit" for the first
time, you will be notified that the values shown cannot
be used for settling bills with the power supply utility.
■
The "Energy cockpit" is opened once you confirm
this notification with OK. This notification will not
appear again.
■
If you tap Cancel, the "Energy cockpit" will not be
opened. The notification will be shown again next
time.

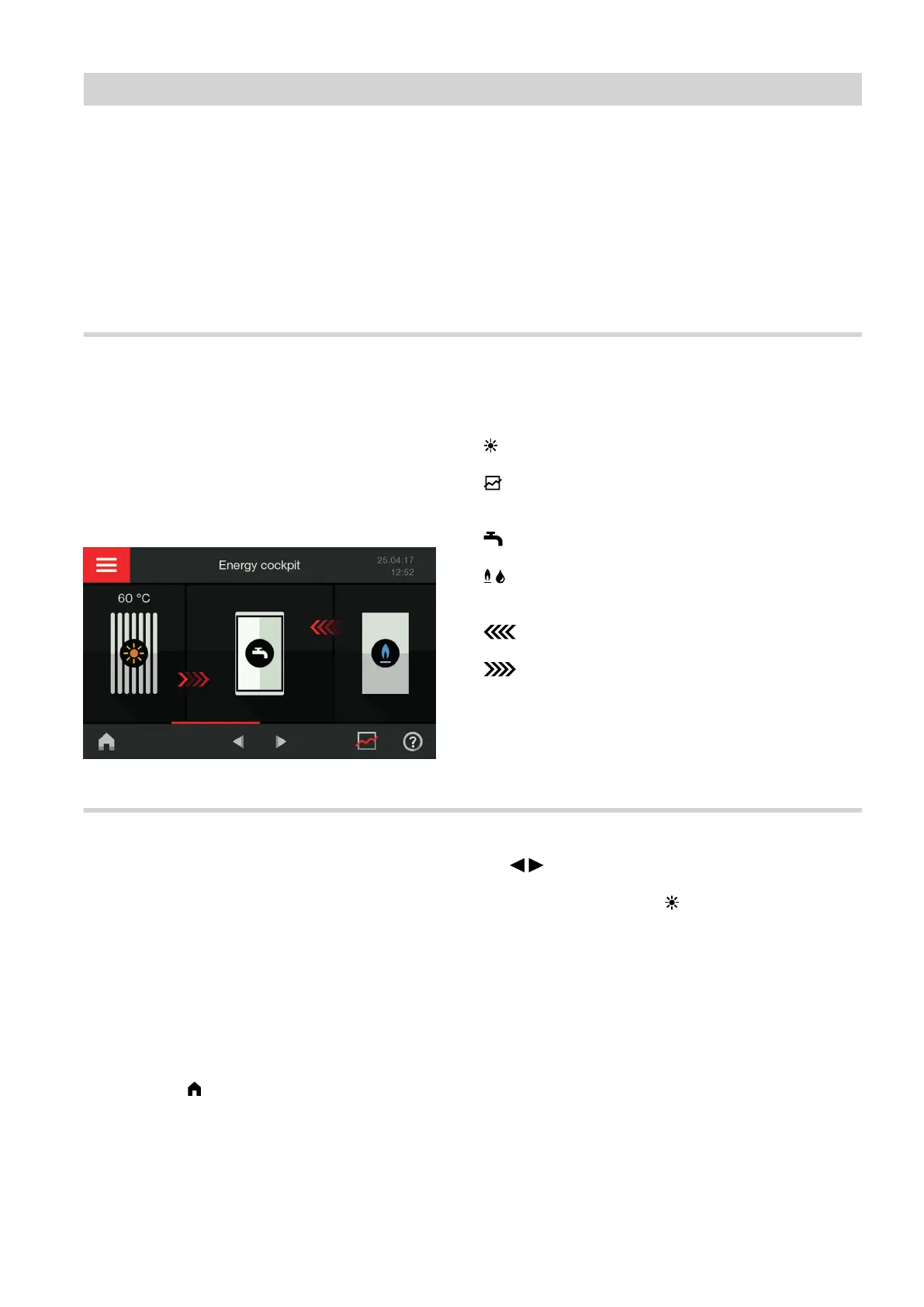

Default display in the "Energy cockpit"
The various components present in the system are
shown as graphics. For information on the energy sta-
tus of these system components, tap the relevant sys-
tem component. See also the following chapters.
Note
The graphics depicting the boiler and the DHW cylin-
der vary according to the products used in the system.
Fig. 2
You can check the following information in the
"Energy cockpit":
60 °C Current solar thermal system temperature
Solar thermal system energy yield:
See page 13
Heating system energy statement in conjunction
with the solar thermal system:
See page 14
DHW cylinder temperatures:
See page 14
/ Energy consumption (gas or oil) and operating
data:
See page 14
Heating of DHW cylinder by heat generator is
active (red and moving)
Heating of DHW cylinder by solar thermal sys-
tem is active (red and moving)
Energy yield from the solar thermal system
You can call up the energy yield from the solar thermal
system for the last 7 days, including the current day.
The energy yield is shown in kilowatt hours "kWh".
Note
This information can only be retrieved in conjunction
with the solar control module, type SM1. When con-
nected to a Vitosolic solar control unit, you can call up
the solar energy yield on this device.
Tap the following on-screen buttons:
1. If required, for the home screen
2. / for the "Energy cockpit"
3. Tap the solar collector
The energy yields for the last 7 days, including the
current day, are shown as a bar for comparison.
4. Tap a day, e.g. "Mo"
The energy yield for the selected day is shown in
"kWh".
Single boiler constant control: Control unit operation
Information in the "Energy cockpit" (cont.)
5798582
