Viessmann Solar-Divicon PS10 - Installing Locking Ring Fittings

6

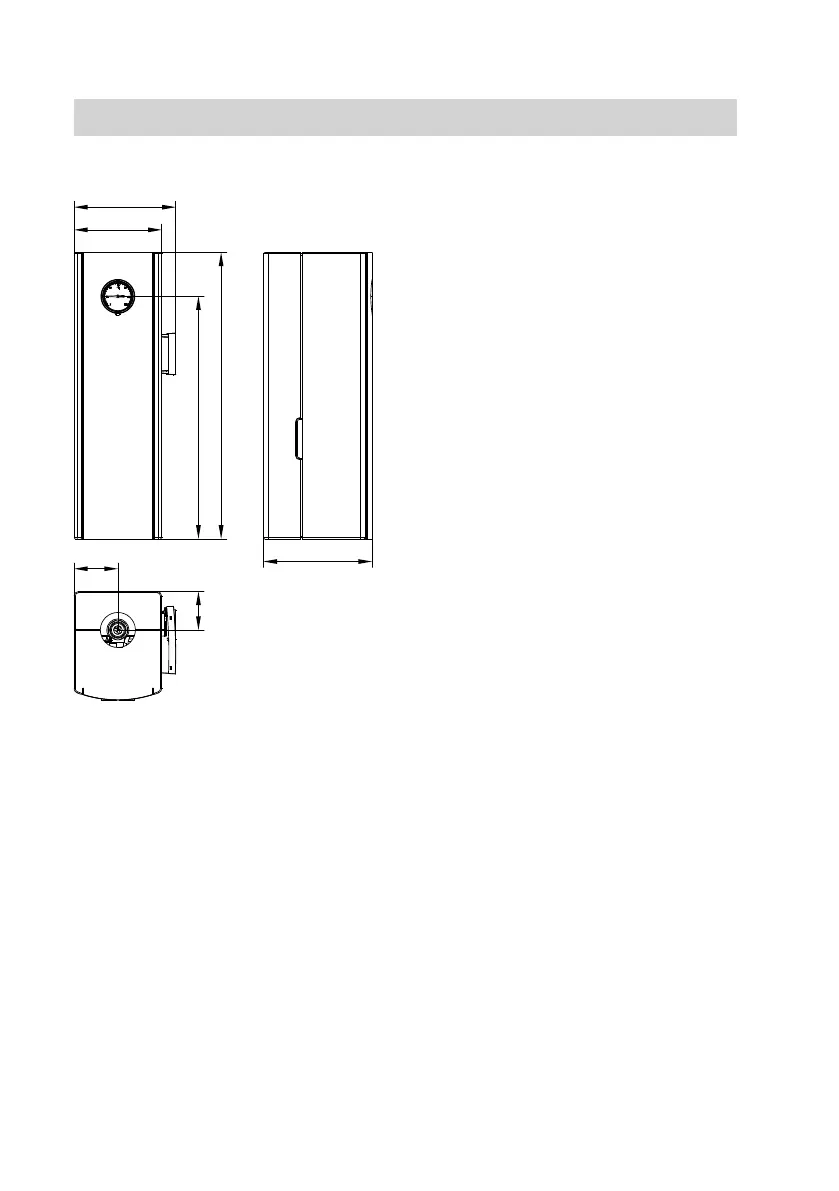

Solar pump assembly
150
174
415
490
186
75
66
Installing the locking ring fittings
■ All pipes must be cut at right angles
and deburred.
■ Insert support sleeves into pipework.
■ Push the union nut and the locking ring
onto the pipe and lightly lubricate the
threads with oil.
■ Push the pipe into the locking ring fit-
ting as far as it will go.
■ Initially tighten union nut by hand, then
tighten with an open-ended spanner
by a further ¾ revolution.
■ Never fit annealed copper pipes onto
the locking ring fittings.
Installation information (cont.)
5773 841 GB
