2
■ Pre-assembled and sealed valve and
safety assembly
■ Flow rate indicator (see page 4) for
checking the solar thermal system dur-
ing commissioning and operation
■ Ball valve with integrated check valve
in flow and return lines
■ Drain & fill valve
■ Air separator (see page 4)
■ Shut-off valve (adjusting screw above
the flow rate indicator, see page 4)
■ Solar control unit, subject to version
E
A
E
D
C
P
N
K
F
H
F
M
C
G
E
L
C
G
K
F
H
C
G
E
L
B
VL RL
C
O
O

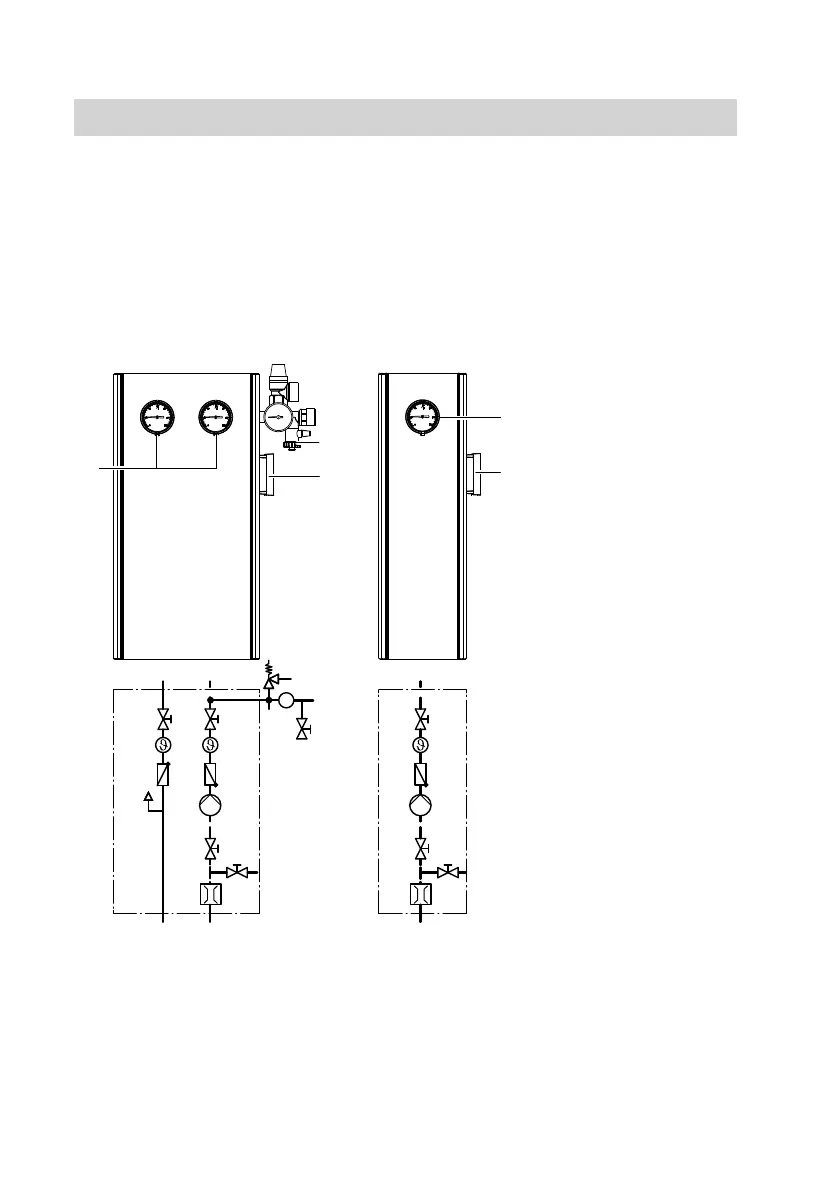

A
Solar-Divicon
B
Solar pump assembly
C
Thermometer
D
Safety assembly
E
Circulation pump
F
Shut-off valves
G
Non-return valves
H
Shut-off valve
K
Drain valve
L
Flow rate indicator
M
Air separator
N
Fill valve
Components
5773 841 GB
