3
O
Expansion vessel connection
RL Return
VL Flow

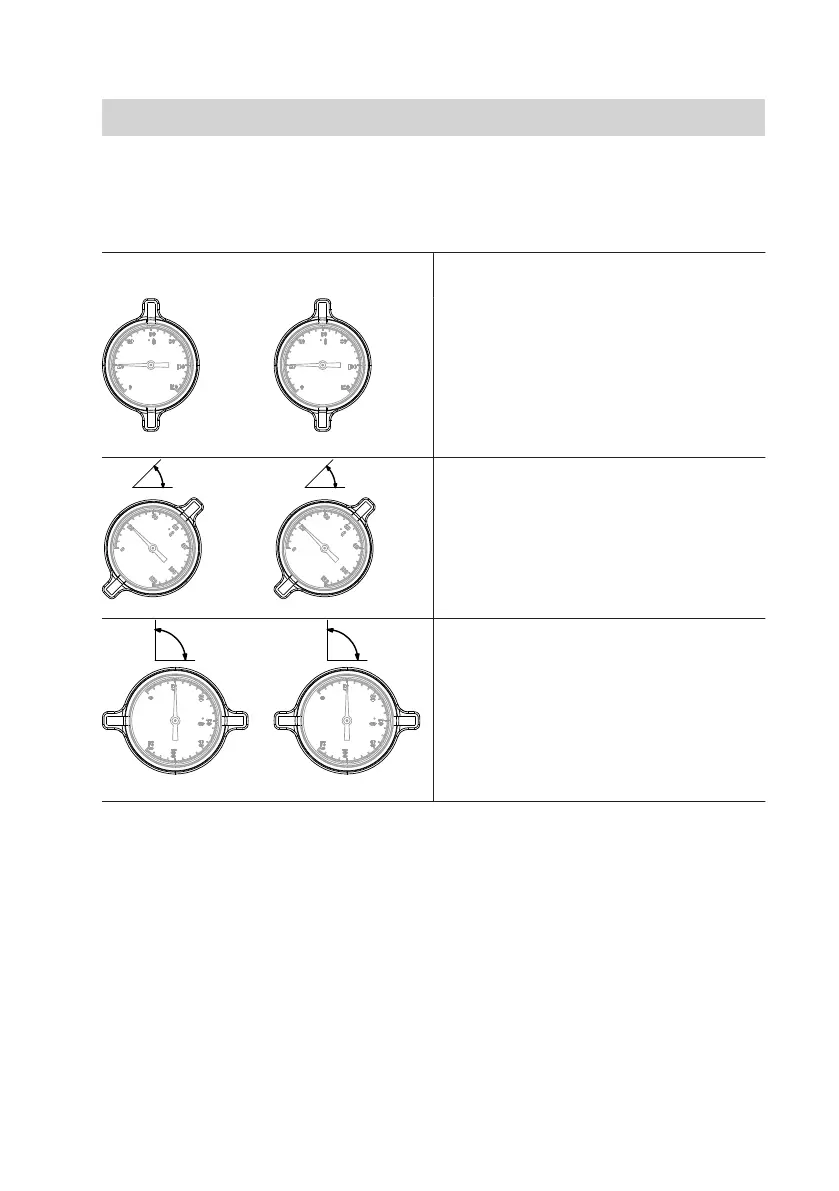

Function of the shut-off and non-return valves
Left: Flow line
Right: Return line
Operating position
Vertical position
45° 45°
Filling/draining
Rotated clockwise by 45°
90° 90°
Closed
Rotated clockwise by 90°
Components (cont.)
5773 841 GB
