Viessmann VITOCELL 100-W Installation Instructions

6

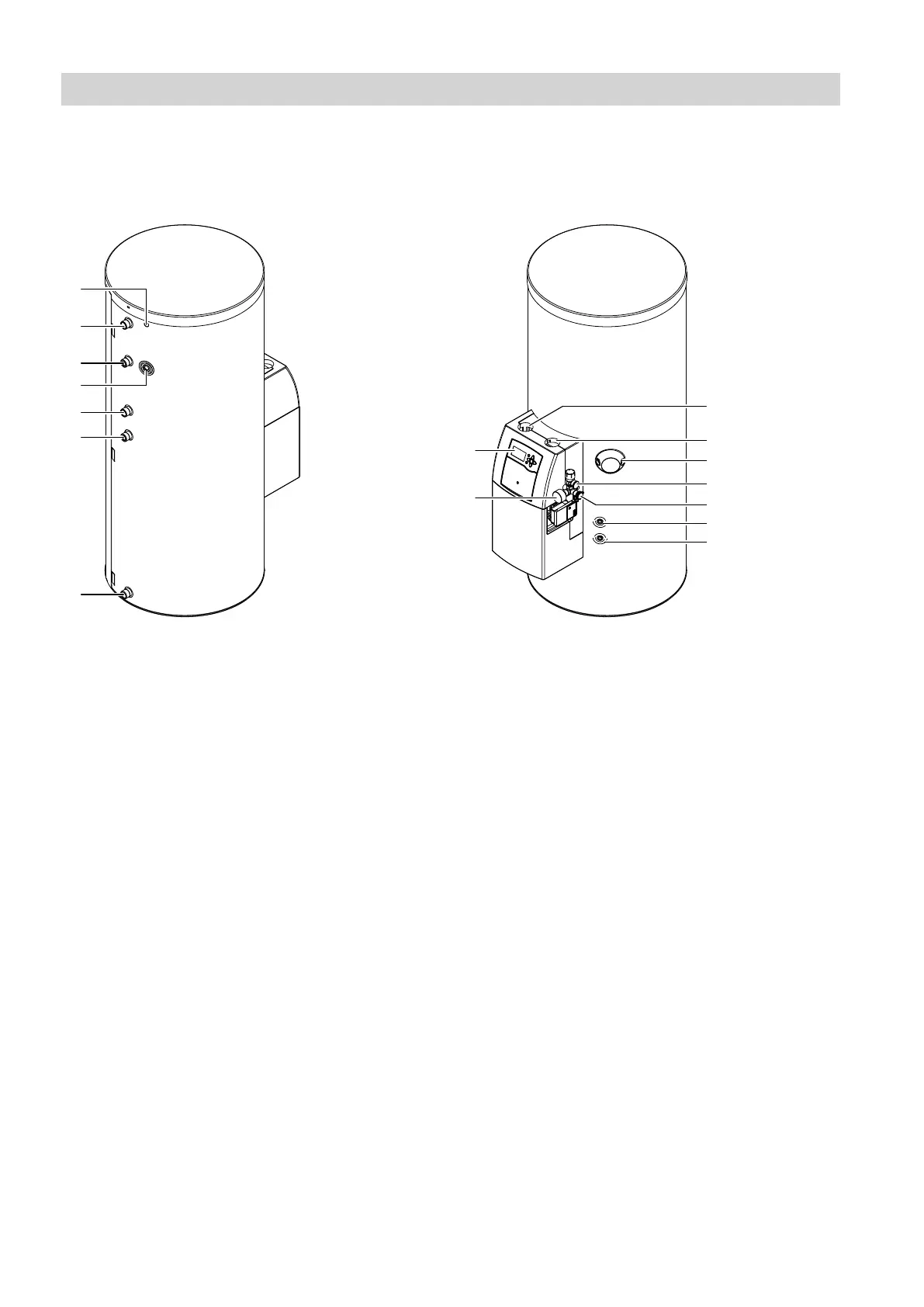

Connections with Vitosolic 100
Rear view
B
C
D
E
F
G
A
Fig. 1
Front view
P
H
K
L
M
N
O
O
R
Fig. 2
A
Cable entry for power cable and KM-BUS/PlusBus
cable to the control unit
B
DHW with high limit safety cut-out
C
Heating water flow
D
Sensor well
E
DHW circulation
F
Heating water return
G
Cold water
H
Heating water flow, solar
K
Heating water return, solar
L
Female connection for immersion heater EHE
M
Discharge pipe
N
Solar expansion vessel connection
O
Female thread for solar expansion vessel bracket
P
Vitosolic 100
R
Safety assembly with
■
Safety valve
■
Pressure gauge
■
Fill valve
■
Solar expansion vessel connection
