Viessmann VITOCELL 100-W Installation Instructions

7

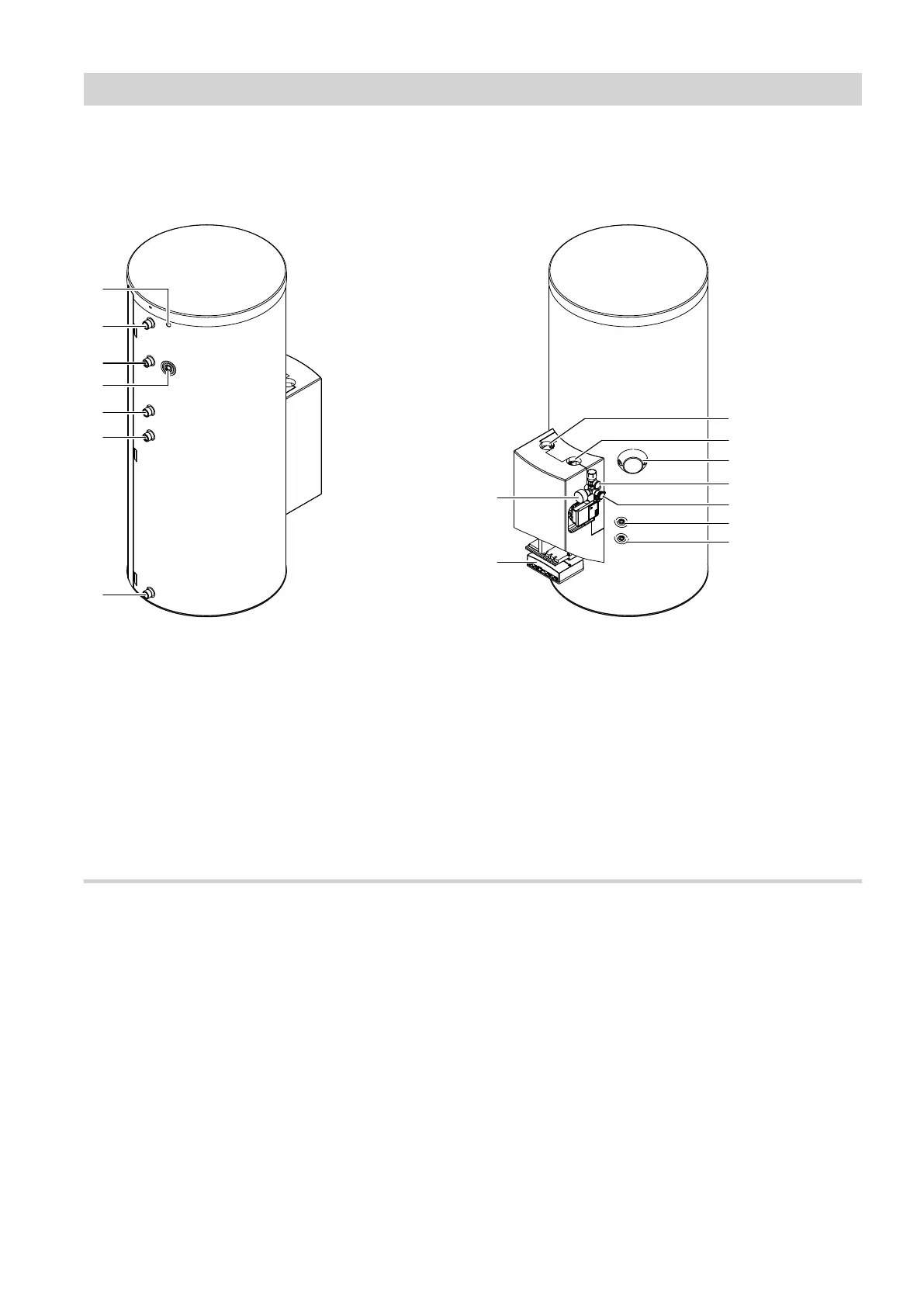

Connections with electronics module SDIO/SM1A
Rear view
B
C
D
E
F
G
A
Fig. 3
Front view
H
K
L
M
N
O
O
R
P
Fig. 4
A
Cable entry for power cable and KM-BUS/PlusBus
cable to the control unit
B
DHW with high limit safety cut-out
C
Heating water flow
D
Sensor well
E
DHW circulation
F
Heating water return
G
Cold water
H
Heating water flow, solar
K
Heating water return, solar
L
Female connection for immersion heater EHE
M
Discharge pipe
N
Solar expansion vessel connection
O
Female thread for solar expansion vessel bracket
P
SDIO/SM1A electronics module
R
Safety assembly with
■
Safety valve
■
Pressure gauge
■
Fill valve
■
Solar expansion vessel connection
N
Before installation
To prevent damage to the thermal insulation and the
Solar-Divicon, both can be removed prior to transpor-
tation to the installation site.
Note
Ensure that no fleece remnants enter the DHW cylin-
der through the cylinder connections.
Preparing for installation (cont.)
5838641
