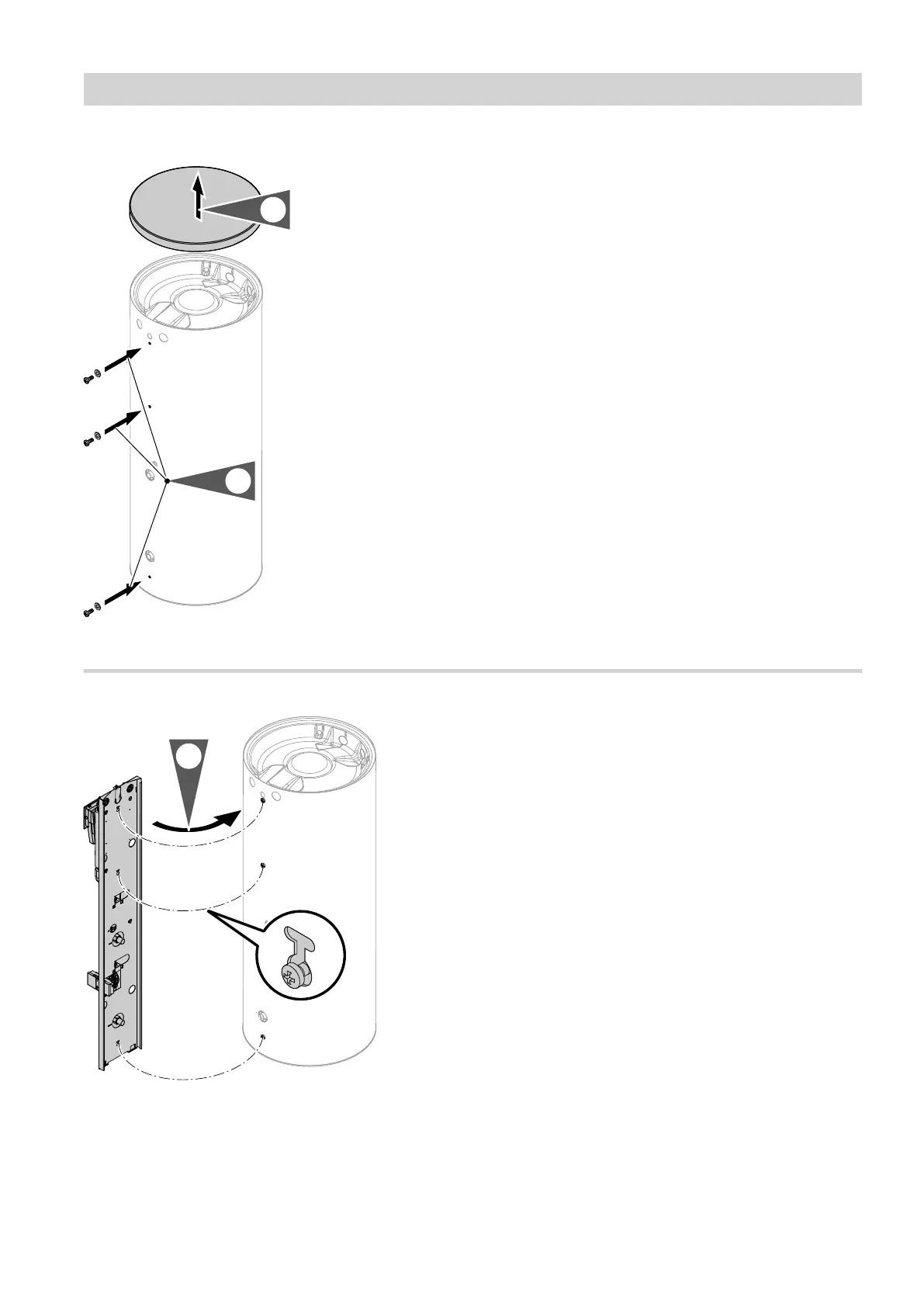

Solar-Set fixings
2.
1.
Fig. 2
Insert the supplied screws together with washers
(h = 3 mm) approx. half way into the DHW cylinder.
Fitting the Solar-Set
3x
1.
Fig. 3
1. Hook the base support for the Solar-Set onto the 3
screws.
2. Tighten all screws with a torque of 10 Nm.
3. Remove the foam transport packing and cable ties
for securing the pump and pipes from within the
Solar-Set.
4. Bend down the two sheet metal transport brackets.
5. Align the solar lines with the pipe clips.
Solar-Set
