Viessmann Vitodens 100-E - Flexible Flue Installation

26

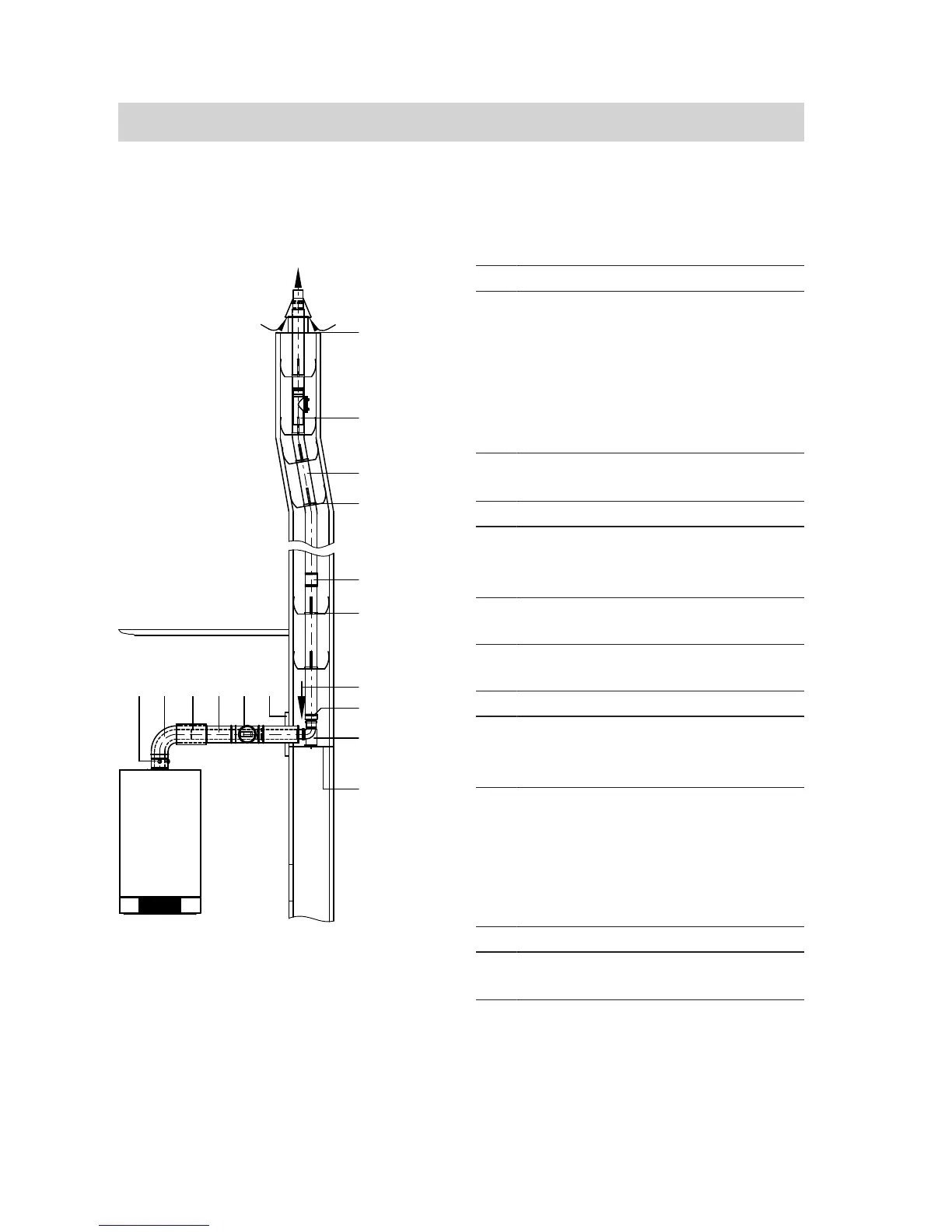

Flexible flue
Room sealed operation
68qP91 7
2
A
2
5
2
4
2
3
2
2
B
A
C
C
A
Supply air
B
Flue gas
C
Inspection port
1
Boiler flue connection
2
Standard shaft pack (flexible)
Comprising:
■ Support bend
■ Connection pieces
■ Support rail
■ Shaft cover
■ Spacers (5 pce)
3
Inspection piece, straight
(for installation in the flexible flue)
4
Flexible flue
5
Connection piece
for connecting residual lengths of
the flexible flue
Pipe lowering attachment
with 20 m rope
6
Balanced flue inspection piece,
straight
7
Wall bezel
8
Balanced flue pipe
1 m long
0.5 m long
9
Balanced flue bend
87° or 2 x 45°
or
Balanced flue inspection tee
or
Balanced flue inspection bend
qP
Balanced flue slide coupling
Balanced flue adaptor
7
60/100 mm to
7
80/125 mm
Routing through a shaft
(cont.)
5780 223 GB
