Viessmann Vitodens 100-E - Maximum Flue Length

42
a
1
3
4
5
7
B
A
2
6
A
Supply air
B
Flue gas
Rated heating out-
put
kW ≤50 ≥50
a (min.) mm 400 1000
1
Boiler flue connection
2
Balanced flue roof outlet
3
Pipe outlets for Klöber roof
tiles
Provide a suitable Klöber roof tile
on site.
or
Universal roof tile
or
Flat roof collar
4
Balanced flue inspection piece,
straight
5
Balanced flue slide coupling
6
Balanced flue bend
87° or 2 x 45°
Balanced flue pipe
1 m long
0.5 m long
7
Fixing clamp
Balanced flue adaptor
7
60/100 mm to
7
80/125 mm
Maximum flue length
Vitodens 100-W, type WB1B: 10 m
Vitodens 100-W, type B1HA and B1KA, Vitodens 111-W
Rated heating output kW 19 26.0 30.0 35.0
System size 60/100 m 10 10 8 8
System size 80/125 m 13 13 11 11

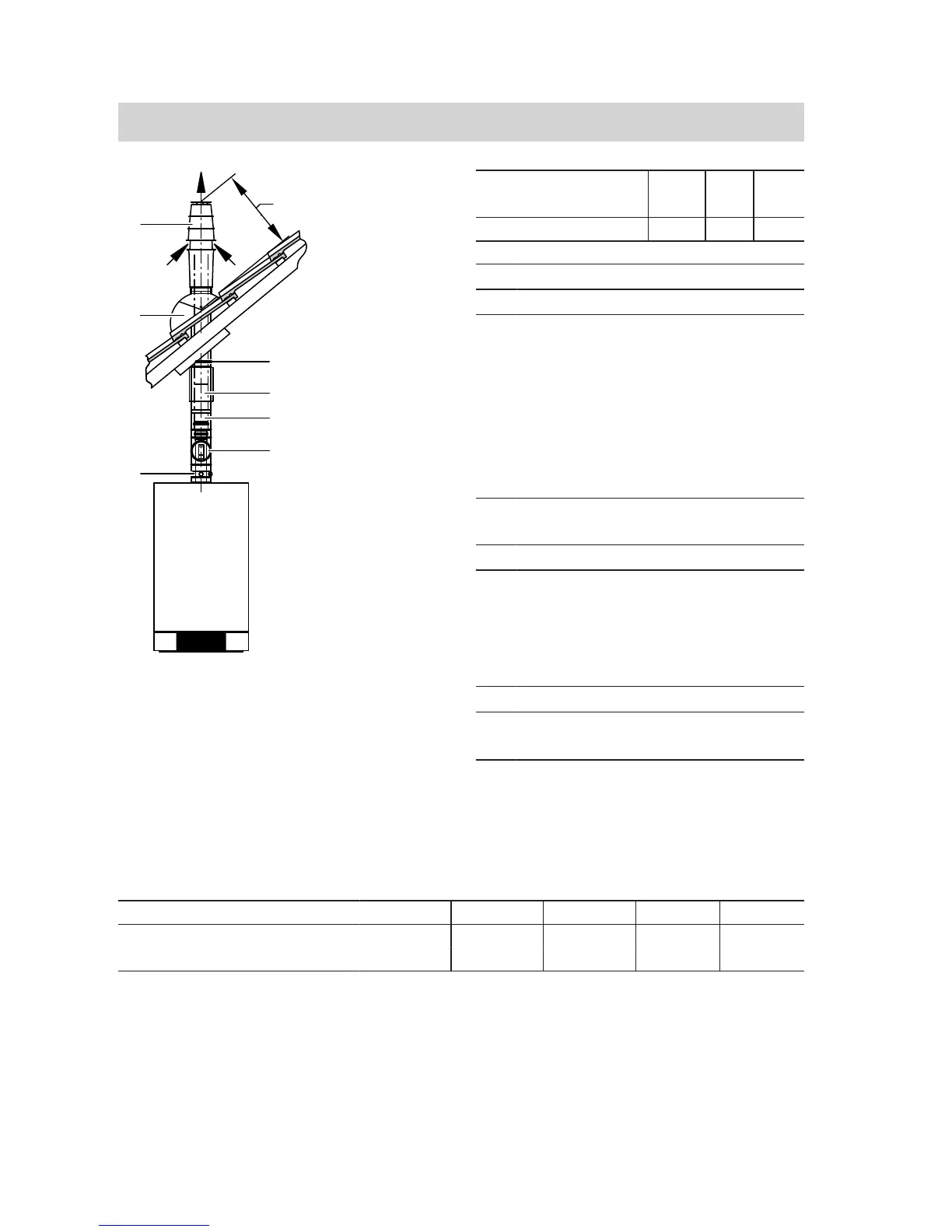

Vertical outlet for pitched or flat roofs
(cont.)
5780 223 GB
