Viessmann Vitodens 100 - Preparation for Assembly; Appliance Dimensions and Clearances

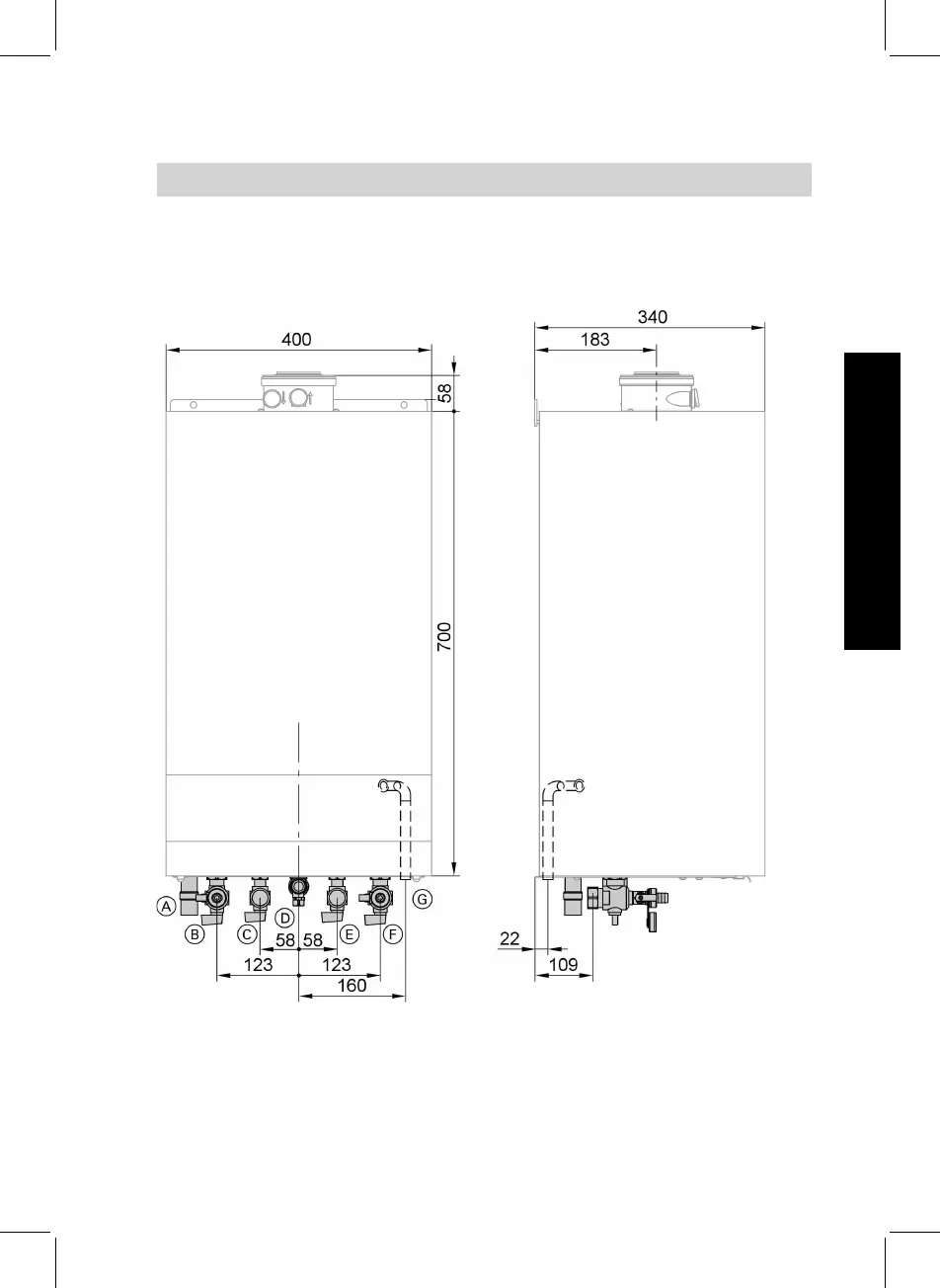

Overall Appliance Dimensions
Combi boiler
A Condensate drain: Plastic pipe
722 mm
B Heating flow: 722 mm
C DHW: 715 mm
D Gas connection: Rp ½
E Cold water: 715 mm
F Heating return: 722 mm
G Safety valve drain: 715 mm
