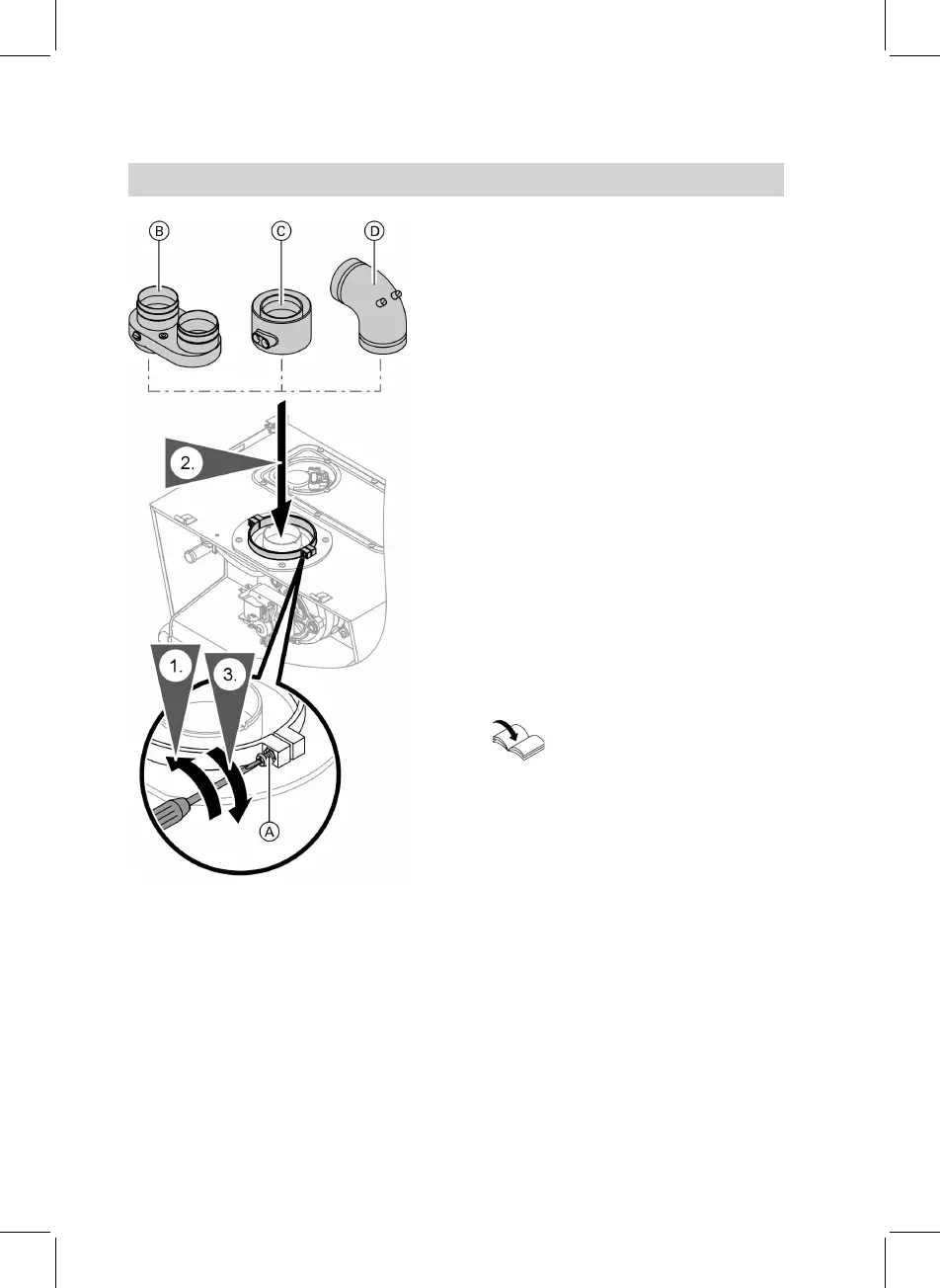

A Tensioning screws on the boiler
connection flange
B Parallel boiler flue connection for
the vertical and horizontal instal-
lation of the flue gas systems 80/
80
C Coaxial boiler flue connection for
the vertical installation of the flue
gas systems 60/100 or 80/125
D Boiler connection bend for the
horizontal installation of the flue
gas system 60/100
1. Release the tensioning screws on
the boiler outlet flange.
2. Insert the boiler flue connection.
Note
Fit the parallel connectors of boiler
flue connection B so they point
towards the left or right.
3. Tighten the tensioning screws.
Flue gas system installation
instructions
Flue gas connection
10
Installation sequence
5592 817 GB
