4
Symbol Meaning
Reference to other document containing
further information
Additional information, not safety relevant
1.
Step:
The numbering corresponds to the se-
quence of work.
Intended use
The appliance is only intended to be installed and
operated in sealed unvented heating systems that
comply with EN 12828, with due attention paid to the
associated installation, service and operating instruc-
tions as well as the details in the datasheet.
It is only designed for the heating up of heating water.
Commercial or industrial usage for a purpose other
than the heating up of heating water shall be deemed
inappropriate.
Intended use presupposes that a fixed installation in
conjunction with permissible components designed for
this purpose has been carried out.
Every other use will be deemed to be inappropriate.
Any resulting losses are excluded from the manufac-
turer's liability.
Any usage beyond this must be approved by the man-
ufacturer for the individual case.
Intended use also includes the adherence to mainte-
nance and inspection intervals.

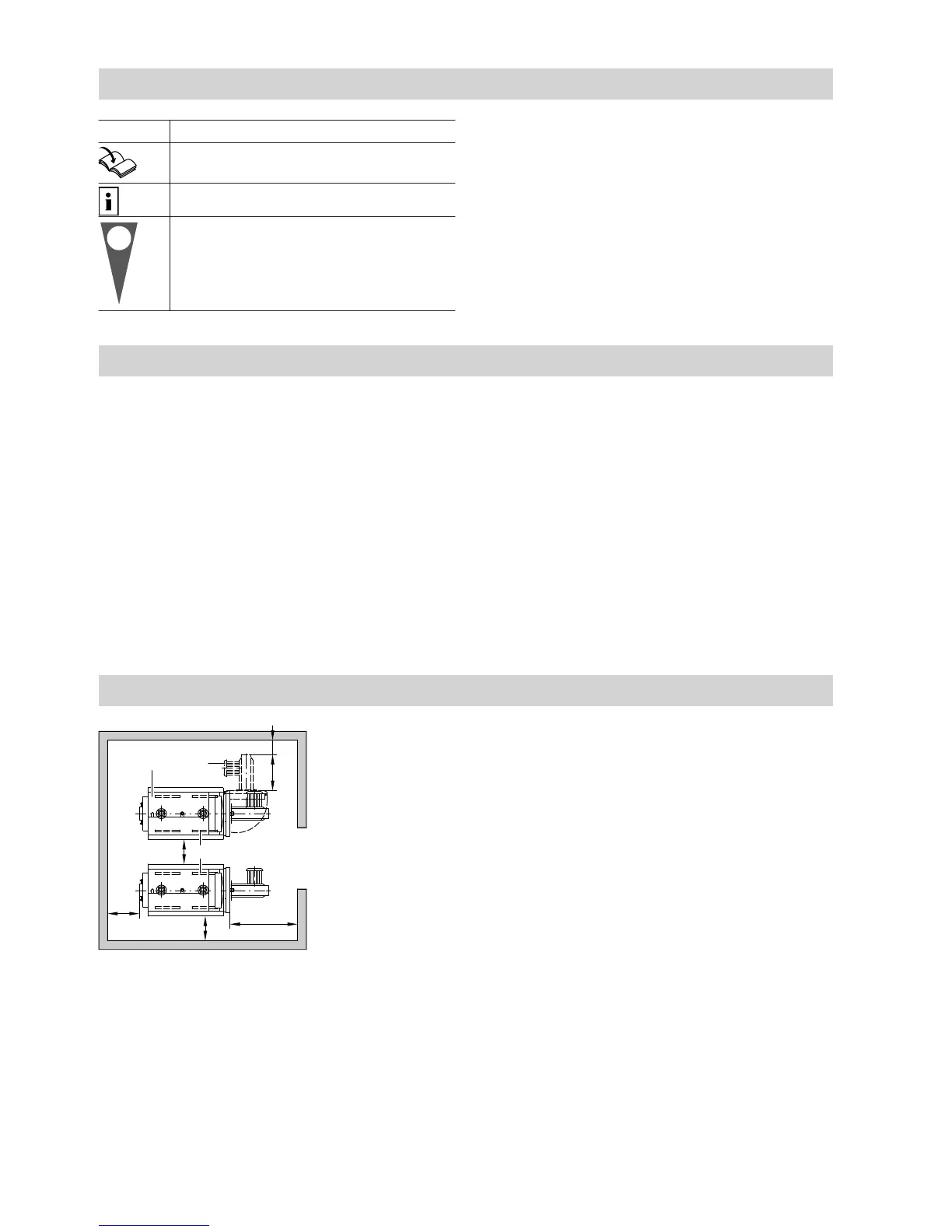

Clearance dimensions
A
(300)
200 (100)
500 (50)
400
a
b
500 (50)
B
C
Fig. 1
A
Boiler
B
Burner
C
Anti-vibration boiler supports (accessories)
Dimensions in brackets are minimum clearances.
Symbols
5592 753 GB
