Viessmann Vitoplex 100 PV1 Installation Instructions

8
Ø D
Ø 10
2-3 x Ø D

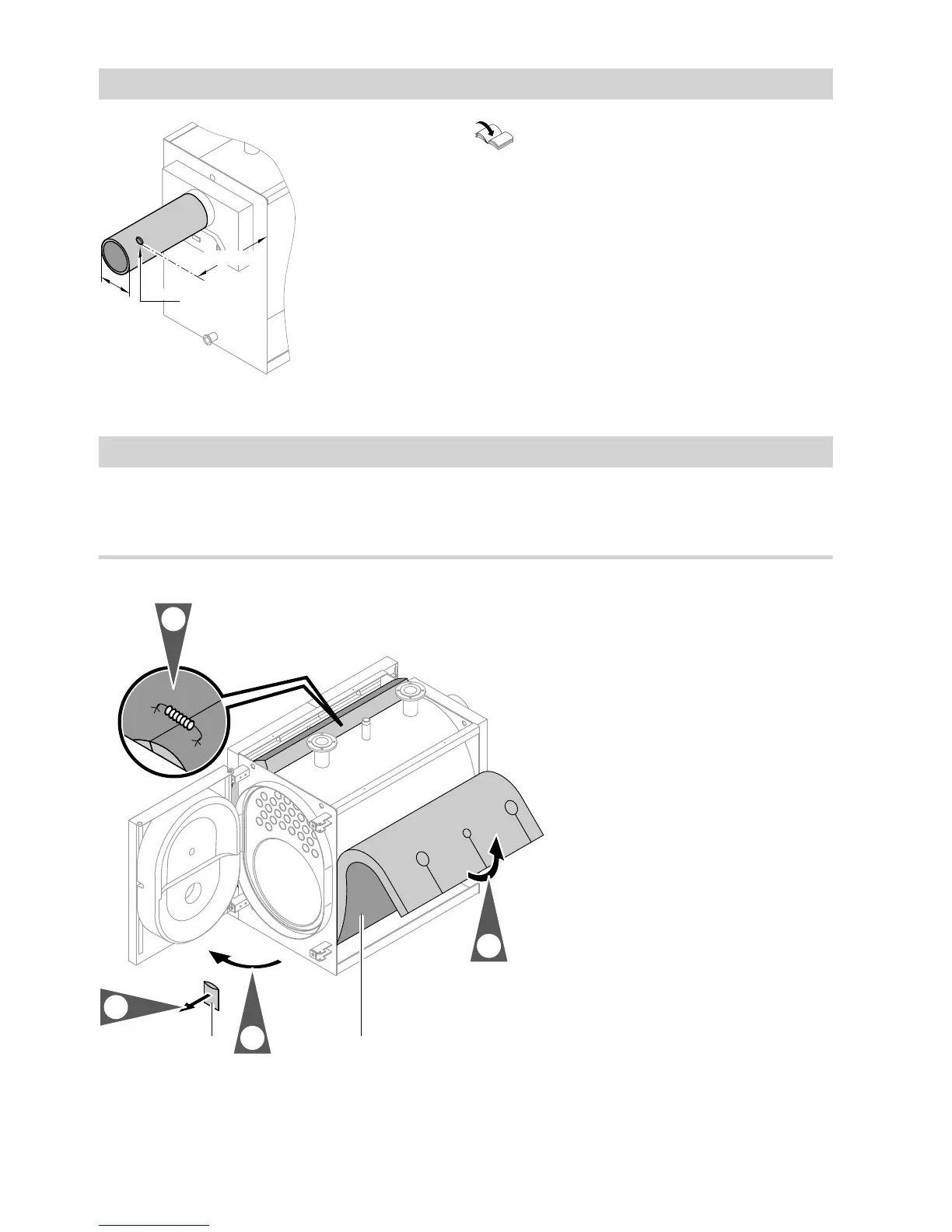

Fig. 6
Vitoair installation instructions
1. Connect the flue outlet with the shortest possible
run to the chimney and maintain a slight incline.
External Ø, flue outlet:
150 and 200 kW: 178 mm
250 and 310 kW: 198 mm
400 to 620 kW: 248 mm
2. Create a test port.
3. Seal in and insulate the flue pipe. Joints must be
gas-tight.
Fitting the thermal insulation
Note
All components required for fitting the thermal insula-
tion can be found in the thermal insulation box.
Boiler body thermal insulation
B A
4.
2.
3.
1.
Fig. 7
A
Black side outwards
Making connections on the flue gas side
5592 753 GB
