4. Align the mounting rails with the
tube holders and s ecure to the
mounting bracke t.
Note
Tube hold ers must be ali gned later-
ally to the opposite rail.
5. Screw the mounting bracket to the
other side o f th e mounting rail .

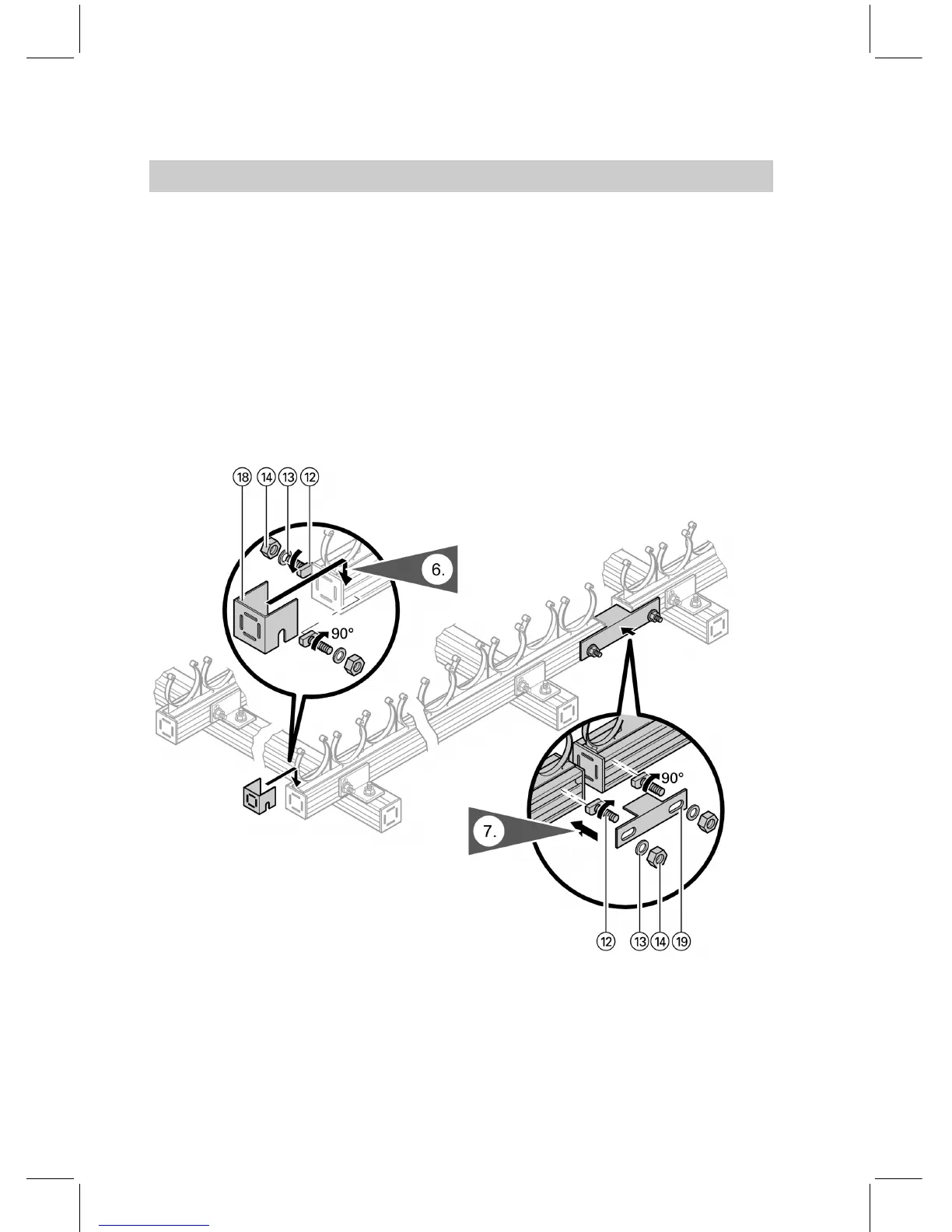

6. S ecure the locking p rofile at the
bottom of the mounting rails.
7. If a second collector is fitted above
the first, fit a s pacer.
Proceed as p er points 2 to 5.
Horizontal rooftop installation (cont.)
16
5862 788 GB
