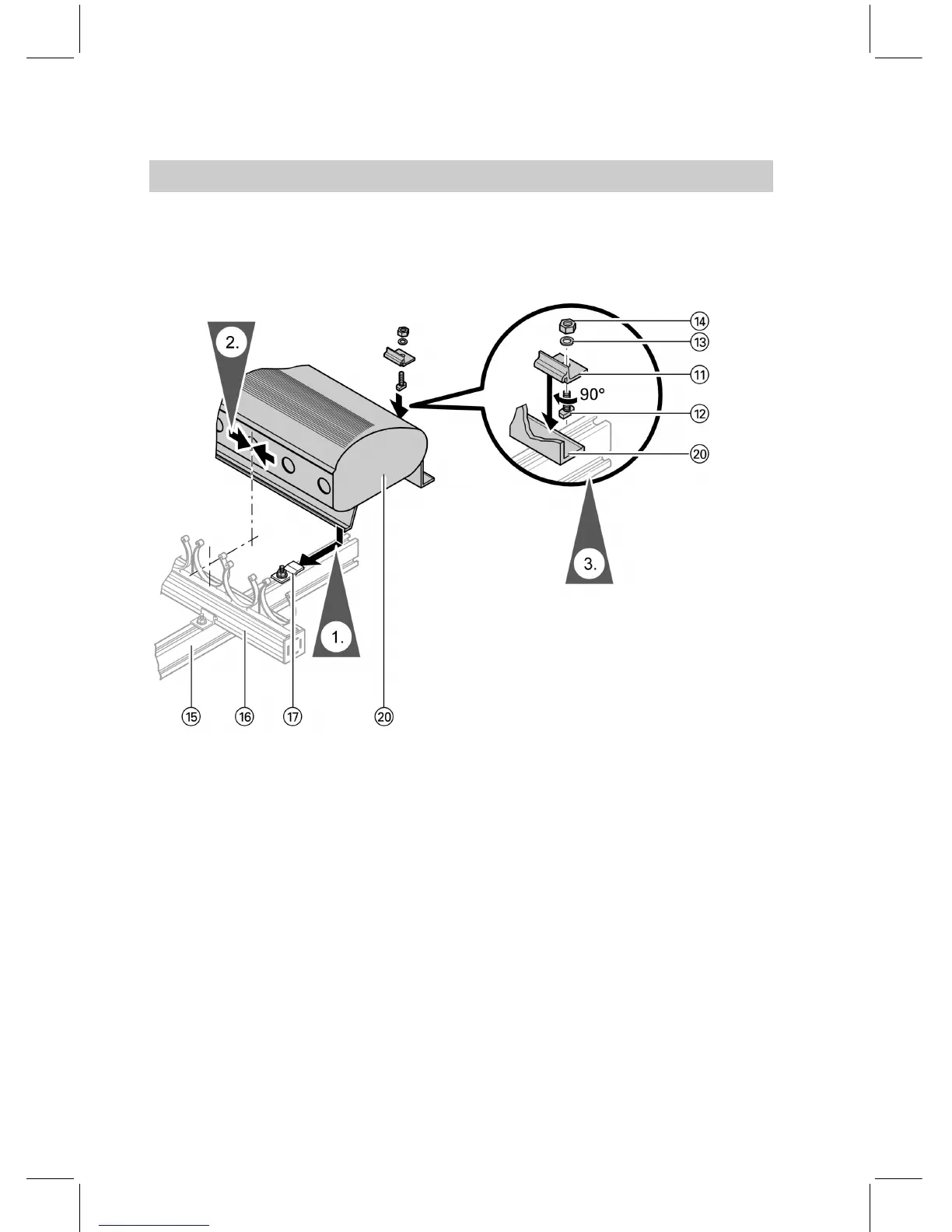

Fitting the connecting chamber
Tur n T- slot bolts 90° for all installation steps.
1. P osition the conne cting chamber
onto the mounting rails and click it
into the retaining plates.
2. Align the connecting chambers.
Note
The tube holders on the mounting
rails m ust be in line with those in
the connecting chambers; where
necessary, align with a piece of
string.
3. Tighten the mounting r ails with the
clamping brackets.
4. Where several collectors are
installed side-by-side, continue
with "Installing the connecting
chamber" on p age 45, otherwise
continue with "Fitting the vacu um
tubes" on page 46.
Vertical rooftop installation (cont.)
30
5862 788 GB
