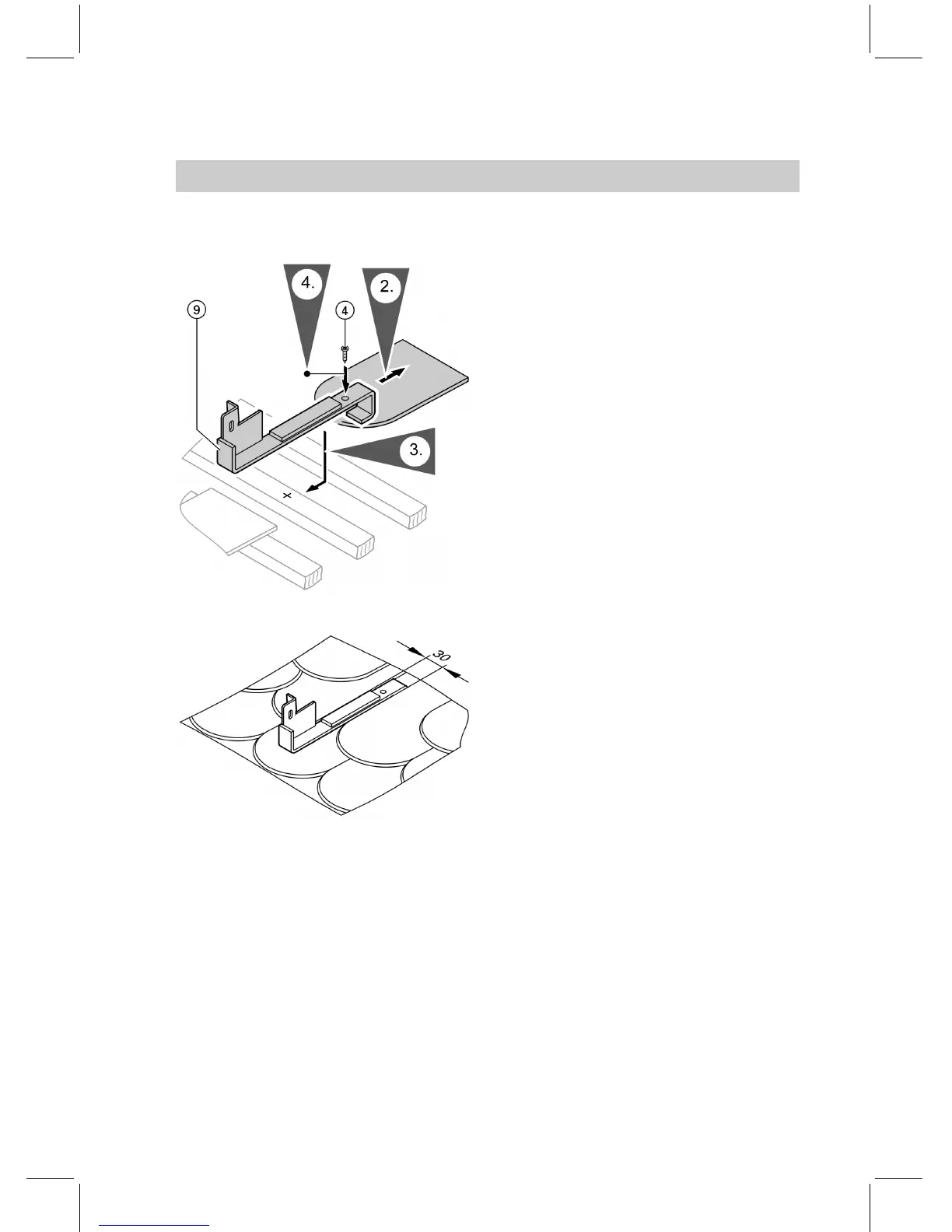

Fitting roof hooks for plain tile cover
1. Markthepositionofeachroofhook
in accordance with the dimensions
shownintheillustrationon
page 24.
2. Rem ove tiles from t he roof hook
area.
3. Hook the r oof hooks onto the bat-
tens and posit ion and align on t op
of the tile below.
4. Secure the roof hooks to the bat-
tens.
5. Cov er the roof; trim tiles to suit with
an angle gri nder; trim app rox.
30 mm off the tiles.
Fitting the mounting rails
Tur n T- slot bolts 90° for all installation steps.
Vertical rooftop installation (cont.)
27
5862 788 GB
