Fitting the roof hooks or mounting brackets

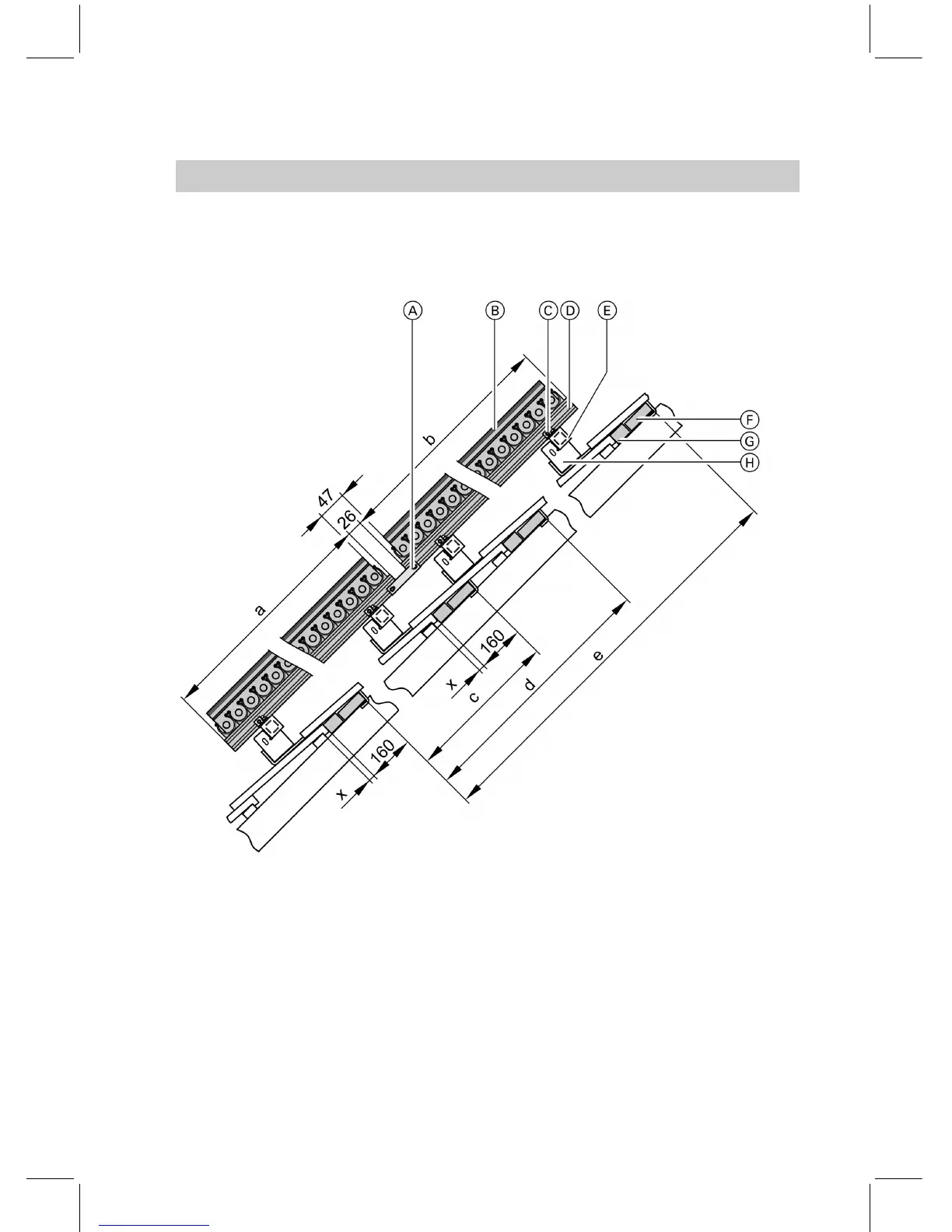

Overview — Installation with roof hooks
Dimension x accor ding to the width of
thetilehead.Dimensionsatoesee
tableonpage9.
A Spacer
B Connecting ch amber
C Mounting bracket
D Mounting rail with tube holder
E Mounting rail
F Timber, 38 x 100 mm
(only for roof tiles)
G Timber, 30 x 58 mm
(only for roof tiles)
H Roof hooks
Horizontal rooftop installation (cont.)
