Centre the mounting rails, maintaining
dimension f = 26 mm.

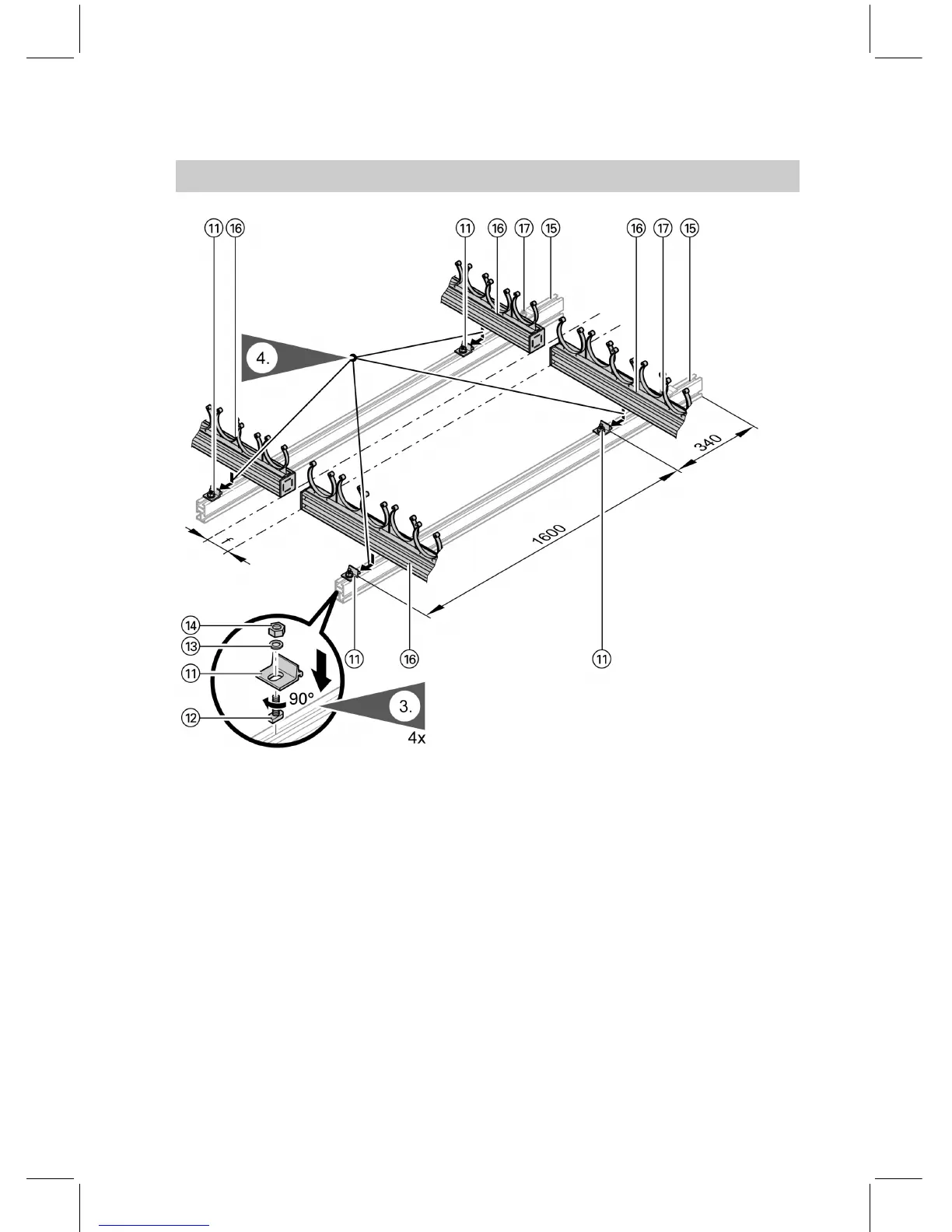

3. Fit clamping brackets onto the
mounting rai ls; do not yet tighte n
the bolts.
4. Click mounting rails with tube
holders into the clamping brackets,
align and fasten.
Note
Tube hold ers must be ali gned later-
ally to the opposite rail.
Vertical rooftop installation (cont.)
29
5862 788 GB
