Viessmann VITOSOL 200 - Page 22

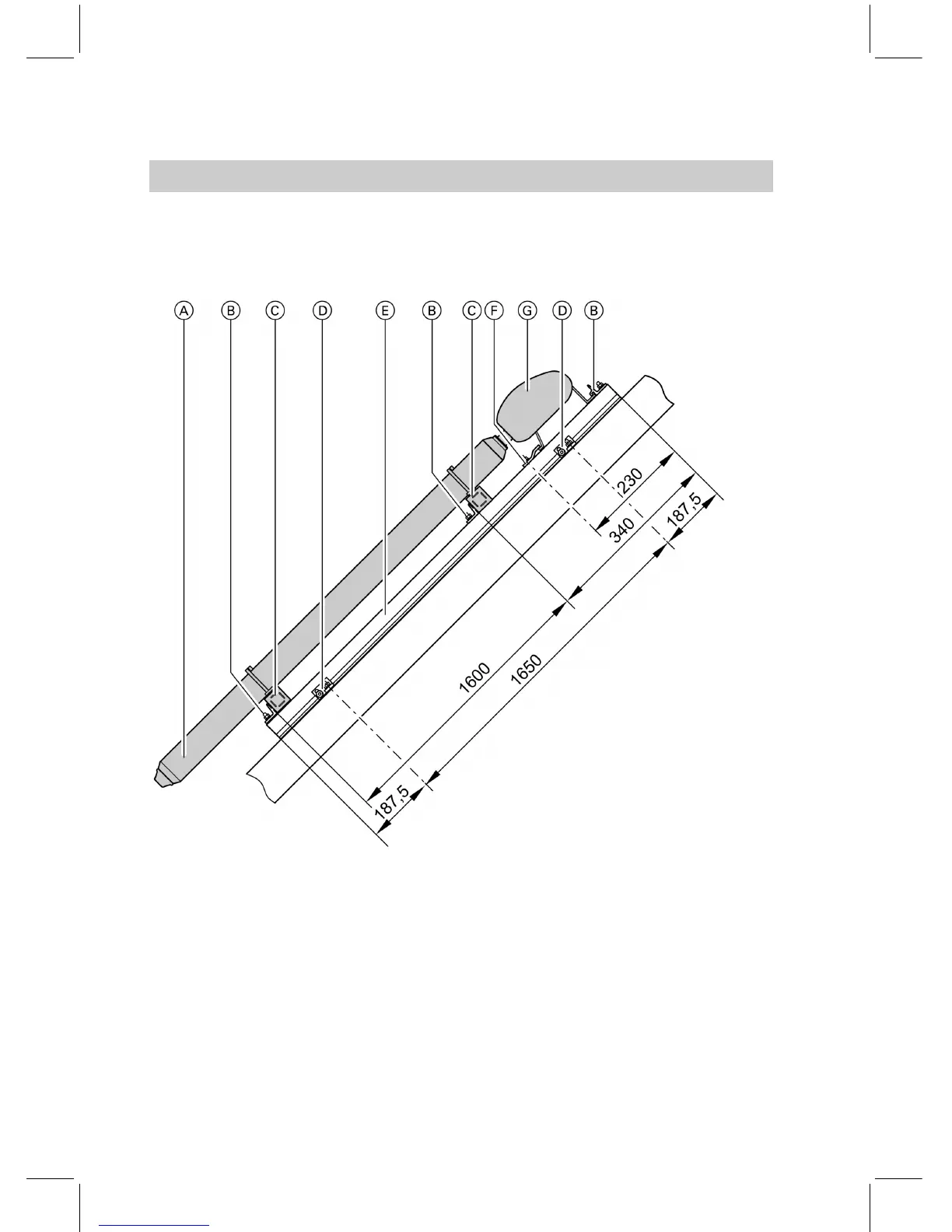

Overview — Installation with mounting brackets
(e.g. on sheet ste el roofs)
A Vacuum tube
B Clamping br acket
C Mounting rail with tube holder
D Mounting bracket
E Mounting rail
F Retainin g p late
G Connecting ch amber
Vertical rooftop installation (cont.)
