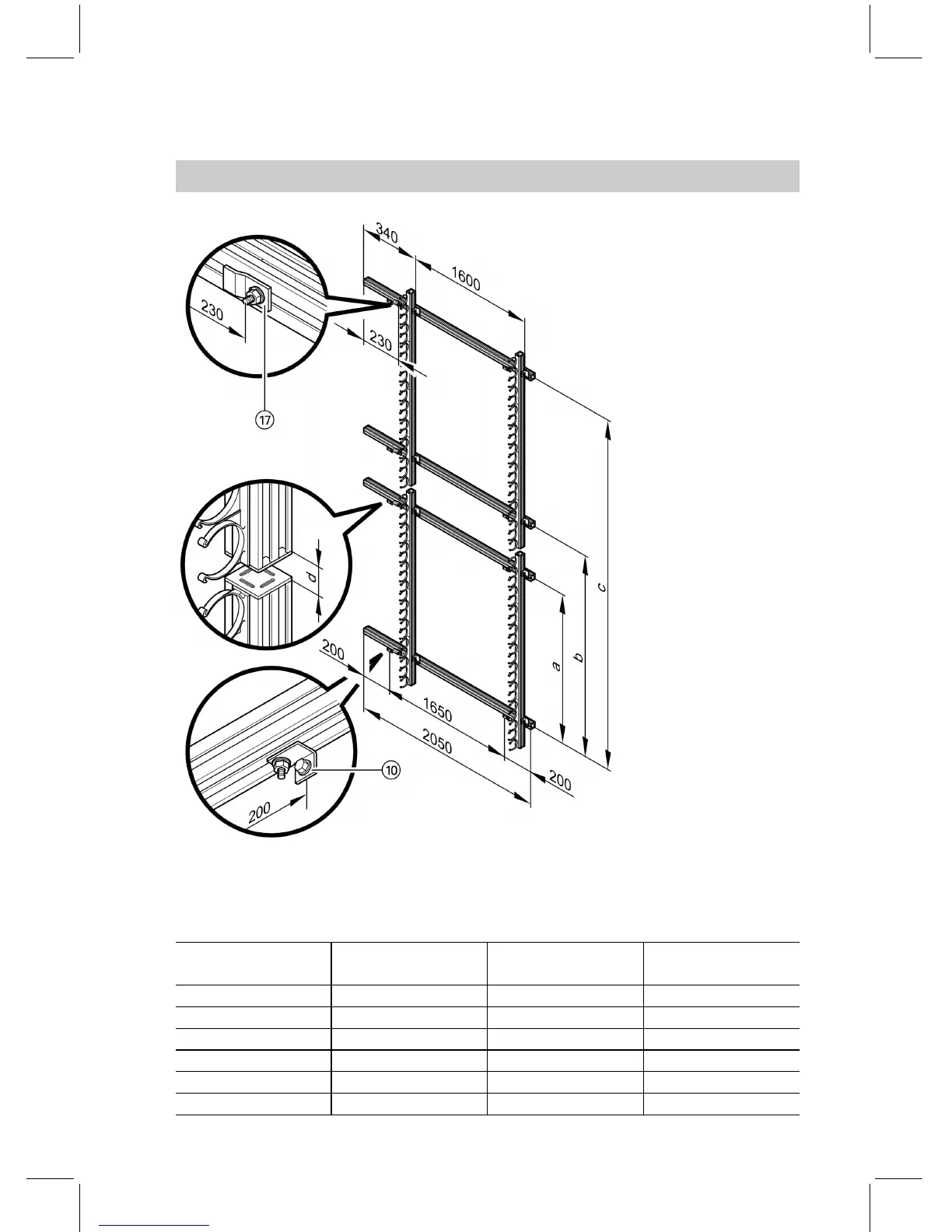

Centre the mounting rails, maintaining dimension d = 26 mm.
Combination
(tubes)
ammbmmc mm
20 850 ——
30 1260 ——
20/20 850 1465 2315
20/30 850 1820 2875
30/20 1260 1820 2875
30/30 1260 2175 3435
Installation on walls (cont.)
