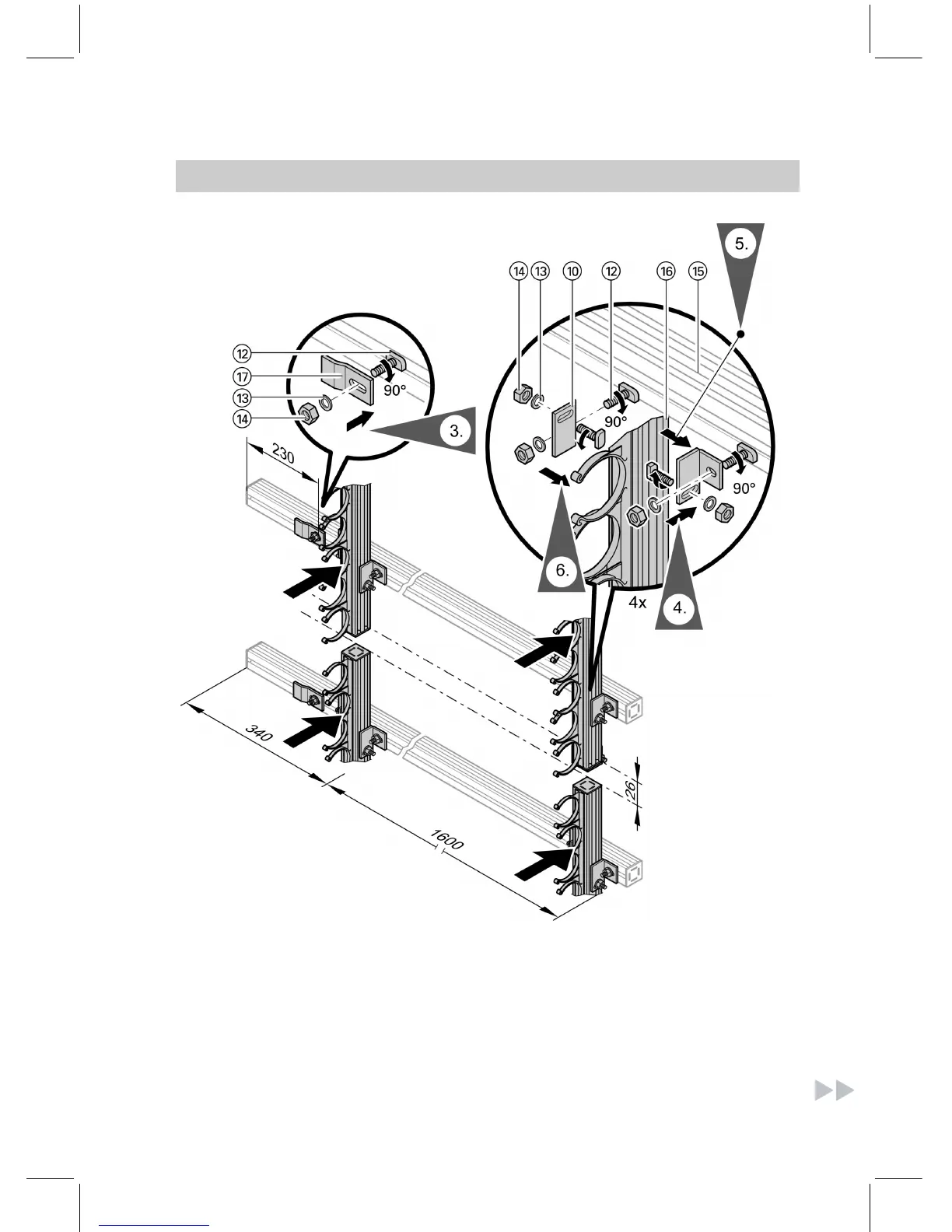

3. Secure the retaining plates to the
mounting rai ls.
4. Secure the mounting brackets to
the mounting rails.
5. Align the mounting rails with the
tube holders and s ecure to the
mounting bracke t.
Note
Tube hold ers must be ali gned later-
ally to the opposite rail.
Installation on walls (cont.)
41
5862 788 GB
