2. Push the tubes into the tube
holders until they click and push
them into the hea der as far as pos-
sible.
The tubes will lock into the locking
spring.
3. For south-facing roofs, adjust the
angle of inclination o f the absorber
with the enclosed template.
Thecoatedsideoftheabsorber
should be turned to wards the sun.
4. Secure the tubes with the retaining
rubber.

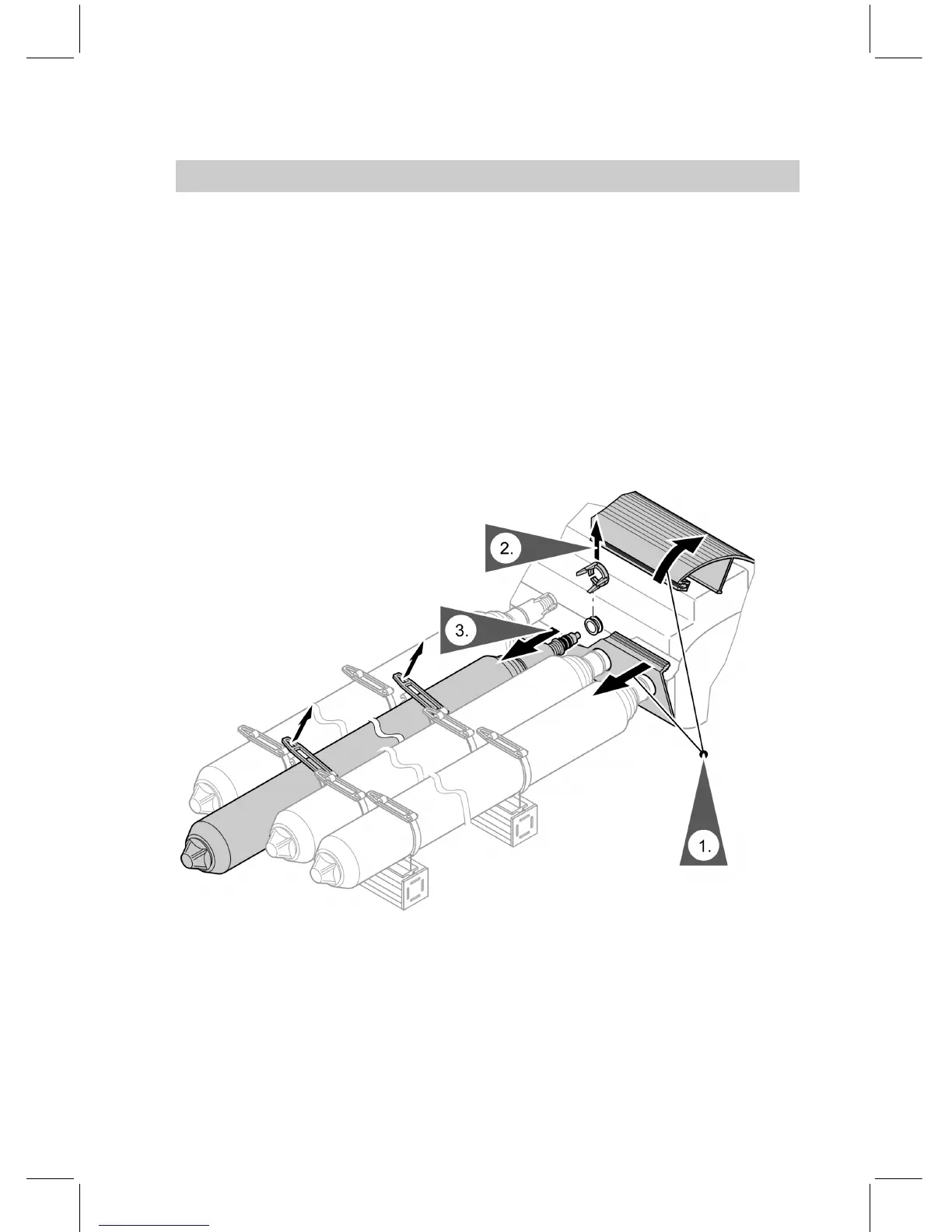

Removing tubes
If a tube must be removed, proceed
as follows:
1. Rem ove the rubbe r seal from the
groove of the casing cover and
open the casing.
2. Push the locking spring upwards
out of the tube holders on the
header.
3. Carefully remove the tubes.
Water connections (cont.)
47
5862 788 GB
