Viessmann VITOSOL 200 - Page 50

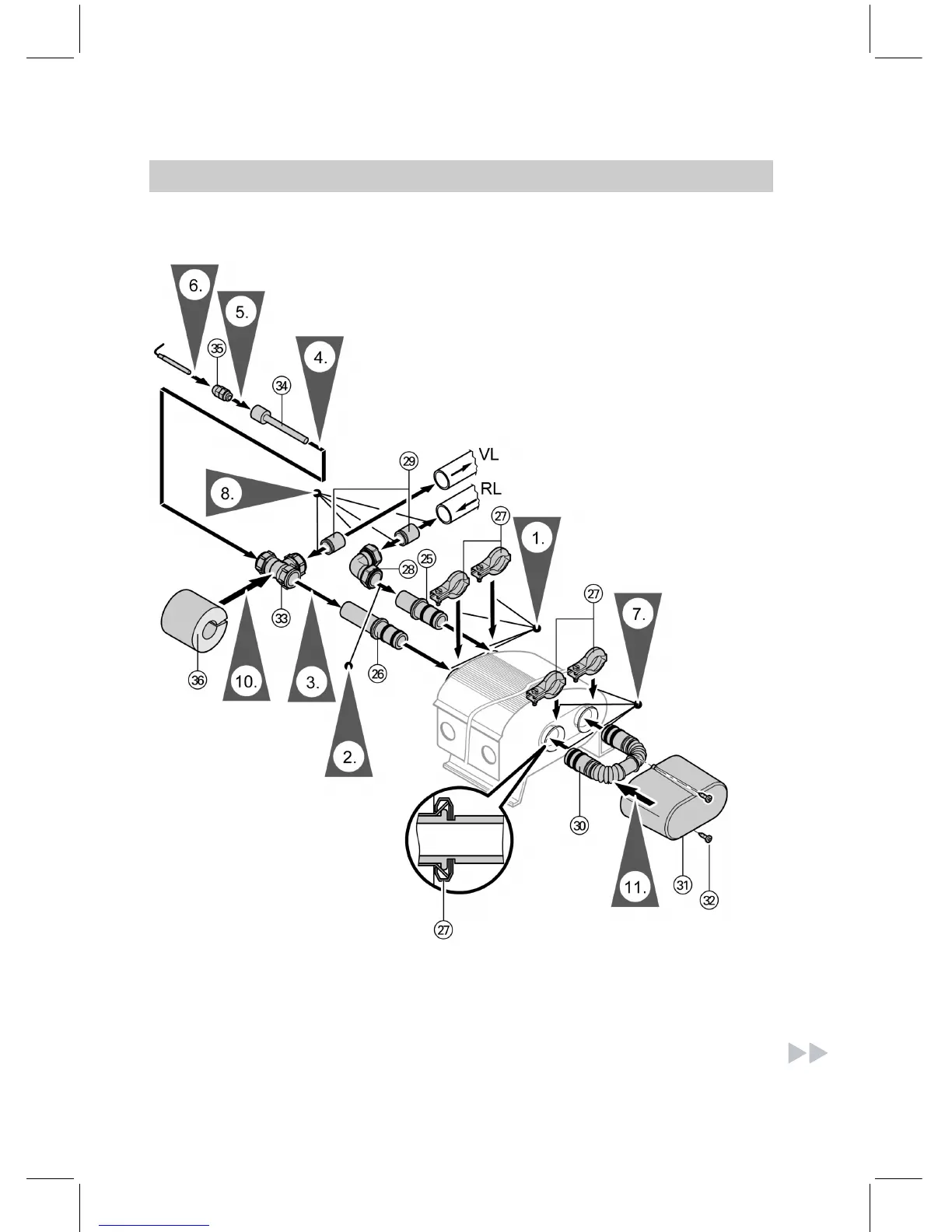

Connect ion to the le ft
RL Return (short connection pipe) VL Flow (long connection pipe)
1. Insert the connection pipes as far
as possible, then secure them
with profile clips.
2. Fit the elbow onto the return con-
nector.
Water connections (cont.)
50
5862 788 GB
