ViewSonic CD4620 16
Connecting a Personal Computer
Connecting your computer to your LCD monitor will enable you to display your computer's screen image.
Some video cards may not display an image correctly.

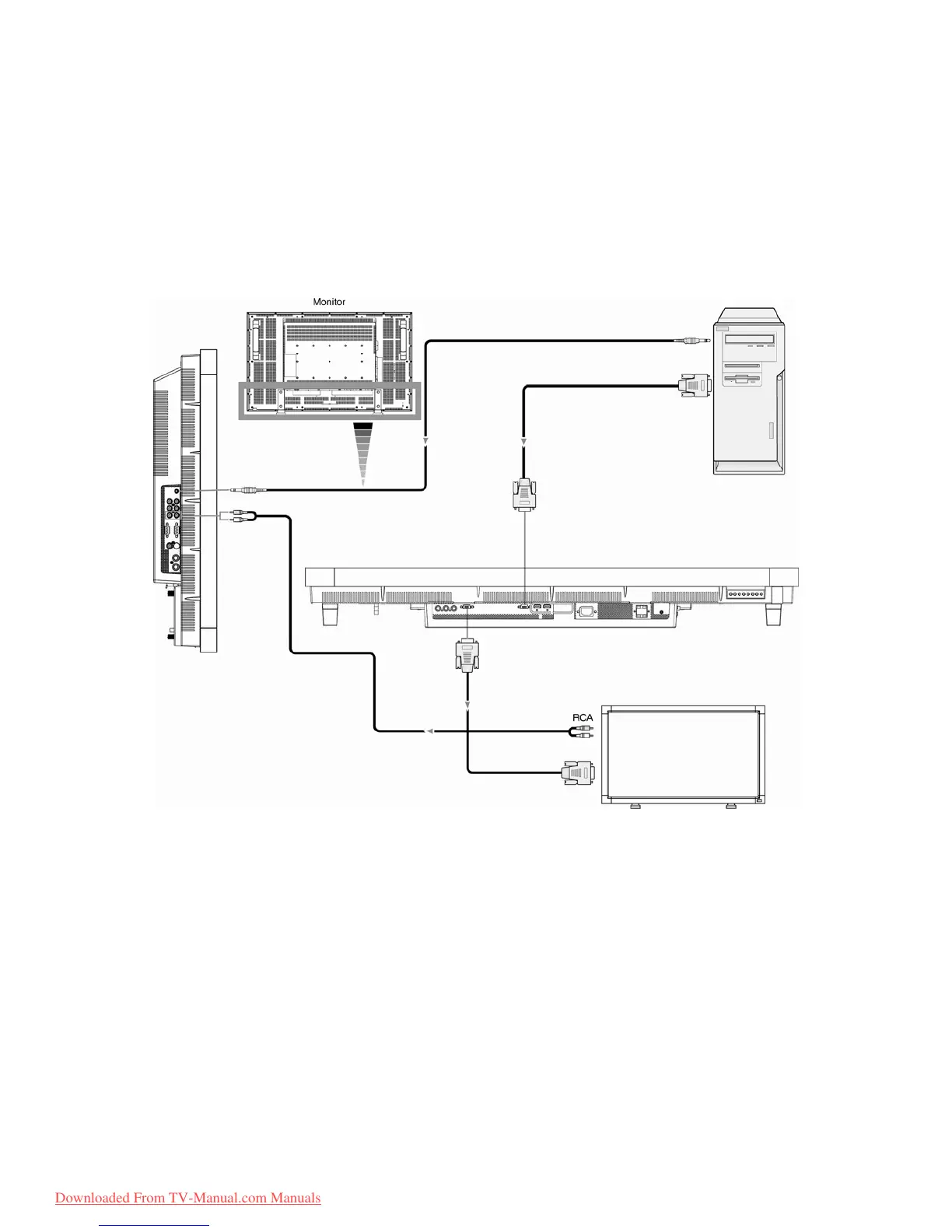

Connect the LCD Monitor to a Personal Computer
y To connect the RGB 3 IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal
cable (mini D-sub 15 pin to mini D-sub 15 pin).
y When connecting one or more LCD monitors, use the RGB OUT connector (mini D-sub 15 pin).
y The AUDIO IN 1, 2, 3 or HDMI can be used for audio input. For connection, select AUDIO 1, 2, 3 or HDMI from the
AUDIO INPUT button. You can select HDMI only when RGB 1 or 2 is selected.
y The AUDIO OUT jack outputs sound from the selected Audio input.
To audio output
To analo
To Next Page
