2

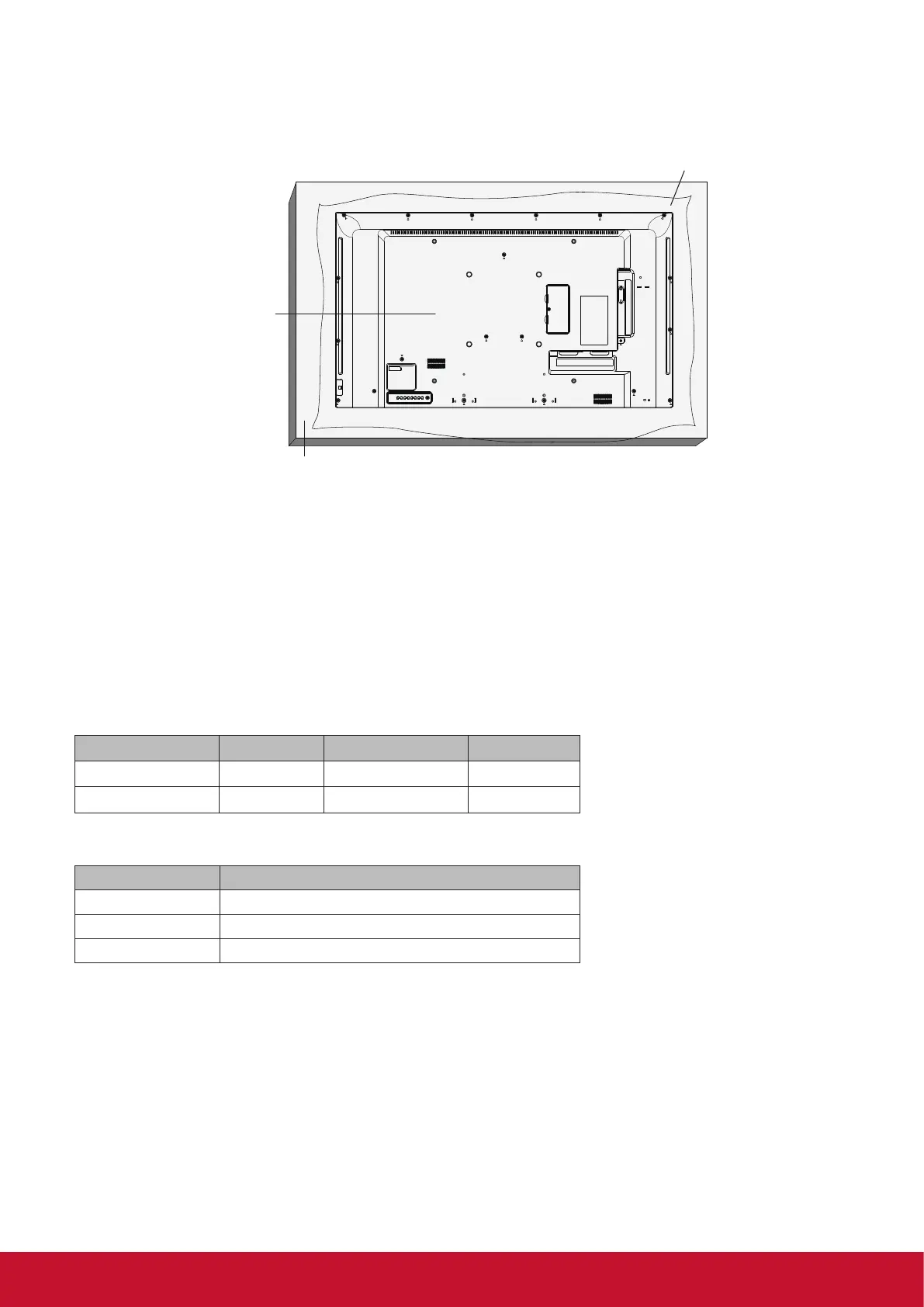

1.4. Mounting on a Wall
To mount this display to a wall, you will have to obtain a standard wall-mounting kit. We recommend using a
mounting interface that complies with UL1678 standard in North America.
VESA Grid
Protective Sheet
Table
1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath
the screen surface so as not to scratch the screen face.
2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc).
3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting
procedures could result in damage to the equipment or injury to the user or installer. Product warranty
does not cover damage caused by improper installation.
4. For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer than the thickness of
the mounting bracket) and tighten them securely.
5. Unit without base weight = W Kg. The equipment and its associated mounting means still remain secure
during the test. For use only with UL Listed Wall Mount Bracket with minimum weight/load: W Kg.
Model Name W (kg) Model Name W (kg)
CDE4302-H 8.7 CDE5502-H 16.0
CDE4803-H 11.52
1.4.1. VESA Grid
Model Name Vesa Grid
CDE4302-H 200(H) x 200(V)mm / 400(H) x 400(V)mm
CDE5502-H 400(H) x 200(V)mm / 400(H) x 400(V)mm
CDE4803-H 200(H) x 200(V)mm / 400(H) x 400(V)mm
Caution:
To prevent the display from falling:
For wall or ceiling installation, we recommend installing the display with metal brackets which are
commercially available. For detailed installation instructions, refer to the guide received with the
respective bracket.
To lessen the probability of injury and damage resulting from fall of the display in case of earthquake or
other natural disaster, be sure to consult the bracket manufacturer for installation location.
