ViewSonic CDE4803-H User Manual

5

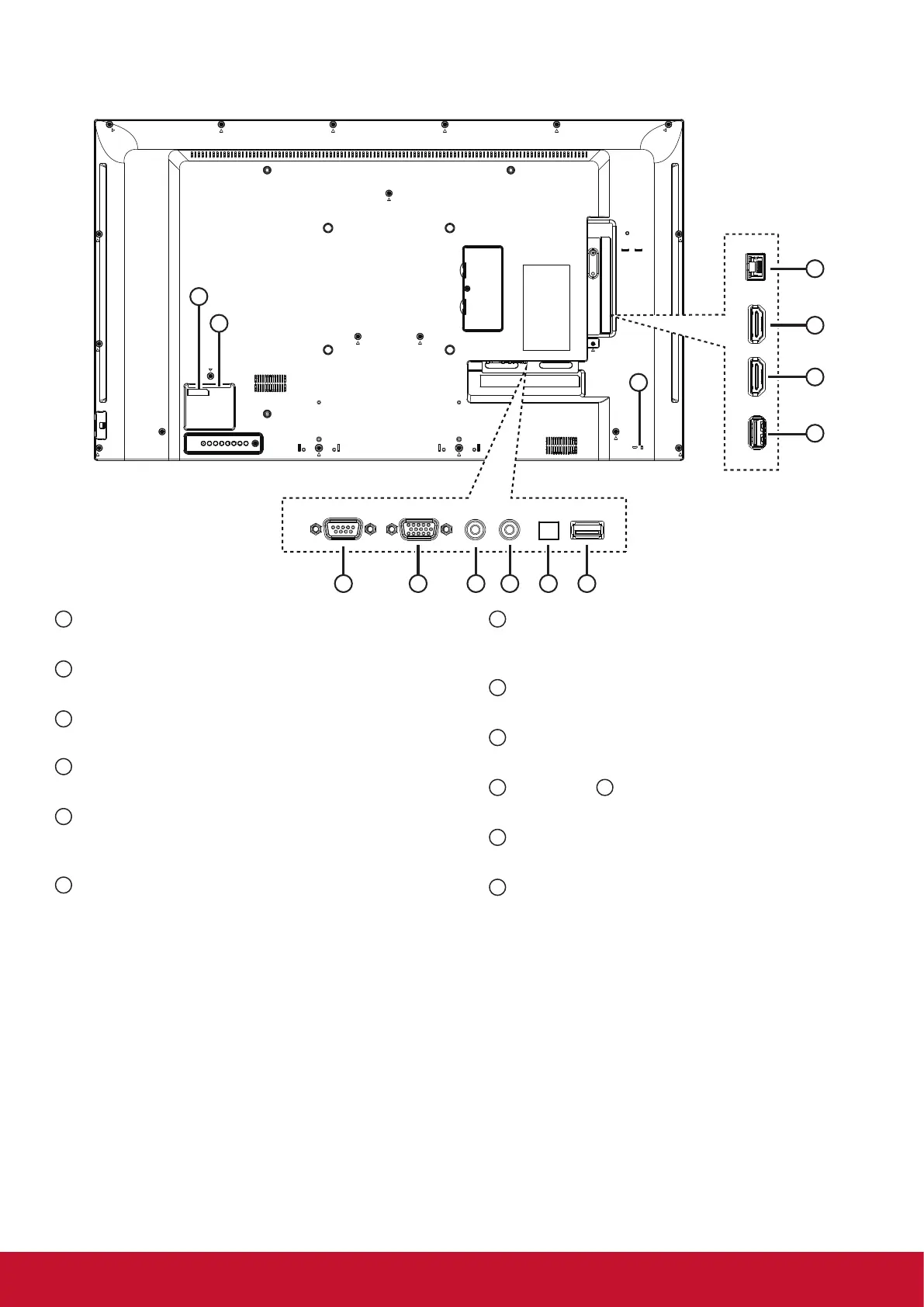

2.2. Input/Output Terminals
1
2
13
10
3 4
6
5
7 8
9
11
12
HDMIUSB 5V/2A HDMI HDBaseT
1
MAIN POWER SWITCH
Switch the main power on/off.
2
AC IN
AC power input from the wall outlet.
3
RS232C IN
RS232C input.
4
VGA IN (D-Sub)
VGA video input
5
PC LINE IN
Audio input from VGA source (3.5mm stereo
phone).
6
IR OUT
IR signal output for the pass through function.
7
SPDIF OUT
Digital audio signal output to connect your external
AV device.
8
USB PORT
Connect your USB storage device.
9
USB Power
USB 5V/2A power supply.
10
HDMI 1 IN /
11
HDMI 2 IN
HDMI video / audio input.
12
HDBaseT
HDBaseT input.
13
SECURITY LOCK
Used for security and theft prevention.

ViewSonic CDE4803-H Specifications

General

Pixel pitch	- mm
Response time	8 ms
Display diagonal	48 \
Display brightness	350 cd/m²
Display technology	LED
Native aspect ratio	16:9
Contrast ratio (typical)	4000:1
Display number of colors	-
Supported graphics resolutions	1920 x 1080 (HD 1080)
DVI port	No
Ethernet LAN	Yes
VGA (D-Sub) input ports	1
Product color	Black
Product design	Digital signage flat panel
Panel mounting interface	200 x 200, 400 x 400 mm
RMS rated power	10 W
Power consumption (standby)	- W

Weight and Dimensions

Depth	59.9 mm
Width	1081.8 mm
Height	623.4 mm
Weight	25400 g
