7.2 As shown in Figure 6-3:
i. Pre-fastening Sequence: [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ]
ii. Fastening Sequence [ 2 ] - [ 1 ] - [ 4 ] - [ 3 ]
iii. Screw Torque must be confirmed to be 6 kg-cm.

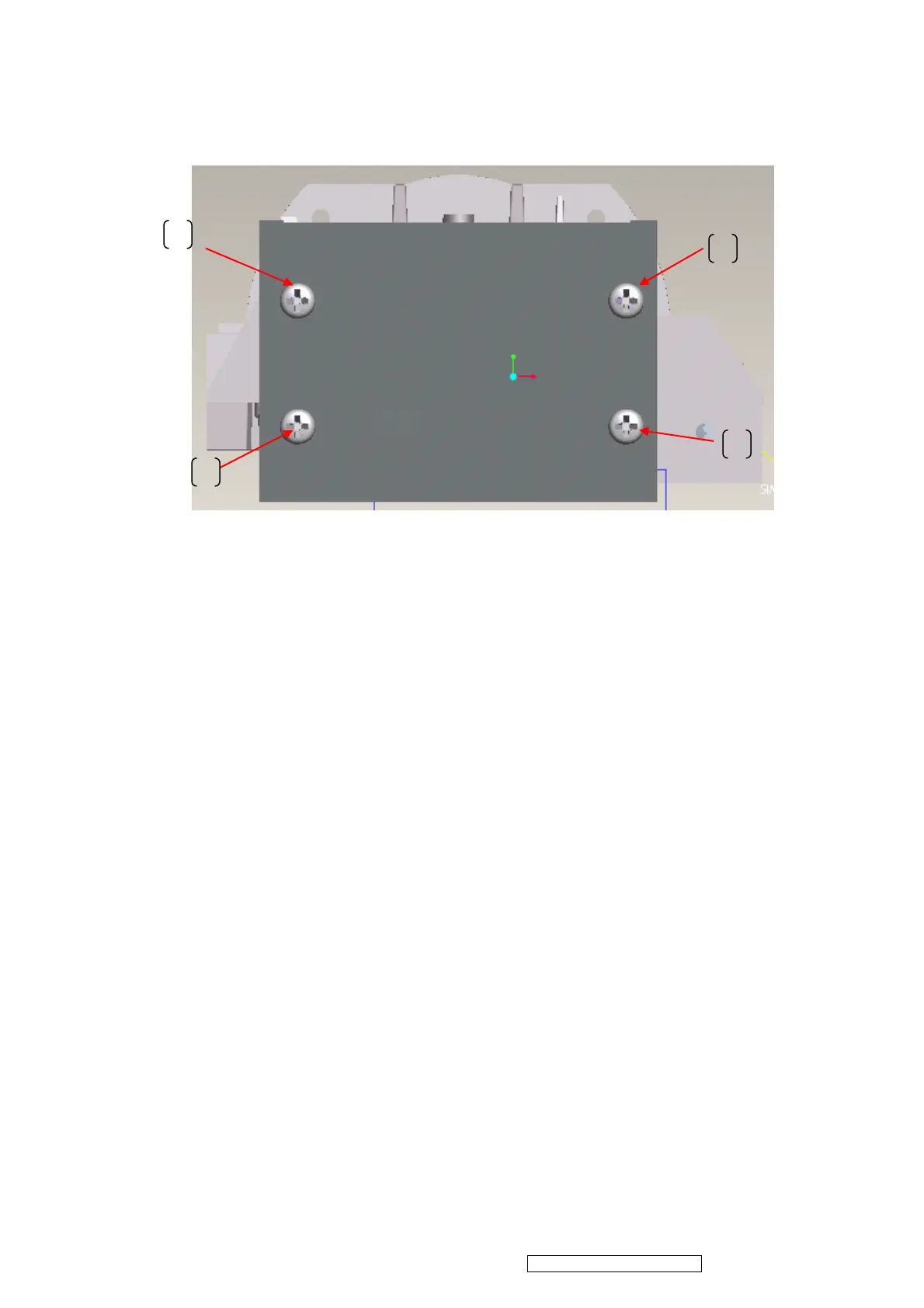

Figure 7-3
1
2
3
4
