ViewSonic PJ503D-1 - Page 78

75
ViewSonic Corporation Confidential - Do Not Copy PJ503D-1

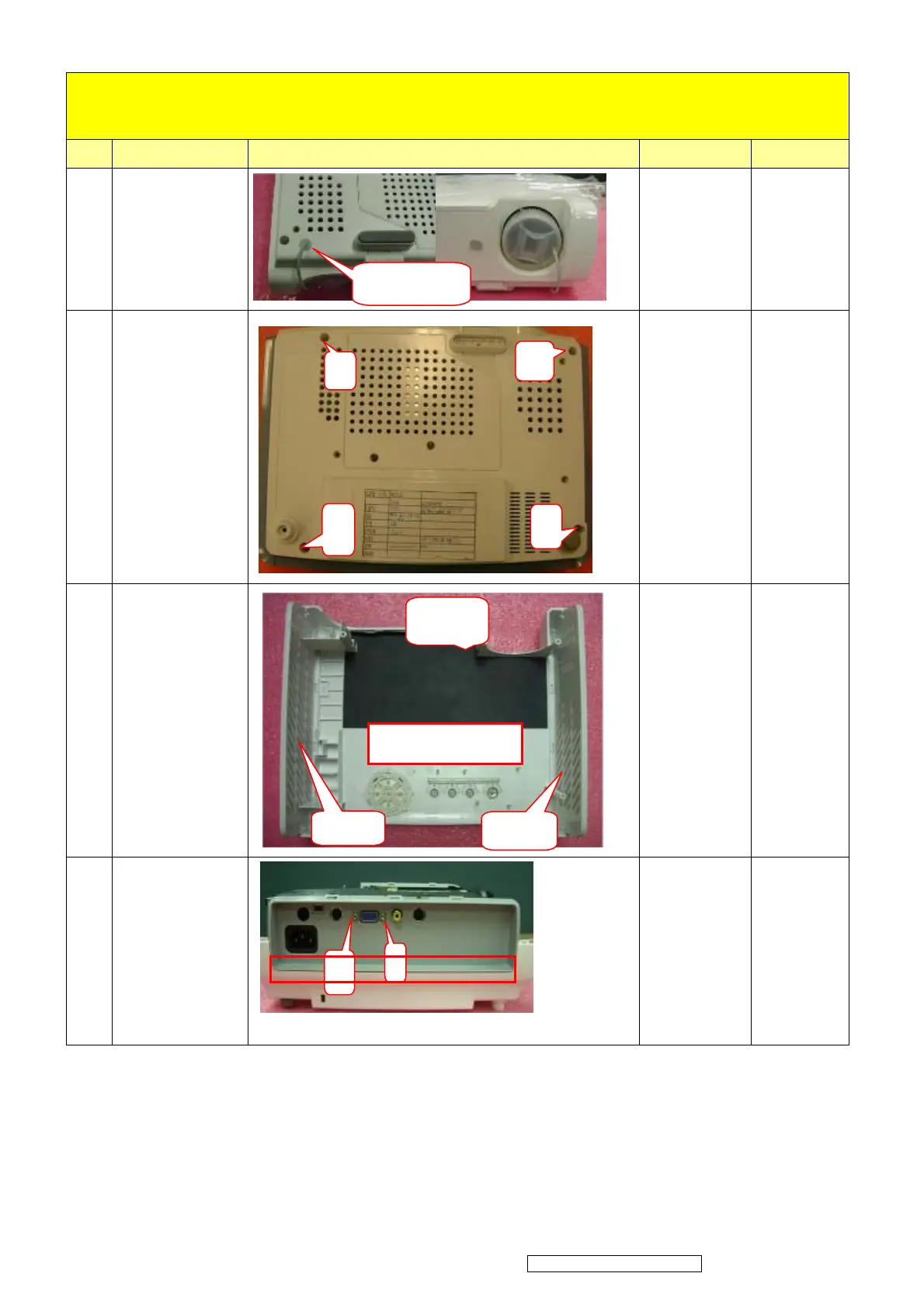

PJ503D Disassembly SOP
Step Description Parts Attention
1
take off the cap
lens wire and
cap lens
cap lens
2
disassembly
the screw*4,
and take off the
upper case
module
upper case
module;
screw*4
3
take off the left
and right case
from the upper
case module,
take off the
upper case
mylar, the left is
upper case
right case;
left case;
mylar;
upper case
3
disassembly
the screw*2,
and take off the
rear case
rear case
1
2
cap lens
left
right
mylar
upper case
2
4
1
3
Disassembly/Assembly
