ViewSonic Corporation Confidential - Do Not Copy PJ503D-1
4

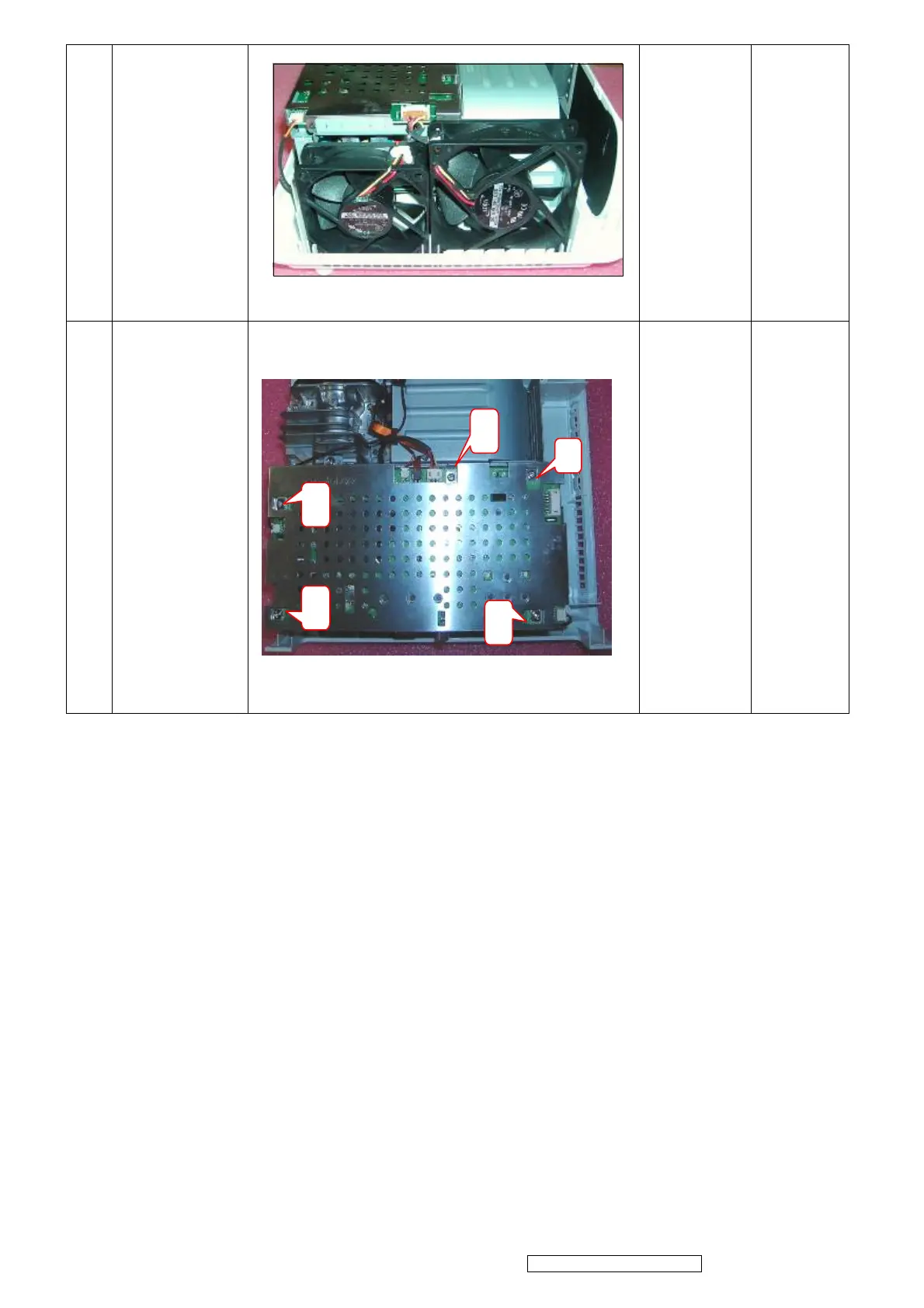

disassembly
the double fan
double fan
double fan
label must
be face out
5
disassembly
the screw*5,
and take off the
M/B shielding
screw*5;
M/B
shielding
1
2
4
3
5
