6

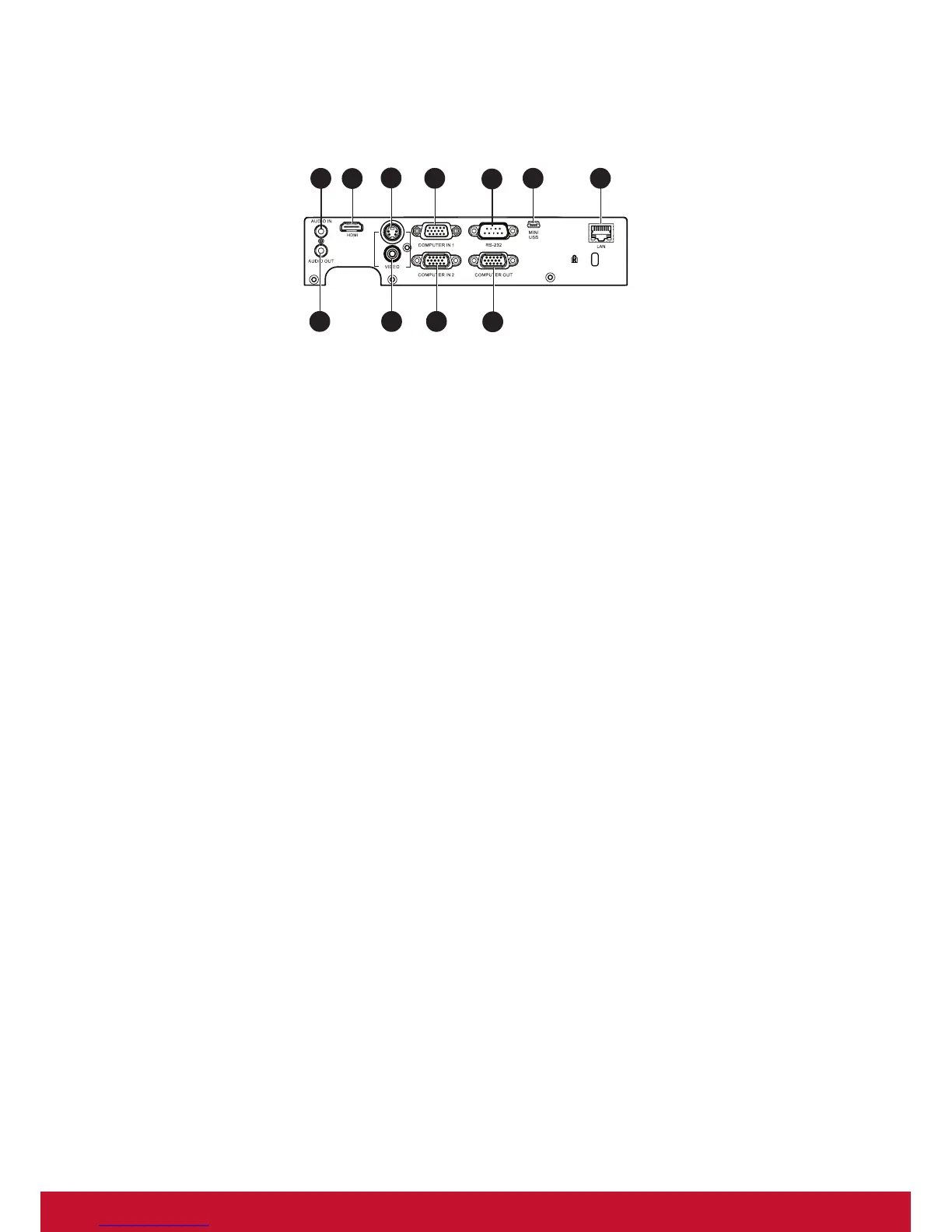

Connection ports
1. AUDIO IN
Connect an audio output from video equipment or computer to this jack.
2. HDMI
Connect HDMI output from video equipment to this jack.
3. S-VIDEO
Connect S-Video output from video equipment to this jack.
4. COMPUTER IN 1
Connect image input signal (analog RGB or component) to this jack.
5. RS-232
When operating the projector via a computer, connect this to the controlling com-
puter's RS-232C port.
6. MINI USB
This connector is for firmware update and mouse function support.
7. LAN
For LAN display/network control and web server.
8. COMPUTER OUT
Connect to a computer display, etc.
9. COMPUTER IN 2
Connect image input signal (analog RGB or component) to this jack.
10. VIDEO
Connect composite video output from video equipment to this jack.
11. AUDIO OUT
Connect to a speaker or other audio input equipment.
8
11
1
3
4
5
6
910
2
7
