Installaon
Before Installing
Maintain an adequate air gap between the back of the display and any wall
for proper venlaon.
Ensure there is no direct airflow from air conditioning or heating vents
blowing on the display.
Avoid installing the display in places with high humidity.
Due to high power usage, always use power cords specically designed for
this product.
Wall Mounng
Installing the Upper and Lower Wall Mount Brackets
1800 mm
2200 mm
2390
mm
1400 mm
1000 mm
600 mm
200 mm
7 mm
12 mm
15 mm
1. Ensure the wall area and size is an appropriate installaon site.
NOTE: The height of the Upper Wall Mount Brackets must not be less than
129.92" (3.3 meters) from the ground.

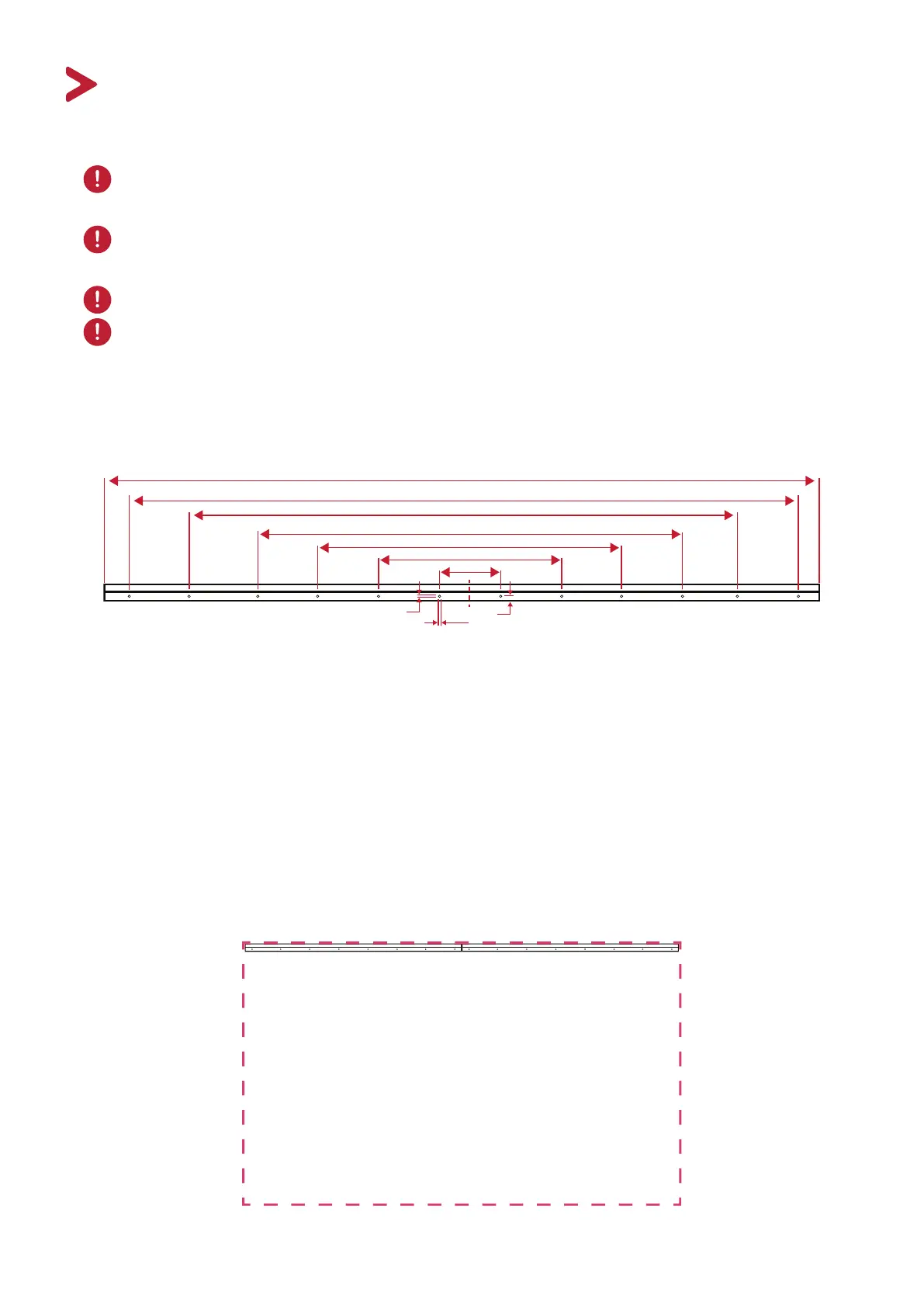

2. Using the Wall Mount Bracket (pictured above) as a guide, mark each of the holes
and pre-drill each.
3. Install the rst Upper Wall Mount Bracket with the provided screws (M6x50mm
Expansion for masonry; TA6x30mm for load bearing wood).
4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the
rst upper bracket.
