VIKING TECHNICAL SUPPORT 1.800.908.0884
4

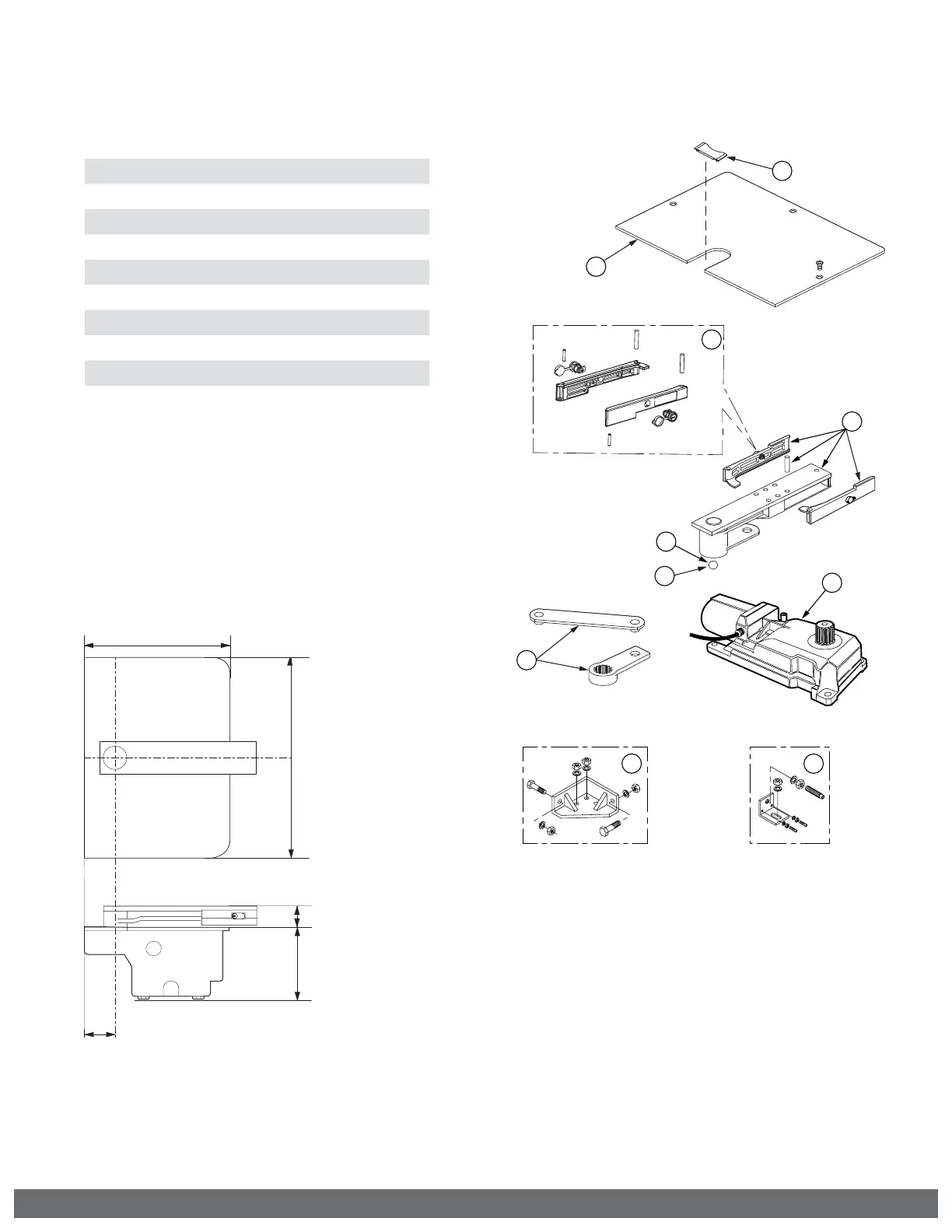

PARTS DIAGRAM - OPERATOR:
Item Description Part No.
1 Release Levers Kit With Locks FA-63000422
2 Steel Ball FA-63003015
3 Cover Plug FA-7271985
4 Box Cover FA-727157
5 Articulated Lever FA-390477
6 Manual Release Assembly FA-424010
7 Motor/Gear Assembly FA-10675315
8 Close Limit Positive Stop Assembly FA-755122
9 Open Limit Positive Stop Assembly FA-722121
6⅛
17
12
8
9
7
2
6
6
5
4
3
1
