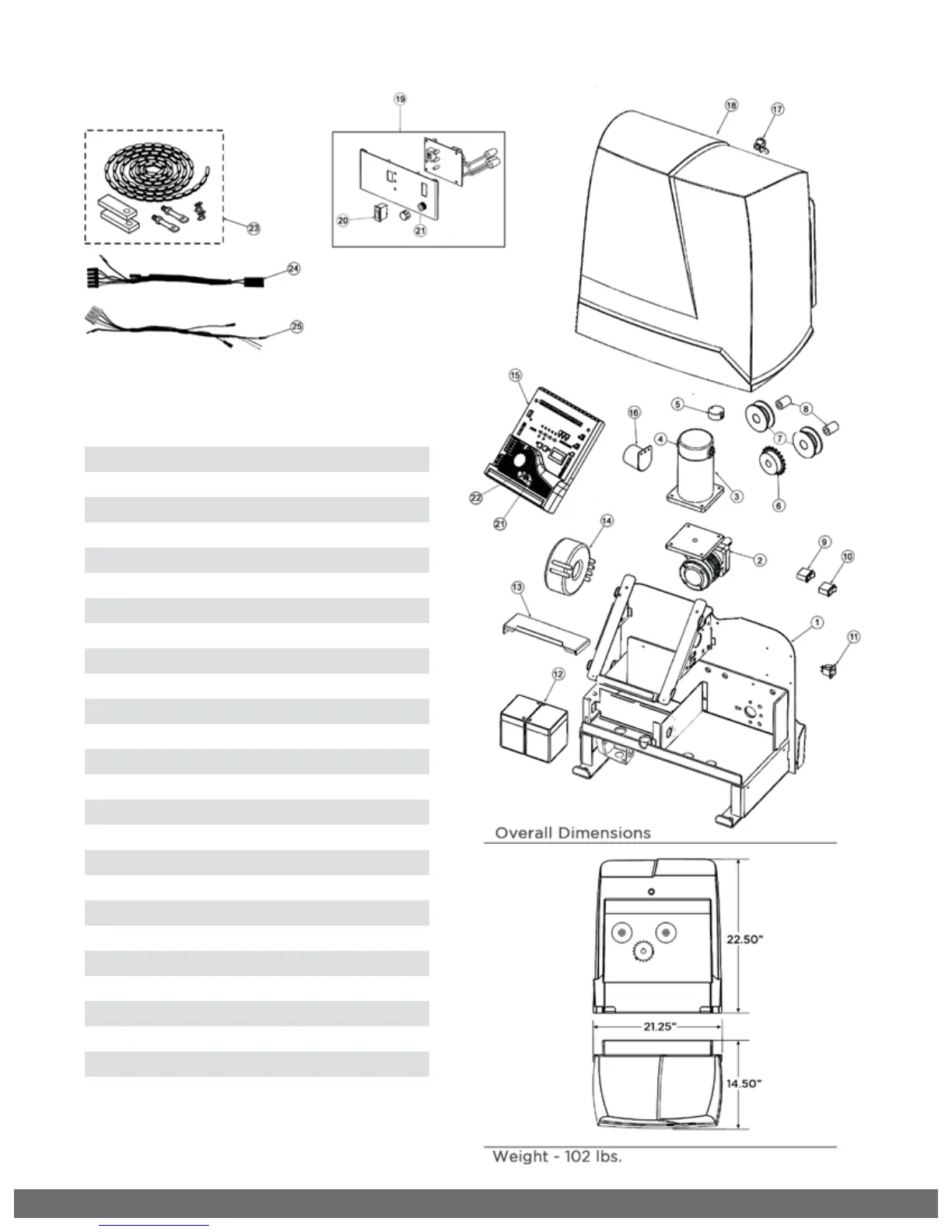

PARTS DIAGRAM:
Item Description Part No.
1 Chassis VNXK2CH
2 Gear Box VNXK2GB
3 Motor VNXK2MO
4 Brush Kit VAMBK
5 Electronic Positioning Sensor 2 (EPS2) VNXL3EPS2
6 40B17 Sprocket VNXFSP17
7 Idler Pulley DSIP10
8 Idler Bushing (w/hardware) DSIB10
9 Manual Release Switch DUMRS10
10 Battery Switch DUAL10
11 120V Receptacle DUOL120
12 Battery DUBA12S
13 Power Supply Cover VNXK2PSC
14 Toroid Transformer - 10 amp DUTT10
15 Control Board VFLEXPCB
16 Alarm DUAL10
17 Key and Lock VNXSLCL
18 Operator Cover VNXK2CV
19 Power Supply Panel Assembly VNXK2PSPA
20 120VAC Power Switch DUMRS10
21 Fuse - 4 amp VNXF4A
22 Fuse - 15 amp VNXF15A
23 25’ #40 Chain Kit, Nickle Coated VAL3CKN
24 Motor Harness VNXK2MH
25 Power Harness VNXK2PH
