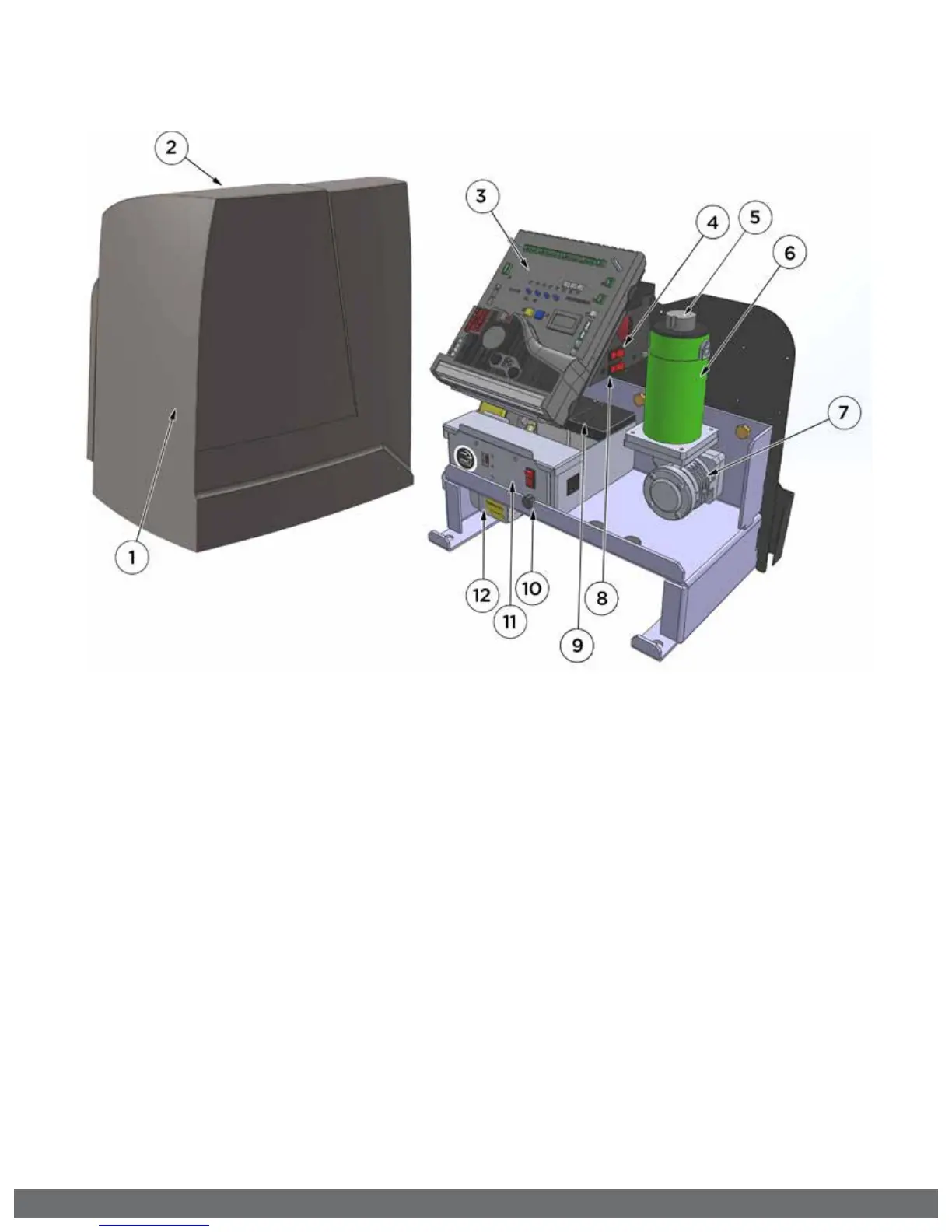

OPERATOR REFERENCES:
1.
OPERATOR COVER
2.
COVER LOCK
3.
VFLEX CONTROL BOARD
4.
MANUAL RELEASE/MOTOR SWITCH
discontinues power to the motor and allows for
manual operation of the gate
5.
EPS (ELECTRONIC POSITIONING SENSOR)
sensor for the digital limits
6.
MOTOR
7.
GEAR BOX
8.
BATTERY SWITCH
disconnects batteries from the charging circuit
during troubleshooting
9.
BATTERY BACKUP SYSTEM
10.
EMI FUSE
main power supply protection
11.
POWER SUPPLY PANEL ASSEMBLY
convenient access to main power supply switches,
status indicators and EMI Fuse
12.
J-BOX
high voltage power supply connection
