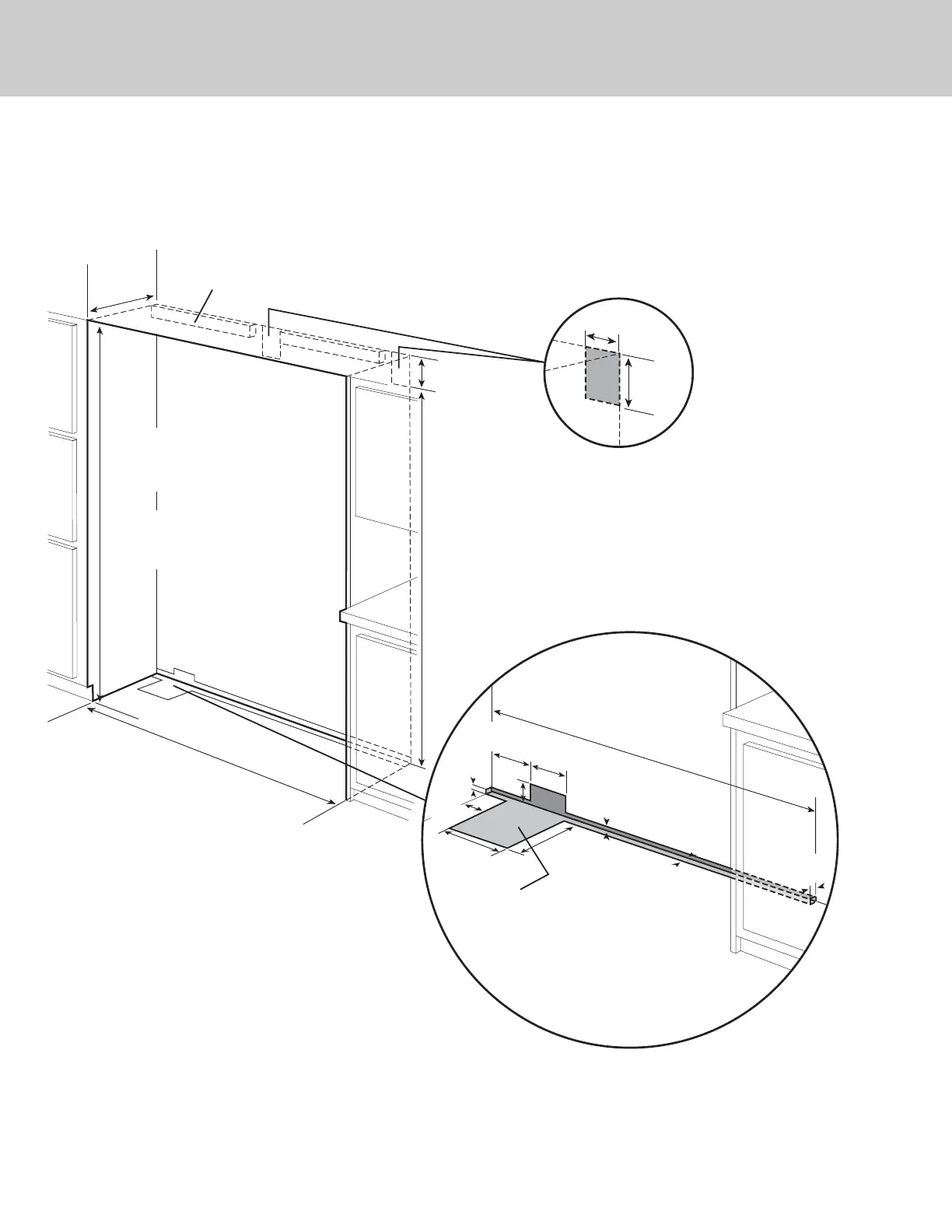

Viking CFDCFB5363 - Cutout Dimensions (Dual 30 and 36)

9”
(22.9 cm)
73-3/8”
(186.4 cm)
82-7/8”
(210.5 cm) min.
anti-tip board &
opening height
84–1/16”
(213.5 cm) max.
anti-tip board &
opening height
66”
(167.6 cm)
24”
(61.0 cm)
Electric Outlet Location
Water Line Entry Area
Note: Cutout opening shown with All Freezer model on left.
Reverse water line entry if All Freezer model is on right.
66”
(167.6 cm)
6-3/4”
(17.1 cm)
7-5/8”
(19.4 cm)
3
”
(7.6 cm)
5/8”
(1.5 cm)
5
/8”
(1.5 cm)
10-1/2”
(26.7 cm)
5
/8”
(1.5 cm)
10-3/4”
(
27.3 cm)
3-5/8”
(9.2 cm
)
1”
(2.5 cm
)
Optional floor
water line entry
See anti-tip board installation
6”
(15.2 cm)
9”
(22.9 cm)
18
Cutout Dimensions
Dual 30” & 36” All Refrigerator/Freezer
