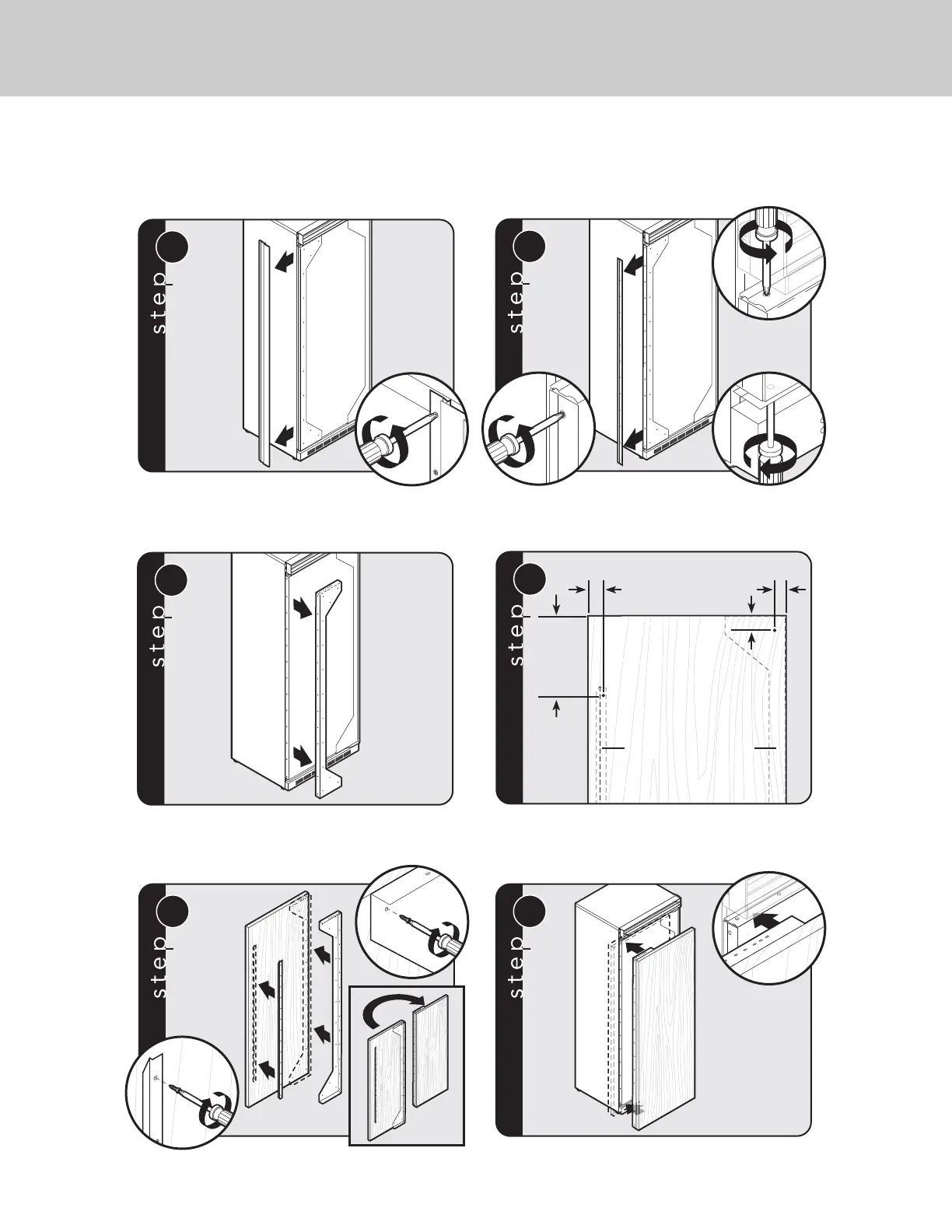

Viking CFDCFB5363 - Custom Door Panel Installation

32
Remove handle side cabinet screws
and trim with a phillips screwdriver.
Remove all screws from handle side door trim.
Remove two screws from top and bottom door trim.
Remove handle side door trim.
Remove bracket.
Measure and mark the first hole for each bracket.
Push custom wood panel onto door.
1
x13
2
x13
x2
x2
3
2-1/16”
(5.2 cm)
2-1/16”
(5.2 cm)
Back of panelBack of panel
FOL bracketFOL bracket“Z” bracket“Z” bracket
1-11/16”
(4.3 cm)
1-11/16”
(4.3 cm)
2-13/16”
(7.1 cm)
Bottom-mount
12-1/16”
(30.6 cm)
All Refrigerator/
Freezer/
Side-by-side
2-13/16”
(7.1 cm)
Bottom-mount
12-1/16”
(30.6 cm)
All Refrigerator/
Freezer/
Side-by-side
2-1/8”
(5.4 cm)
2-1/8”
(5.4 cm)
2-1/8”
(5.4 cm)
4
5
x13
x13 SxS, AFAR
x12 BTM
6
Custom Door Panel Installation
Attach “Z” bracket to the hinge side of custom panel.
Attach bracket to the handle side of custom panel.
