79-3/8”
(201.6 cm) min.
to bottom of
anti-tip board
80-1/2”
(204.6 cm) max.
to bottom of
anti-tip board
One 2”x 4” mounting board per unit
1-1/2” (3.8 cm) x 3-1/2” (8.9 cm)
Note: If unit is installed deeper than 24” (61.0 cm), then shim
behind the mounting boards by the difference.
Bottom of anti-tip board is 3-7/8” (9.8 cm) below opening height.
Note: Top of unit must be placed firmly under anti-tip board.
Note: Dimensions shown for 36” All Freezer/All Refrigerator model on the left.
Reverse mounting boards if units are installed on the right.

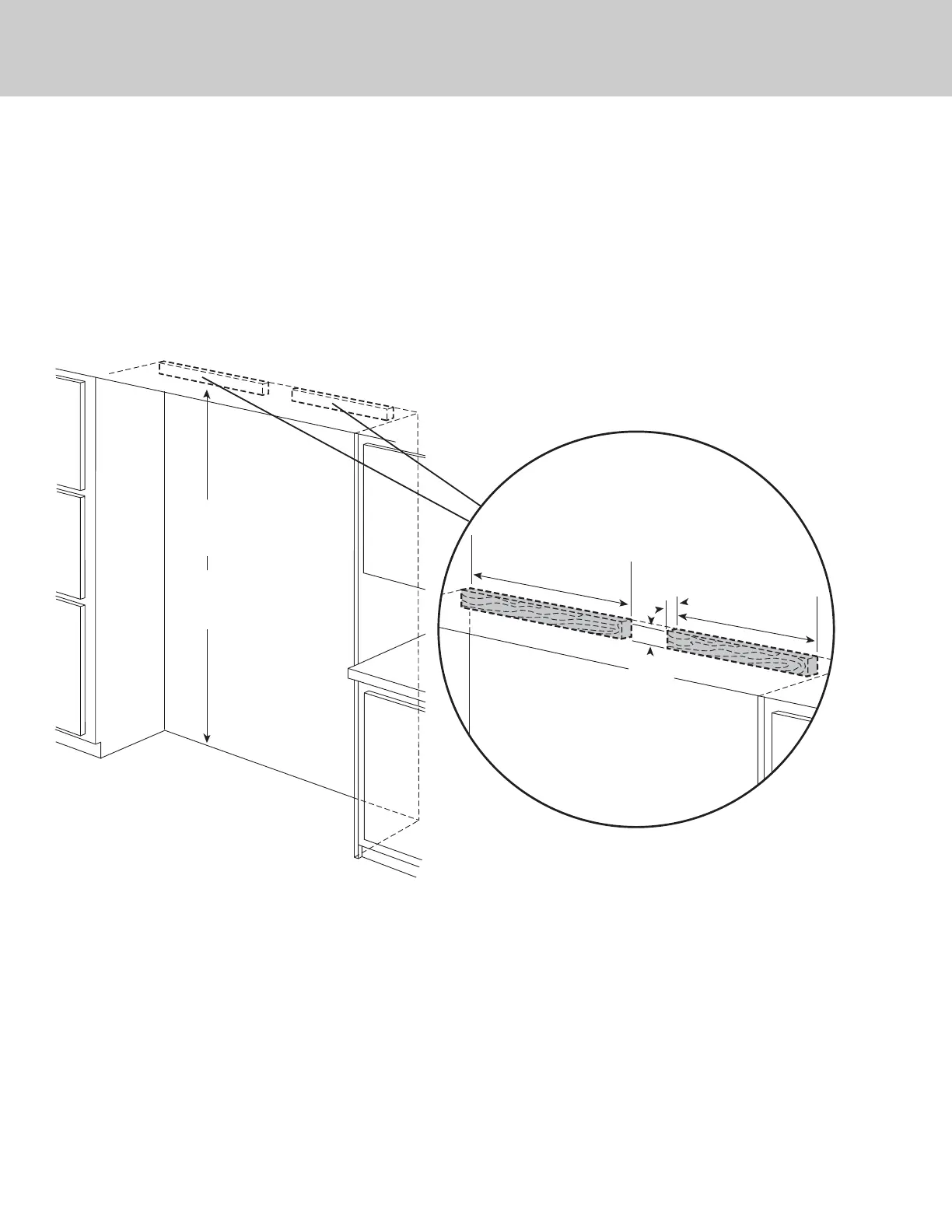

Anti-Tip Location
29”
(73.7 cm)
3-1/2”
(8.9 cm)
1-1/2”
(3.8 cm)
23”
(58.4 cm)
19
Anti-Tip Dimensions
Dual 30” & 36” All Refrigerator/Freezer
One 2”x4” mounting board per unit 1-1/2” (3.8 cm) x 3-1/2” (8.9 cm)
Note: If unit is installed deeper than 24” (61.0 cm), then shim behind
the mounting board by the difference.
Bottom of anti-tip board is 3-7/8” (9.8 cm) below the opening height.
Note: Top of unit must be placed firmly under anti-tip board.
Note: Dimensions shown for 36” All Freezer/All Refrigerator model
on the left. Reverse mounting boards if untis are installed on the right.
