Viking CFDCFB5363 - Kickplate Installation; Door Stop Adjustment

42

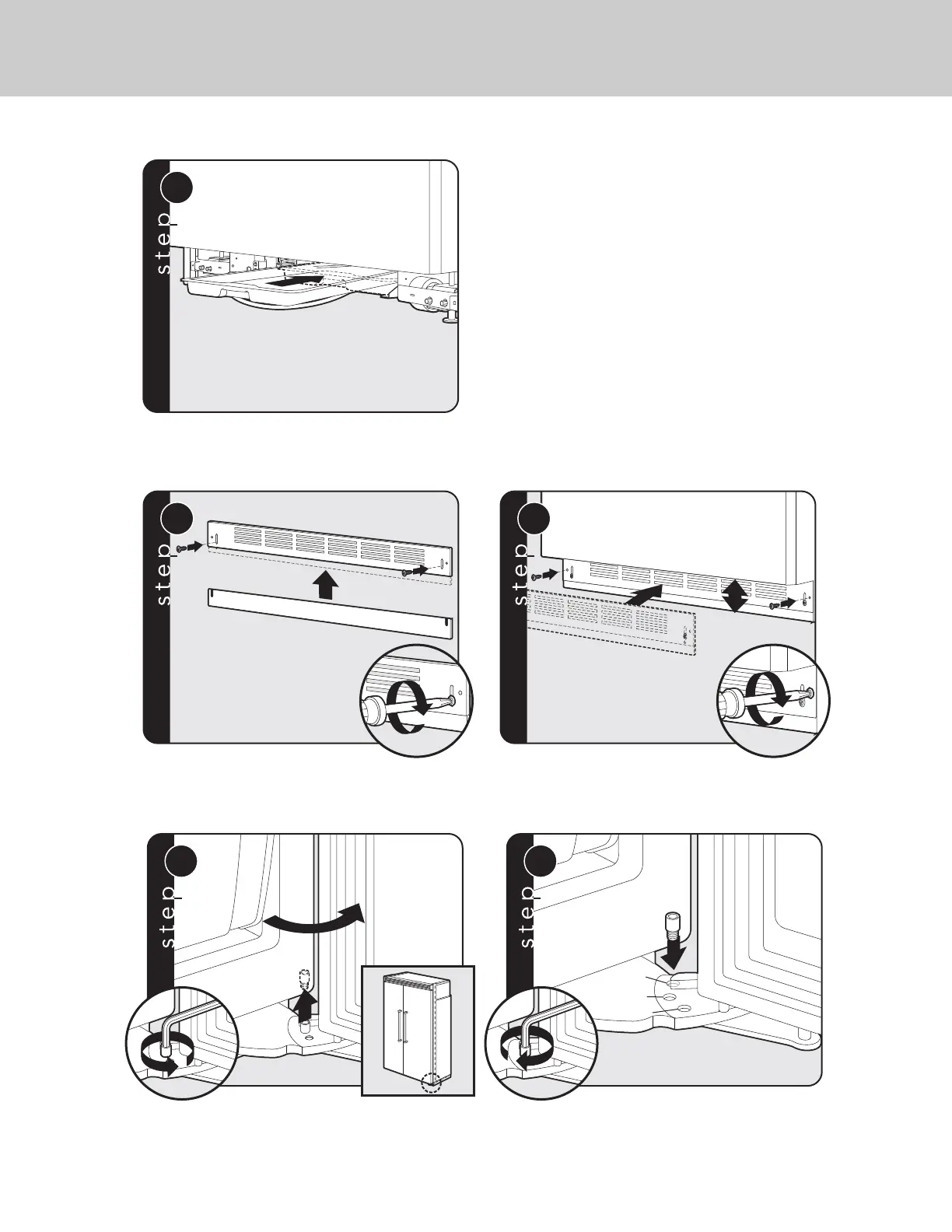

Verify that drain pan is installed and aligned.
Align holes on both ends of louvered panels
and insert screws.
Using a phillips screwdriver, attach the
kickplate to the unit and adjust to desired height.
17
1
2
18
2
1
3
19
Kickplate Installation
3
1
2
20
1
2
21
110˚
90˚
120˚
Open refrigerator door so door stop and
shoulder screw are accessible.
Note: Shoulder screw should be in 110˚ door opening position.
Remove shoulder screw and place in 90˚
or 120˚ position.
Door Stop Adjustment
