Audible Alarm Reset Switch Installation
Manual Reset for the Audible Alarm
• UL325 standard requires an audible alarm to sound after two consecutive events
detected by the inherent entrapment protection of the gate operator (obstruction
sensor).
• The audible alarm will continue to sound for 5 minutes or until a stop command is
actuated.

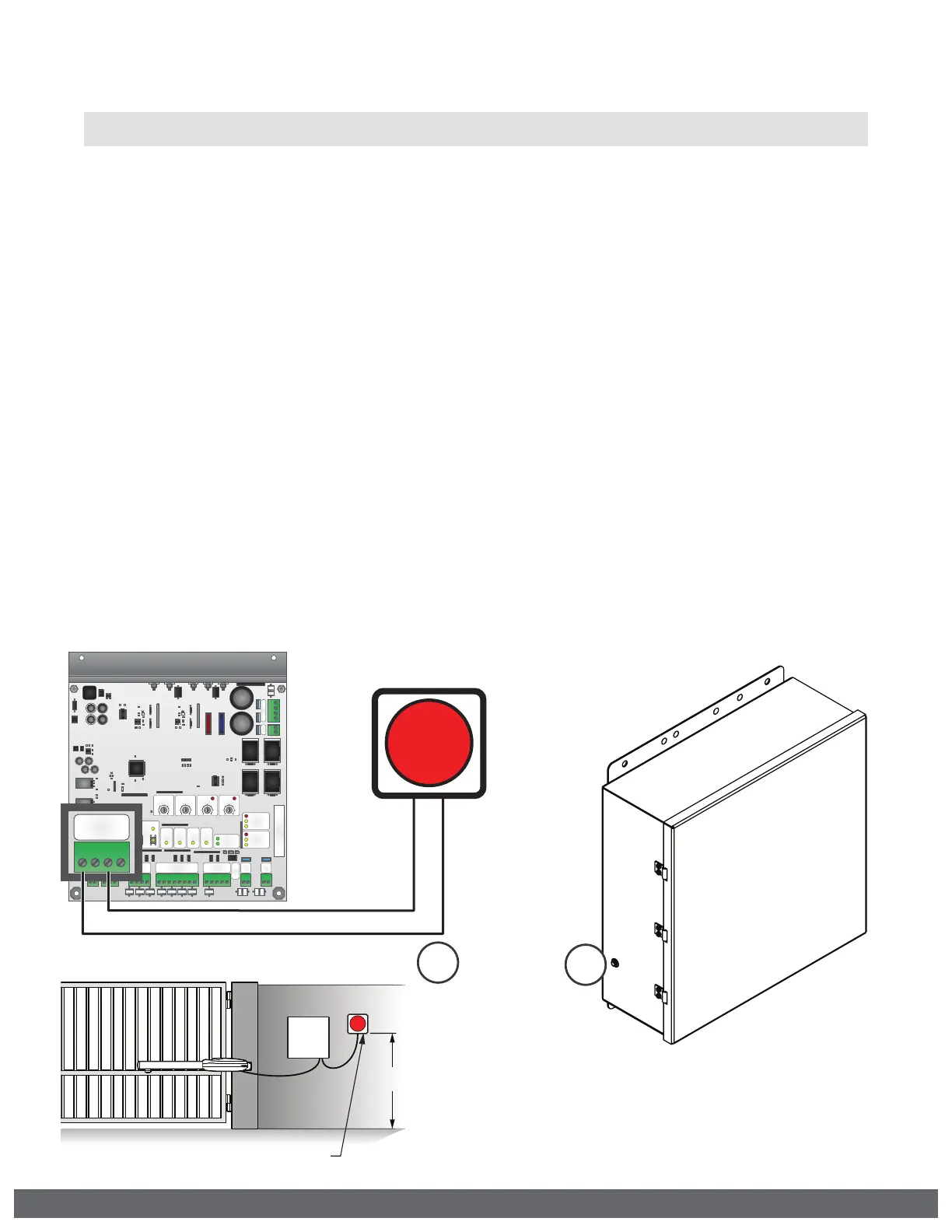

• The Stop command can be actuated in three different forms:
1. Using the Built in Stop switch on the Control Board; or
2. Using an External Stop button within the sight of the gate, away from moving
parts of the gate and out of reach of children.
a. Controls intended for user activation must be located at least six feet (6’)
away from any moving part of the gate and where the user is prevented from
reaching over, under, around, or through the gate to operate the controls.
Outdoor or easily accessible controls shall have a security feature to prevent
unauthorized use.
b. The Stop and/or Reset button must be located in the line-of-sight of the gate.
Activation of the reset control shall not cause the operator to start.
3. Using the Reset Button on the Electronic Control Unit that is externally
accessible on the left side of the cabinet.
IMPORTANT SAFETY INFORMATION
! WARNING! Not Following these instructions may cause severe injury or death.
Manual Stop
Button
5'
Minimum
STOP
2
