GATE OPERATOR INSTALLATION

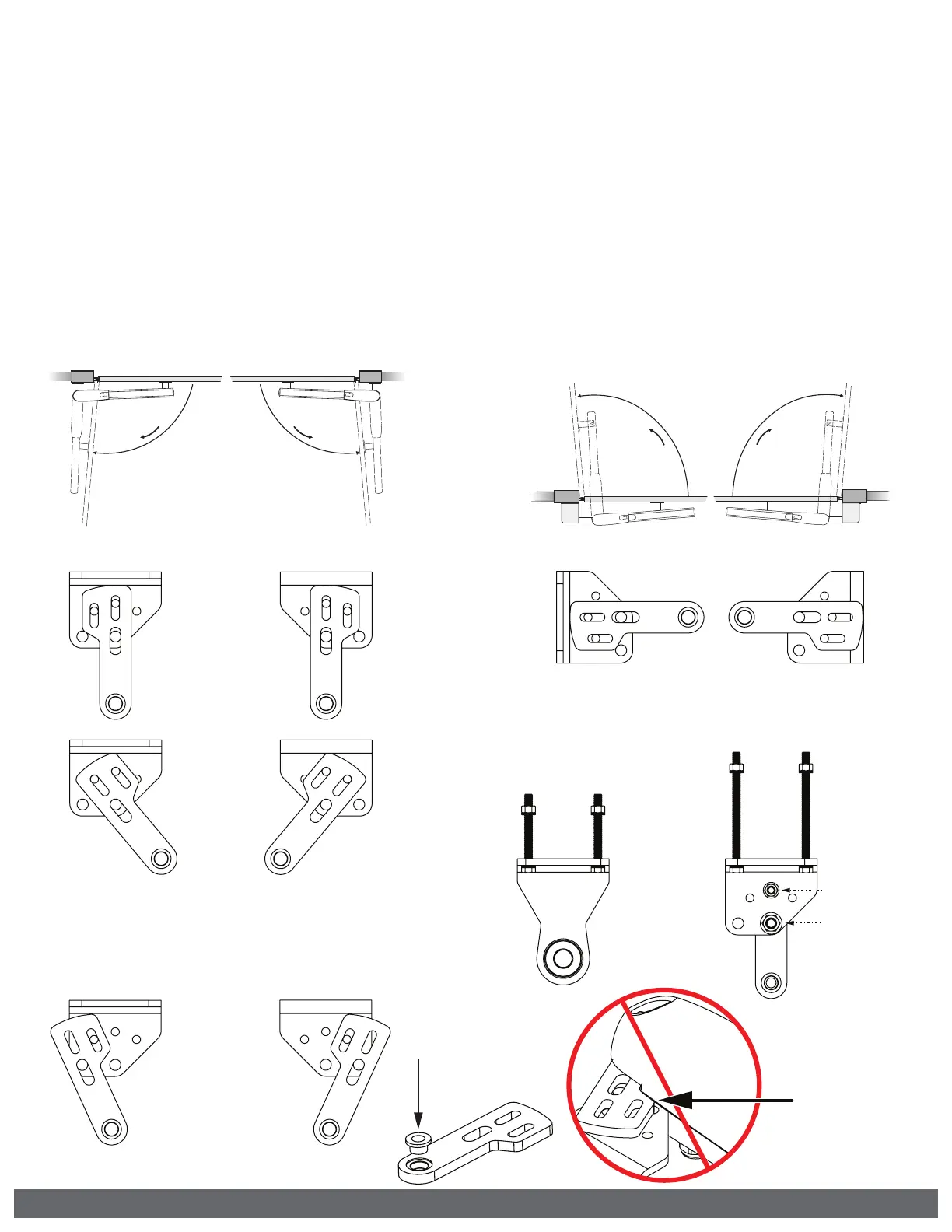

Rear Mounting Bracket
The following configurations are just samples that indicate the flexibility of this bracket.
•
The gate hinge location will determine the configuration you will choose to achieve
the A and B dimensions on pages 12-13.
•
When possible, it is best to use all 3 Bolts provided to secure the Extension Bracket
to the Wall Bracket and torque specifications provided.
TECHNICAL TIP: Multiple configurations can be used to achieve the same A and B dimensions.
110° Open Right
110° Open Left
Pull to Open RightPull to Open Left
Push to Open RightPush to Open Left
Open Open
Open
Open
Check that the Chassis
does NOT contact the
Mounting Bracket when
Gate is closed
33 ft-lb
33 ft-lb
80 ft-lb
33 ft-lb
Torque Specifications:
33 ft-lb
33 ft-lb
Install Rear
Mounting Bushing
To Next Page
