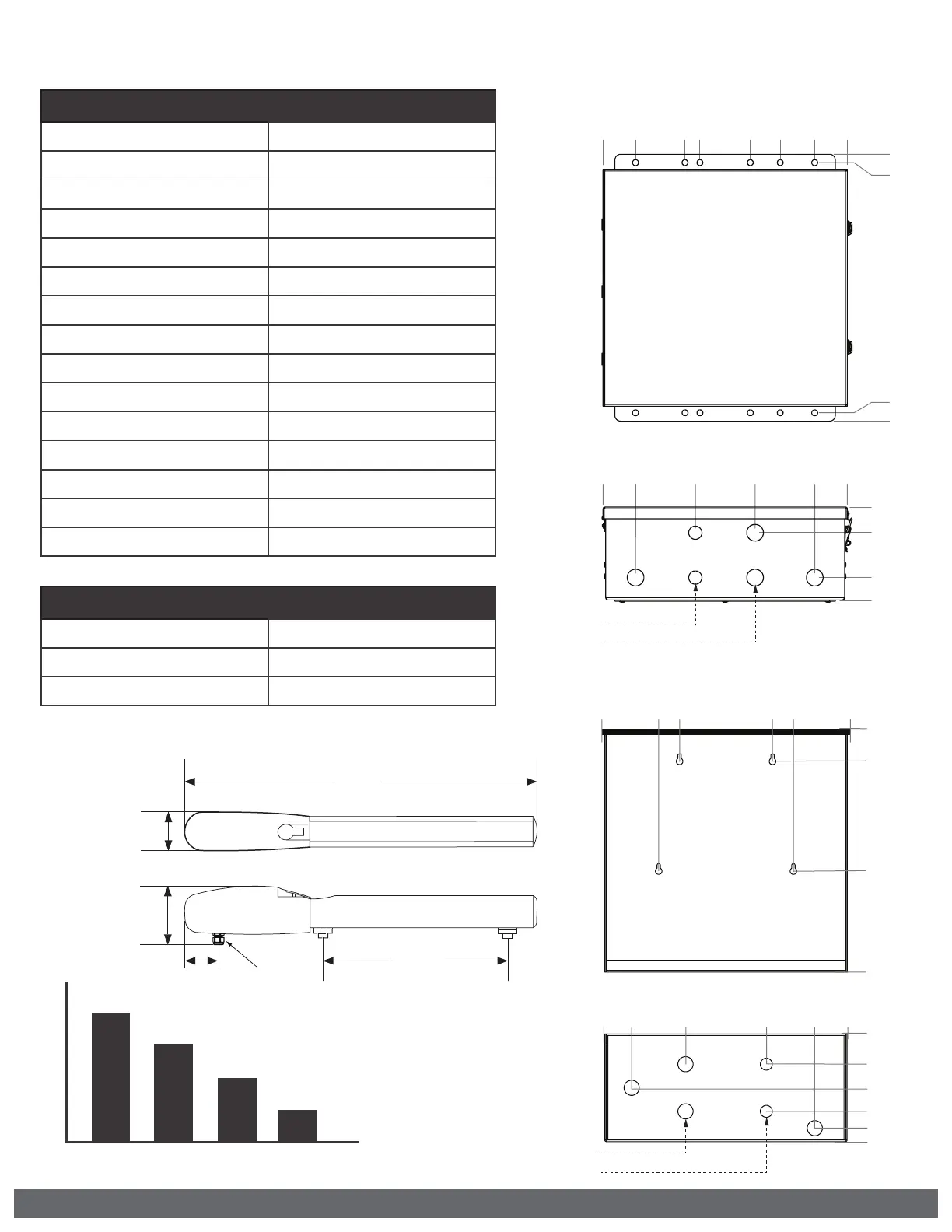

SPECIFICATIONS
SPECIFICATIONS
Max Gate Length 16 Feet *refer to chart
Max Gate Weight 850 lbs *refer to chart
UL 325 Classication Class I *refer to page 5
Duty Cycle 100%
Operating Voltage 24VDC
Main Power Source 120VAC / 240VAC Single Phase
Main Power Current 2.0A / 1.0A (each motor)
Main Power Frequency 50Hz / 60Hz
Main Power Fuse 4.0A Timed
Alternative Power 24VAC/VDC (60VA) or Solar
Accessory Power 24VDC (750mA)
Power Consumption - Sleep 6mA
Motor Current Draw - Typical 3.0A
Operating Temperature -20°F (-28°C) to 160°F (71°C)
Opening Angle 110°
! IMPORTANT: Cable shall be shielded with drain wire.
Connect drain wire to chassis ground of both the Operator
and the ECU.
MOTOR CABLE LENGTH/GAUGE
50 Feet 16 AWG
100 Feet 14 AWG
More than 100 Feet Not Recommended
16”
36⅜”
Max. Stroke
6⅛”
3⅞”
3½”
Strain Relief
750 lb
850 lb
650 lb
550 lb
850 lb
750 lb
650 lb
550 lb
10’1 2’ 14’1 6’
Gate Weight/Length Relationship
10’ 12’ 14’ 16’
LB
FT
0
2¼ 14⅛
16⅜
0
½
17⅜
17⅞
5½ 6½ 9⅞
11⅞
0
2¼ 6⅛
10⅛
14⅛ 16⅜
0
1½
4½
6¼
4x Ø 1"
2x Ø ¾"
Bottom
Front
Standard ECU
0
2
6 12 18
0
1
2¼
4
5¾
8⅛
0 4⅜ 5⅞ 12⅞ 14⅜ 18¾
0
18⅛
7½
15¾
Front
Bottom
15½
Big Box ECU
(OPTIONAL)
4x Ø 1"
2x Ø ¾"
