ECU BOX INSTALLATION
Mounting the ECU Box
! WARNING:
If the control box is not mounted properly it may fall, causing damage and/or
injury. The Electronic Control Unit (ECU) weight is approximately 40 lbs. Be sure that the
substrate being mounted to and the fasteners being used are appropriate to support the
weight of the control box.

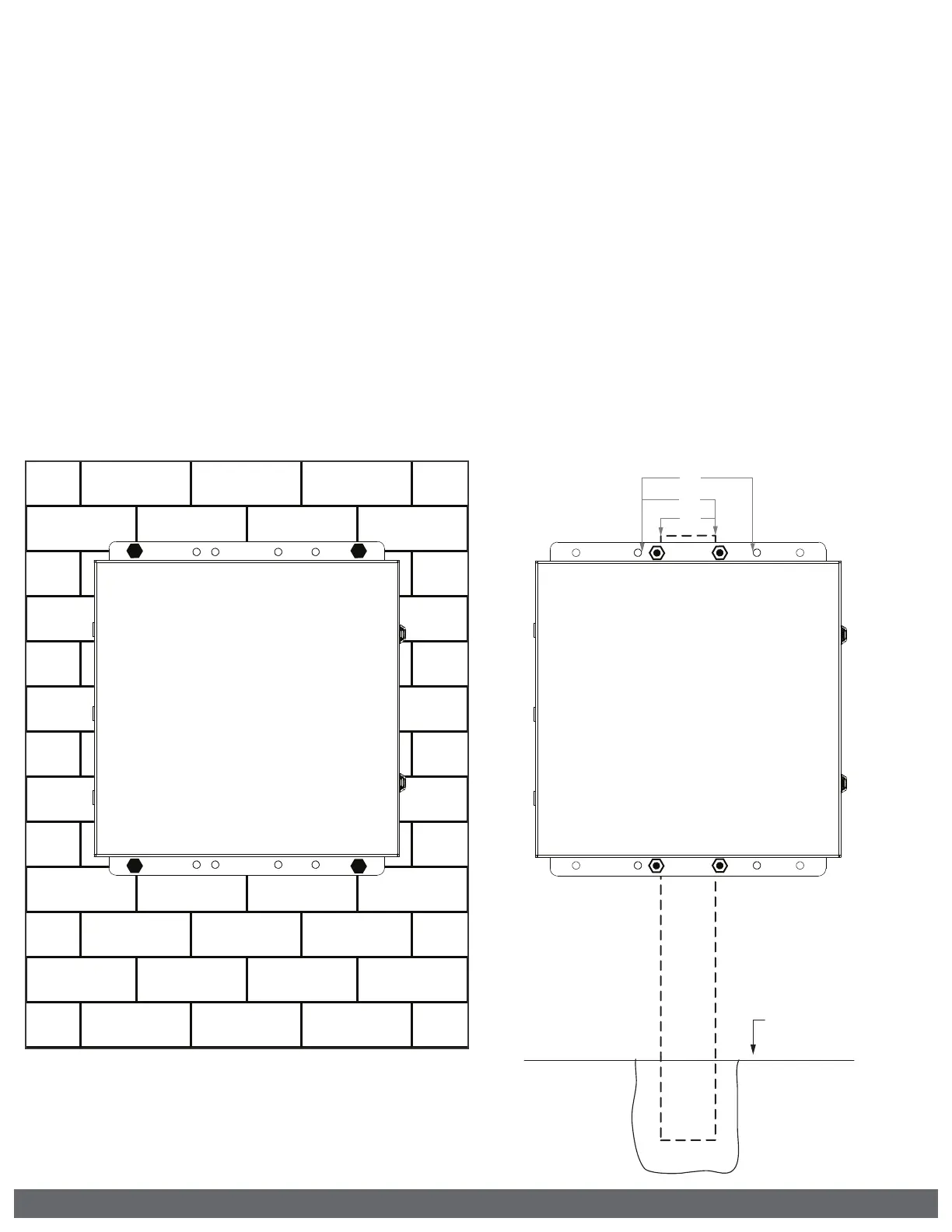

Substrate Mounting Option
•
Hardware is not provided.
•
Use 3/8” hardware.
•
Consult local codes and guidelines.
Grade Level
6”
4”
3”
Post Mounting Option
•
Hardware is not provided.
•
Use 3/8” hardware.
•
3”, 4” or 6” square post.
•
Consult local codes and guidelines.
