Viking RVDR330 Installation Guide

2120
Leveling/Adjustments/Alignments (cont.)

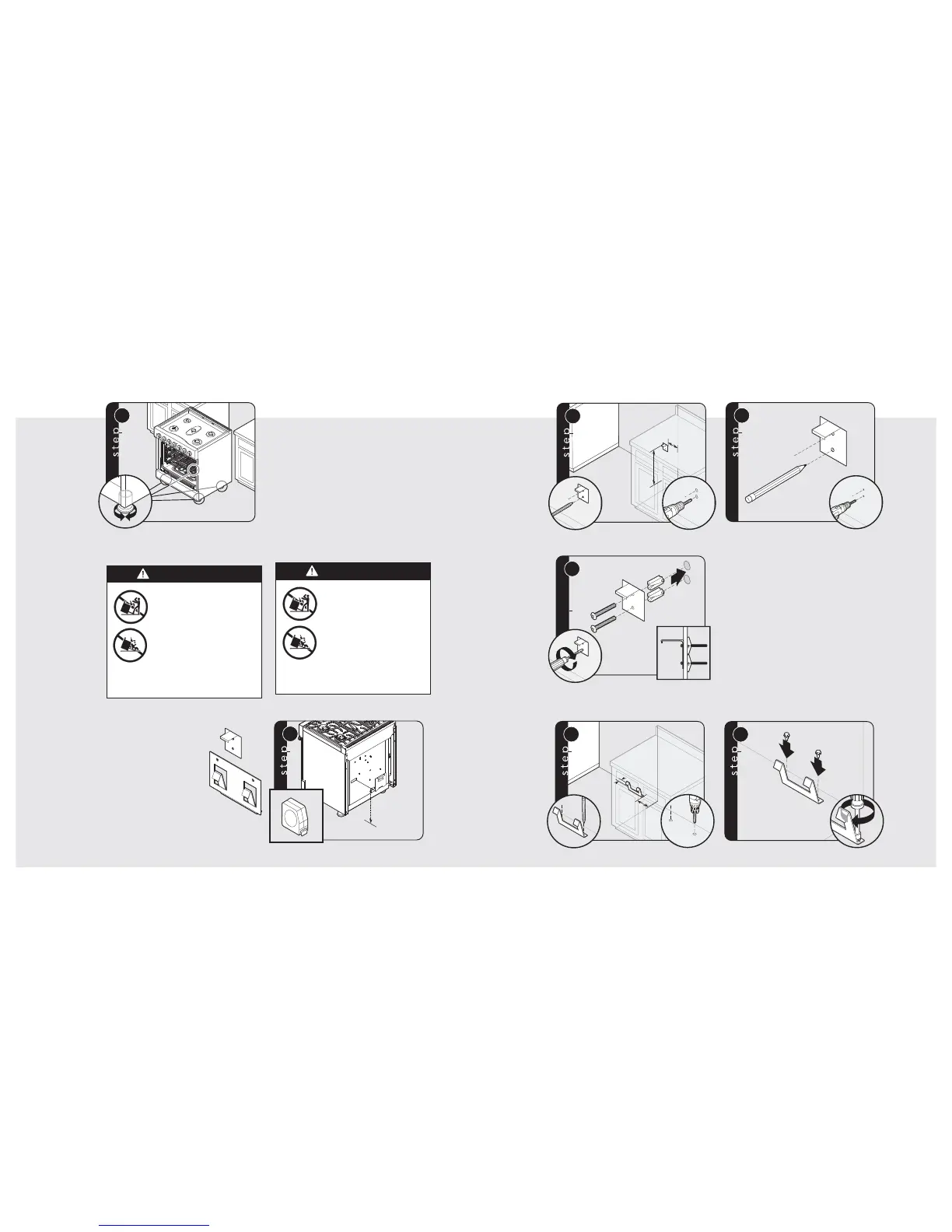

Anti-tip Device Installation
Wall Mount Anti-tip Installation
(cont.)
7
Set the high corner of range so that the top of side trim is
3/8” (0.95 cm) above countertop. Level range to high corner.
Measure from floor to bottom
of the anit-tip opening located on the back of range.
This will be measurement (A).
3
Mark and drill holes where bracket will be located.
paso
4
Attach bracket with
mounting hardware provided.
1
Measurement (A)
2
(A)
(A)
+1/2”
+1/2”
(1.3 cm)
(1.3 cm)
(A)
+1/2”
(1.3 cm)
3-5/8”
3-5/8”
(9.2 cm)
(9.2 cm)
3-5/8”
(9.2 cm)
Locate anti-tip bracket on rear wall with the top left corner at
measurement (A) plus 1/2” (1.3 cm) from the floor and 3-5/8” (9.2 cm)
from where the right side of range (facing range) is to be located.
WARNING
TIPPING HAZARD
• THIS RANGE CAN TIP.
• A CHILD OR ADULT CAN TIP
THE RANGE AND BE KILLED.
• FAILURE TO INSTALL THE
ANTI-TIP DEVICE CAN
RESULT IN DEATH OR
SERIOUS BURNS TO
CHILDREN OR ADULTS.
• IF THE RANGE IS MOVED THEN THE
ANTI-TIP DEVICE MUST BE
RE-ENGAGED.
WARNING
TIPPING HAZARD
To reduce the risk of the
appliance tipping, it must be
secured by a properly installed
anti-tip bracket(s). To make sure
the bracket has been installed
properly, look behind the range
with a flashlight to verify proper
installation engaged in the rear
top left corner of the range or under the range
to verify that a floor hook and bracket have
been installed.
Your range is shipped
standard with two types of
anti-tip devices.
Type 1 is a wall mount device
which can be used for all
installation applications.
Type 2 is a floor mount device
which can be used for all
applications other than when
the range is installed on a concrete sub-floor.
Important: The range MUST be installed
with one of the anti-tip devices.
Wall Mount Anti-tip Installation
1
8-1/2”
8-1/2”
(21.6 cm)
(21.6 cm
)
8-1/2”
(21.6 cm)
Ø 1/8”
Ø
1
/8
”
(.32 cm)
(.3
2
cm)
Ø 1/8”
(.32 cm)
1-1/2”
1-1/2”
(3.8 cm)
(3.8 cm)
1-1/2”
(3.8 cm)
Locate anti-tip bracket hook on the floor 8-1/2” (21.6 cm) from side
cabinet and 1-1/2” (3.8 cm) from rear wall. Mark and
drill 1/8” (.32 cm) holes where bracket will be located.
1
1
2
2
Mount anti-tip bracket hook to floor
using screws provided.
Floor Mount Anti-tip Installation
