Viking RVDR330 Installation Guide

7

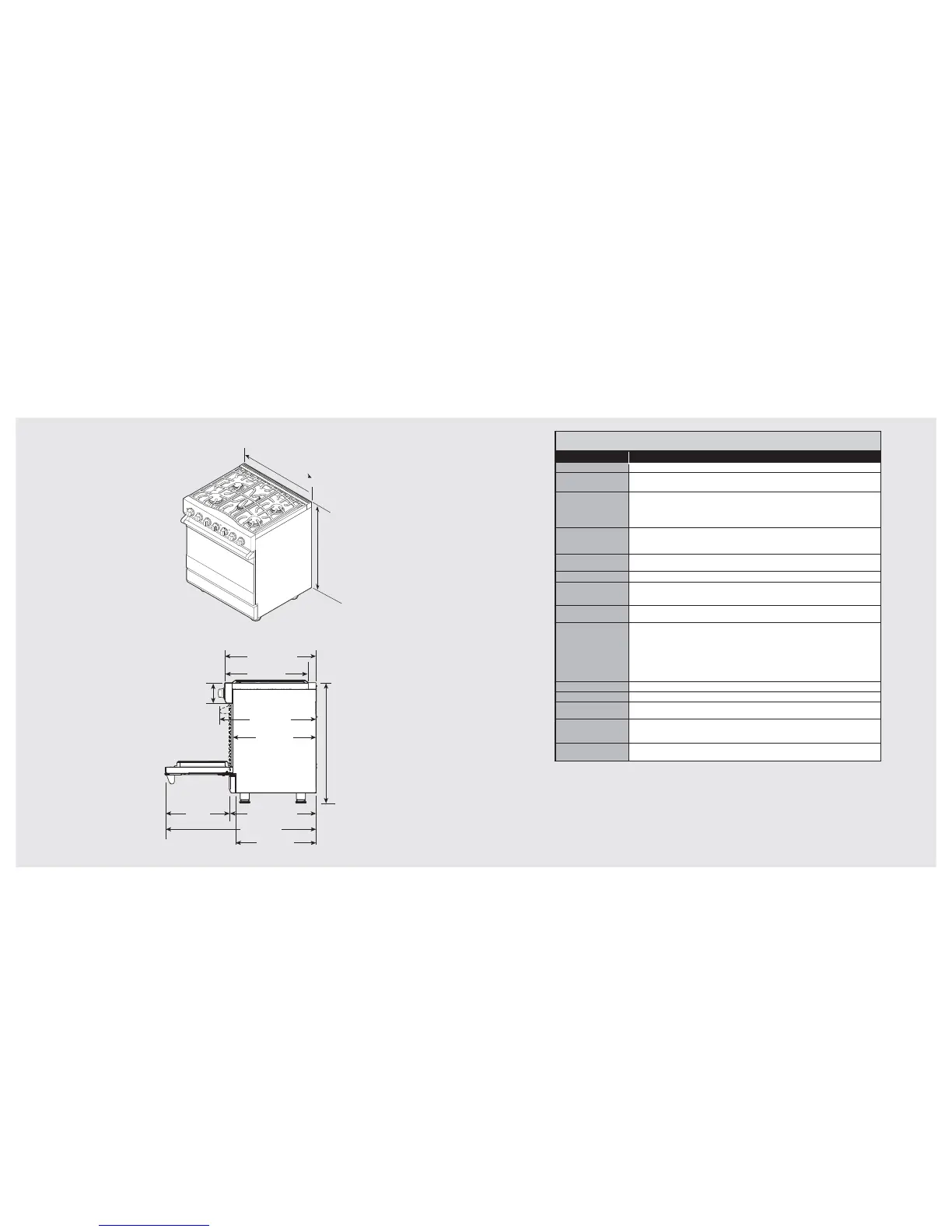

Dimensions
6
Note: Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and not certified by CSA.
Clearances to non-combustible materials must be approved by the authority having jurisdiction.
Minimum clearances from
adjacent combustible construction:
Below cooking surface (36” [91.4 cm] and below)
• Sides - 0”
• Top grate support - 36” (91.4 cm)
Above cooking surface (above 36” [91.4 cm])
• Sides - 6” (15.2 cm)
• Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm)
above cooking surface
• Wall cabinets directly above product must be a minimum of 42” (106.7 cm) above cooking surface
• Rear - 0” with 6 ” backguard or high shelf; 0” with island trim and non-combustible rear wall;
• 6” (15.2 cm) with island trim and combustible rear wall
Dual Fuel 30” W. Range
Description
RVDR
Overall width 29-7/8” (75.9 cm)
Overall height To top of side trim – 35-7/8” (91.1 cm) min. 37” (94.0 cm) max.
Legs adjust – 1-1/8” (2.9 cm)
Overall depth
from rear
To front of side panel – 25” (63.5 cm)
To front of door – 25-3/4” (65.4 cm)
To front of control panel
–
27 1/8" (68.9 cm)
To end of knobs – 29" (73.7 cm)
Additions to Overall
Height
To top of island trim – add 0” (0.0 cm)
To top of backguard – add 6” (15.2 cm)
To top of high shelf – add 18-3/16” (46.2 cm)
Gas Requirements Shipped standard for Natural gas, field convert with LP conversion kit included with
each unit; Accepts standard residential 1/2” (1.3 cm) ID gas service line
Gas Manifold Pressure Natural 5.0” W.C.P./ Liquid Propane L/P 10.0” W.C.P.
Electrical Requirements 240-208 VAC 60 Hz electrical connection box on product, connect with locally supplied
3-wire, flexible cord or “pigtail” rated 40 amp. 125-250 VAC minimum. Cord must be
agency approved for use with household electric ranges.
Max Amp Usage
240V
–
25.4 amps
208V
–
22.9 amps
Surface Burner Rating
Natural/LP
Left front
Left rear
Center
Right rear
Right front
18,000 BTU Nat/15,800 BTU LP/Propane (5.3 kW Nat/4.8 kW LP/Propane)
8,000 BTU Nat/7,200 BTU LP/Propane (2.3 kW Nat/1.9 kW LP/Propane)
9,000 BTU Nat/8,000 BTU LP/Propane (2.7 kW Nat/2.3 kW LP/Propane)
12,000 BTU Nat/10,800 BTU LP/Propane (3.5 kW Nat/3.2 kW LP/Propane)
18,000 BTU Nat/15,800 BTU LP/Propane (5.0 kW Nat/4.4 kW LP/Propane)
Oven Interior Width 25-5/16” (64.6 cm)
Oven Interior Height 16-1/2” (41.9 cm)
Oven Interior Depth Overall – 19-1/2” (49.5 cm)
AHAM – 16-13/16” (42.7 cm)
Oven Volume
Overall
AHAM
4.7 cu. ft.
4.1 cu. ft.
Approximate
shipping weight
410 lbs.
(184.5 kg)
Specifications
29-7/8”
(75.9 cm)
35-7/8”
(91.1 cm) min.
to
37”
(94
.0 cm) max.
Dual Fuel 30” W. Range
35-7/8”
(91.1 cm) min.
to
37”
(94 cm) max.
25-3/4” (65.4 cm)
45” (114.3 cm)
19-1/4”
(48.9 cm)
24” (610cm)
25” (63.5 cm)
29” (73.7 cm)
6”
(15.2 cm)
25” (63.5 cm)
27-1/8” (68.9 cm)
Note: Units shown with standard 6” backguard.
