Viking VCFB304 - Dual 30 Designer Anti-Tip Dimensions

79–3/8”
(201.6 cm) min
to bottom of
anti-tip board
80–1/2”
(204.6 cm) max
to bottom of
anti-tip board
One 2”x 4” Mounting Board Per Unit
1–1/2” (3.8 cm) x 3 1/2” (8.9 cm)
Note: If unit is installed deeper than 24” (61.0 cm), then shim
behind the mounting boards by the difference.
Bottom of anti-tip board is 3–7/8” (9.8 cm) below opening height.
Note: Top of unit must be placed firmly under anti-tip board.

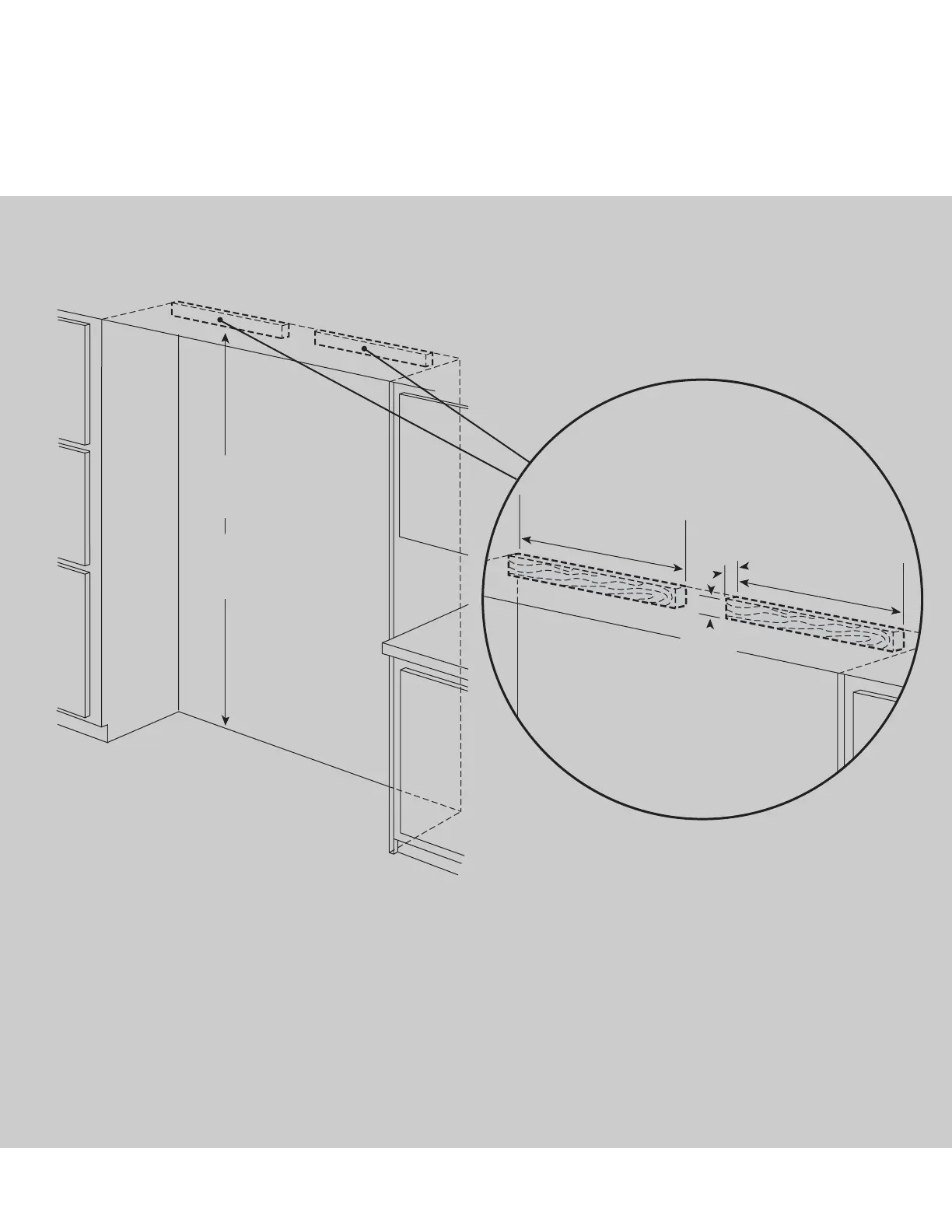

Anti-Tip Location
23”
(58.4 cm)
3–1/2”
(8.9 cm)
1 1/2”
(3.
8 cm)
23”
(58.4 cm)
Anti-Tip Dimensions
(Designer All Refrigerator/Freezer)
33
Dual 30” Designer
